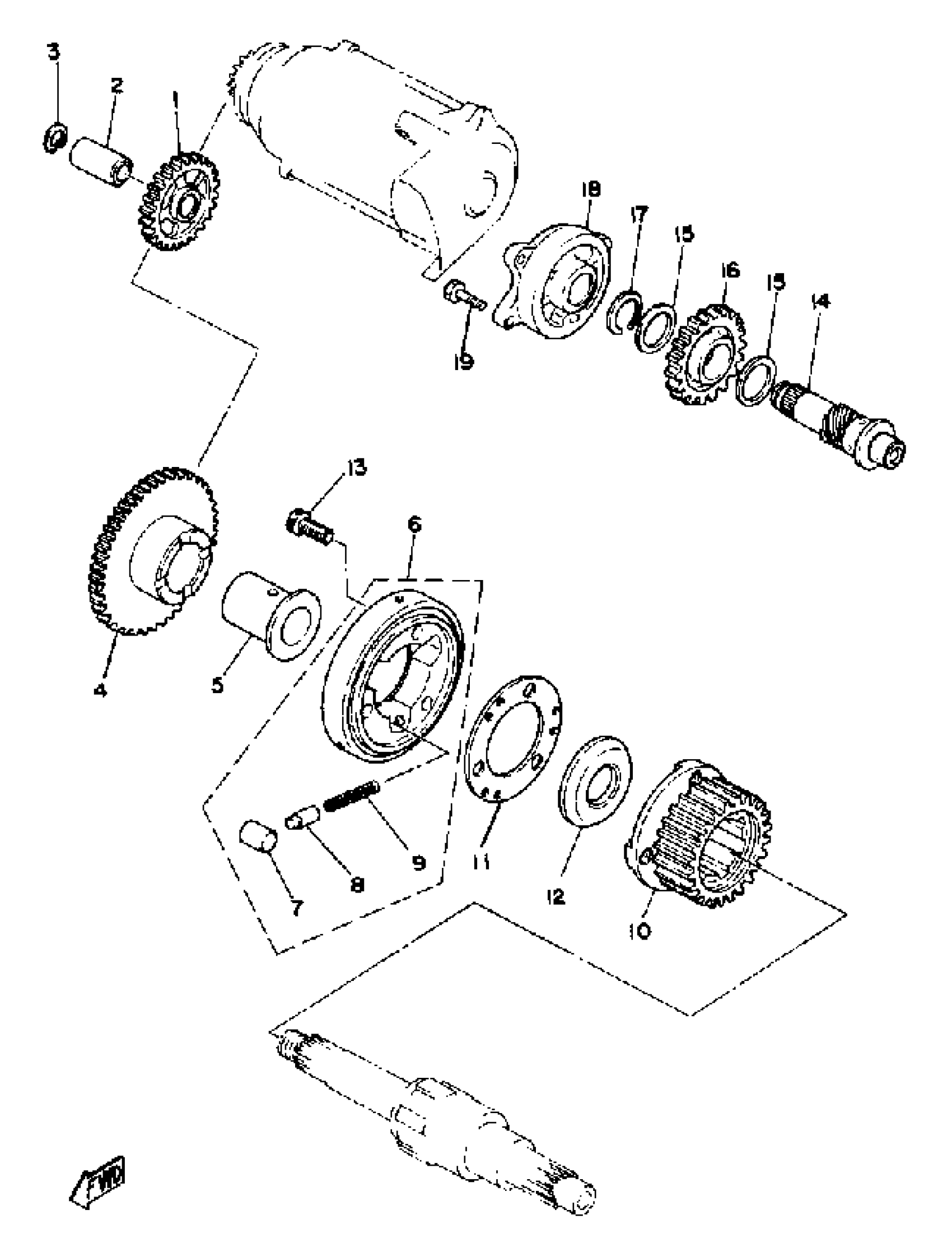

Yamaha XS1100LG (XS1100L) 1980 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

2H7-15512-00-00

Unavailable

2

SHAFT 1

(2H7-15521-00-00)

Unavailable

3

CIRCLIP(24H)

99009-17500-00

$7.49

4

GEAR, IDLER 2

2H7-15517-00-00

Unavailable

5

SPACER

90560-25174-00

Unavailable

6

STR CLUTCH OTR ASSEMBLY

2H7-15580-01-00

Unavailable

7

PIN, DOWEL (1J7)

93615-17125-00

$16.99

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

9

SPRING, COMPRESSION (2H7)

90501-04503-00

$9.49

10

GEAR, DRIVEN

2H7-11537-00-00

Unavailable

11

PLATE, CLUTCH COVER

(2H7-15589-00-00)

Unavailable

12

WASHER, SPEC''L SHAP

90209-25169-00

Unavailable

13

BOLT, SOCKET HEAD

91316-08018-00

Unavailable

14

KICK-SHAFT CMPLT 2

(2H7-W1565-00-00)

Unavailable

15

WASHER, PLATE(59W)

90201-253K0-00

$8.49

16

GEAR 3

(2H7-15515-00-00)

Unavailable

17

CIRCLIP (4L0)

93440-25084-00

Unavailable

18

HOLDER, KICK GEAR

2H7-15654-00-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable
