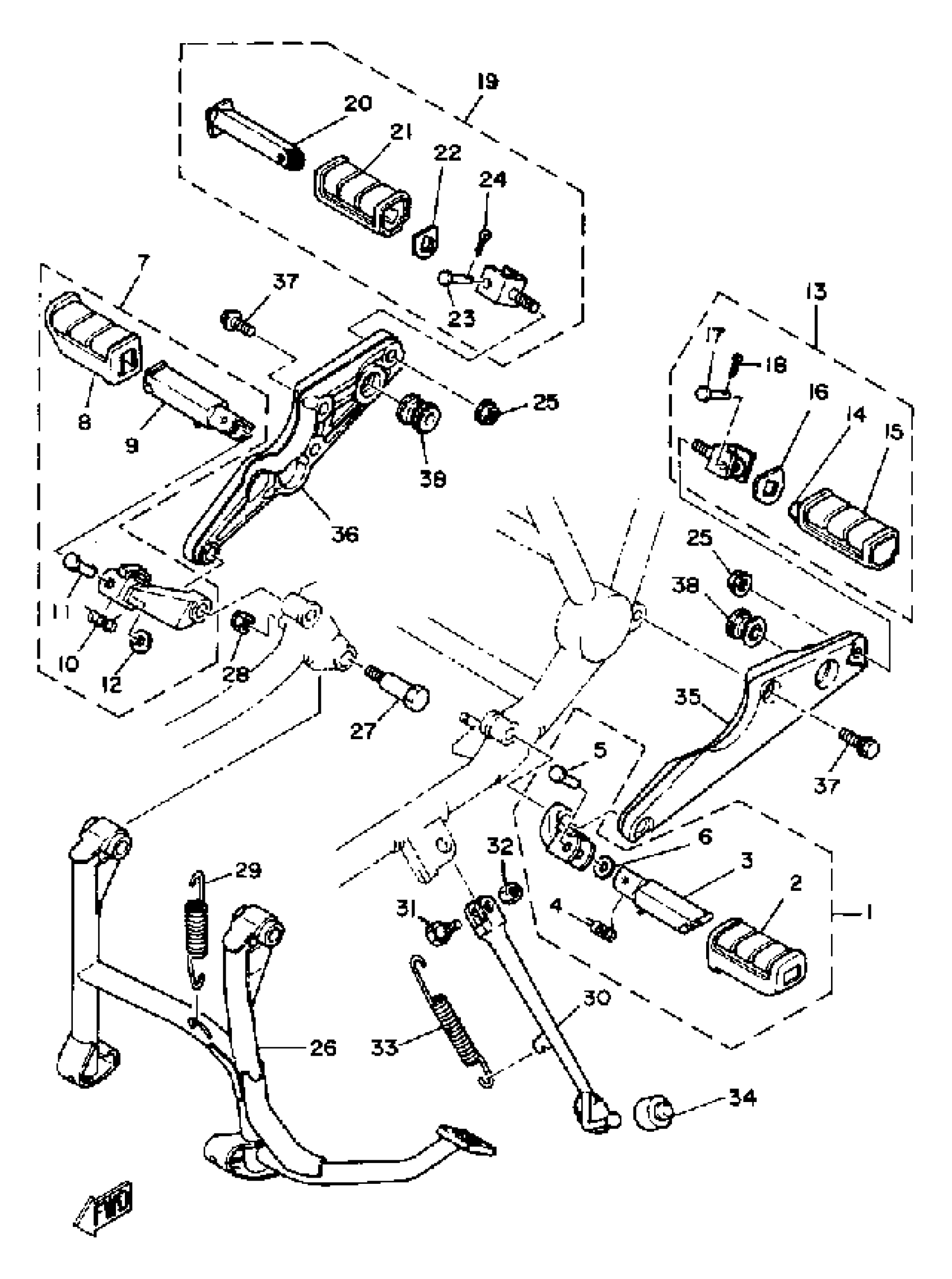

Yamaha XS1100LG (XS1100L) 1980 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L (L.H.)

2H7-27410-00-00

Unavailable

2

. COVER, FOOTREST

3H5-27413-01-00

Unavailable

3

. FOOTREST

3H5-27451-00-00

Unavailable

4

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

5

PIN (214-27418-00)

90243-08006-00

$12.49

6

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

7

FRT FOOTREST ASSEMBLY R (R.H.)

2H7-27420-00-00

Unavailable

8

. COVER, FOOTREST

3H5-27413-01-00

Unavailable

9

. FOOTREST

3H5-27461-00-00

Unavailable

10

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

11

PIN (214-27418-00)

90243-08006-00

$12.49

12

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

13

RR FOOTREST ASSEMBLY 1

4H3-27430-00-00

Unavailable

14

. FOOTREST, REAR 1

4X7-27431-00-00

Unavailable

15

. COVER, REAR FOOTREST

3H5-27433-00-00

Unavailable

16

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

17

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

18

PIN, COTTER

91490-16020-00

Unavailable

19

RR FOOTREST ASSEMBLY 2

2H7-27440-00-00

Unavailable

20

. FOOTREST, REAR 2

4X7-27441-00-00

Unavailable

21

. COVER, REAR FOOTREST

3H5-27444-00-00

Unavailable

22

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

23

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

24

PIN, COTTER

91490-16020-00

Unavailable

25

NUT(4KG)

90179-10658-00

Unavailable

26

STAND, MAIN

3H3-27111-01-00

Unavailable

27

BOLT

90109-10440-00

Unavailable

28

NUT, U

95617-10100-00

Unavailable

29

SPRING, TENSION

90506-45199-00

Unavailable

30

STAND, SIDE

(3H3-27311-00-00)

Unavailable

31

BOLT

90109-10473-00

Unavailable

32

NUT (682)

95380-10700-00

Unavailable

33

SPRING, TENSION (1J7)

90506-28146-00

Unavailable

34

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

35

BRACKET 2

(4H3-27442-00-00)

Unavailable

36

BRACKET 3

4H3-27443-00-00

Unavailable

37

BOLT

4H3-27434-00-00

Unavailable

38

DAMPER, FOOTREST

3H3-27414-00-00

Unavailable
