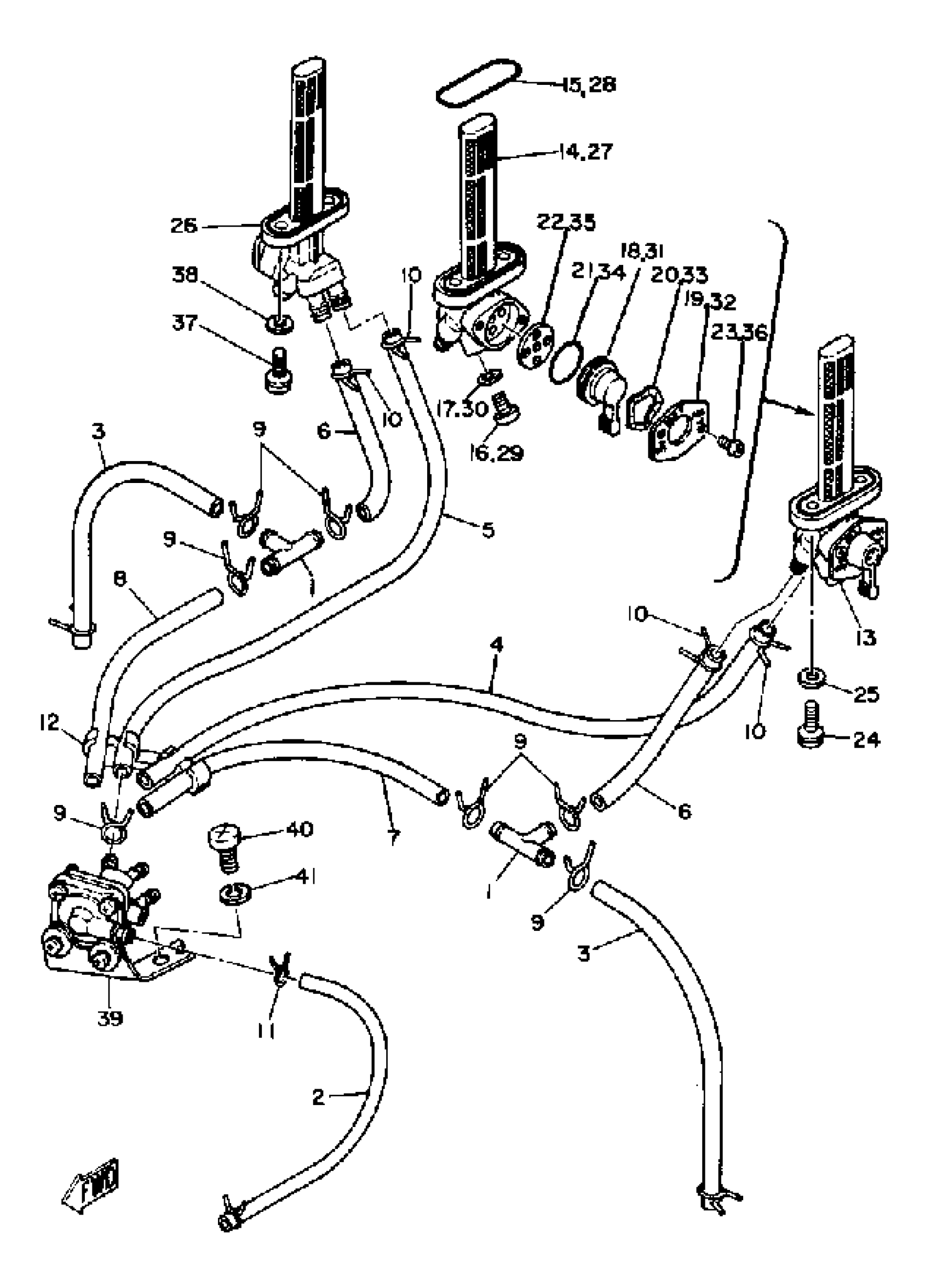

Yamaha XS1100LG (XS1100L) 1980 FUEL COCK PIPING Diagram

#

Description
Price

1

PIPE, JOINT

3H3-24376-00-00

$8.99

2

HOSE (L200)

90445-07176-00

$7.60

3

HOSE (L400)

90445-116K9-00

$24.99

4

HOSE (L450)

90445-10144-00

$7.49

5

HOSE (L450)

90445-10144-00

$7.49

6

HOSE

90445-10365-00

Unavailable

7

HOSE (L450)

90445-10144-00

$7.49

8

HOSE (L450)

90445-10144-00

$7.49

9

CLIP

90467-090A2-00

$4.41

10

CLIP (3G0)

90467-10039-00

$9.49

11

CLIP (1J7)

90467-07029-00

$2.39

12

CLAMP, FUEL PIPE 1

(3H3-24366-00-00)

Unavailable

13

FUEL COCK ASSEMBLY 1

3H3-24500-01-00

Unavailable

14

NET, FILTER 1

3Y1-24514-00-00

$46.99

15

O-RING

2W6-24512-00-00

$7.99

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

. GASKET

3H3-24522-00-00

Unavailable

18

LEVER, COCK

(4H3-24524-00-00)

Unavailable

19

PLATE, LVR FITTING

(4H3-24525-00-00)

Unavailable

20

WASHER, WAVE

10L-24518-00-00

Unavailable

21

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

22

VALVE, FUEL COCK

3H3-24523-00-00

Unavailable

23

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

24

SCREW, LVR FITTING

(4H3-24535-00-00)

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

26

FUEL COCK ASSEMBLY 2

3H3-24510-01-00

Unavailable

27

NET, FILTER 1

3Y1-24514-00-00

$46.99

28

O-RING

2W6-24512-00-00

$7.99

29

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

30

. GASKET

3H3-24522-00-00

Unavailable

31

LEVER, COCK

(4H3-24524-10-00)

Unavailable

32

PLATE, LVR FITTING

(4H3-24525-10-00)

Unavailable

33

WASHER, WAVE

10L-24518-00-00

Unavailable

34

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

35

VALVE, FUEL COCK

3H3-24523-00-00

Unavailable

36

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

37

SCREW, LVR FITTING

(4H3-24535-00-00)

Unavailable

38

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

39

DIAPHRAGM ASSEMBLY

3H3-24520-01-00

Unavailable

40

SCREW, PAN HEAD

98580-08016-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
