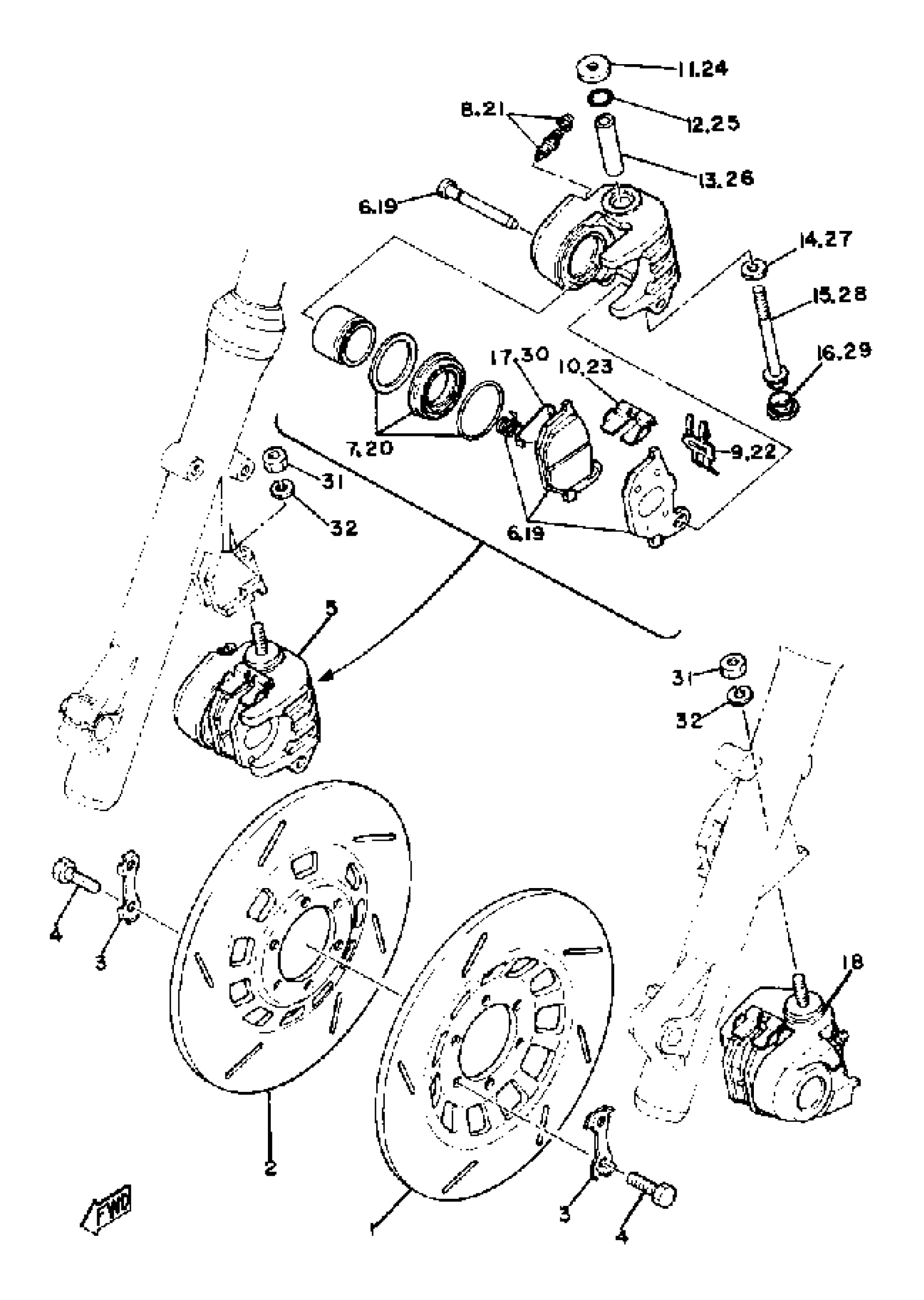

Yamaha XS1100LG (XS1100L) 1980 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

DISC, BRAKE

(4H3-25831-10-00)

Unavailable

2

DISC, BRAKE

4H3-25831-00-00

Unavailable

3

WASHER, LOCK

1J3-25834-01-00

$6.99

4

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

5

CALIPER ASSEMBLY RH

(3J6-25810-02-00)

Unavailable

6

BRK PAD KIT

4W1-W0046-09-00

Unavailable

7

CALIPER SEAL KIT

2G2-W0047-03-00

$40.99

8

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

9

. SUPPORT, PAD

2G2-25919-00-00

Unavailable

10

. RETAINER, CALIPER

2G2-25849-01-00

Unavailable

11

. WASHER, PLATE

90201-08689-00

Unavailable

12

. O-RING KIT, CALIPER

2G2-W0044-00-00

Unavailable

13

. SLEEVE, CALIPER

2G2-25838-00-00

Unavailable

14

. WASHER, PLATE

90201-09690-00

Unavailable

15

. BOLT 1

2G2-25821-00-00

Unavailable

16

. PLUG

2G2-25916-00-00

Unavailable

17

SHIM, CALIPER

(3J6-25827-00-00)

Unavailable

18

CALIPER ASSEMBLY LH (LEFT) (4H7-25810-11)

4H7-25810-12-00

Unavailable

19

BRK PD KT FRT

4H7-W0045-09-00

Unavailable

20

CALIPER SEAL KIT

2G2-W0047-03-00

$40.99

21

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

22

. SUPPORT, PAD

2G2-25919-00-00

Unavailable

23

. RETAINER, CALIPER

2G2-25849-01-00

Unavailable

24

. WASHER, PLATE

90201-08689-00

Unavailable

25

. O-RING KIT, CALIPER

2G2-W0044-00-00

Unavailable

26

. SLEEVE, CALIPER

2G2-25838-00-00

Unavailable

27

. WASHER, PLATE

90201-09690-00

Unavailable

28

. BOLT 1

2G2-25821-00-00

Unavailable

29

. PLUG

2G2-25916-00-00

Unavailable

30

SHIM, CALIPER

(3J6-25827-10-00)

Unavailable

31

NUT(6L2)

95333-08600-00

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
