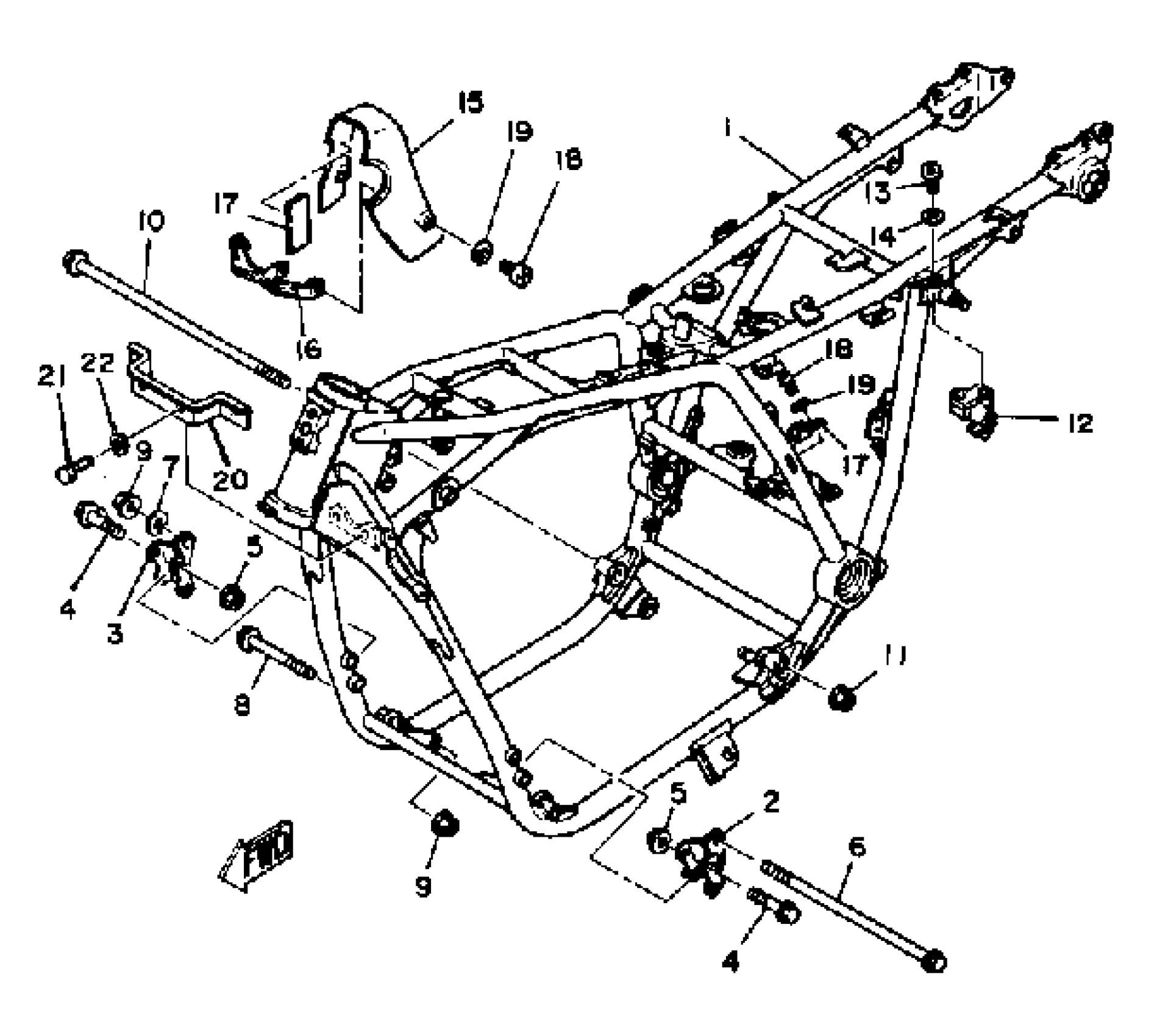

Yamaha XS1100LG (XS1100L) 1980 FRAME Diagram

#

Description
Price

1

FRAME

(4H3-21110-00-98)

Unavailable

2

STAY, ENGINE 2

(4H3-21315-00-00)

Unavailable

3

STAY, ENGINE 3

(4H3-21316-00-00)

Unavailable

4

BOLT, WASHER BASED

90105-08107-00

Unavailable

5

NUT

(4H3-21293-00-00)

Unavailable

6

BOLT, ENGINE MOUNTING

90105-10056-00

Unavailable

7

WASHER(6TA)

92907-10100-00

$8.49

8

BOLT, ENG MNTNG 3

4H3-21483-00-00

Unavailable

9

NUT

(4H3-21295-00-00)

Unavailable

10

BOLT, ENG MNTNG 4

(4H3-21484-00-00)

Unavailable

11

NUT

(4H3-21494-00-00)

Unavailable

12

HELMET HANGER ASSEMBLY

2H7-21308-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.78

14

WASHER, SPRING

92907-06100-00

$4.25

15

COVER 2

(4H3-2139R-00-00)

Unavailable

16

BRACKET, COVER

(3H3-2139T-00-00)

Unavailable

17

DAMPER 2

(3H3-2139U-00-00)

Unavailable

18

SCREW, PAN

98517-05012-00

Unavailable

19

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

20

STAY, HORN

3J6-2134Y-01-00

Unavailable

21

BOLT, HEXAGON

97017-08016-00

Unavailable

22

WASHER(JN5)

92907-08100-00

Unavailable
