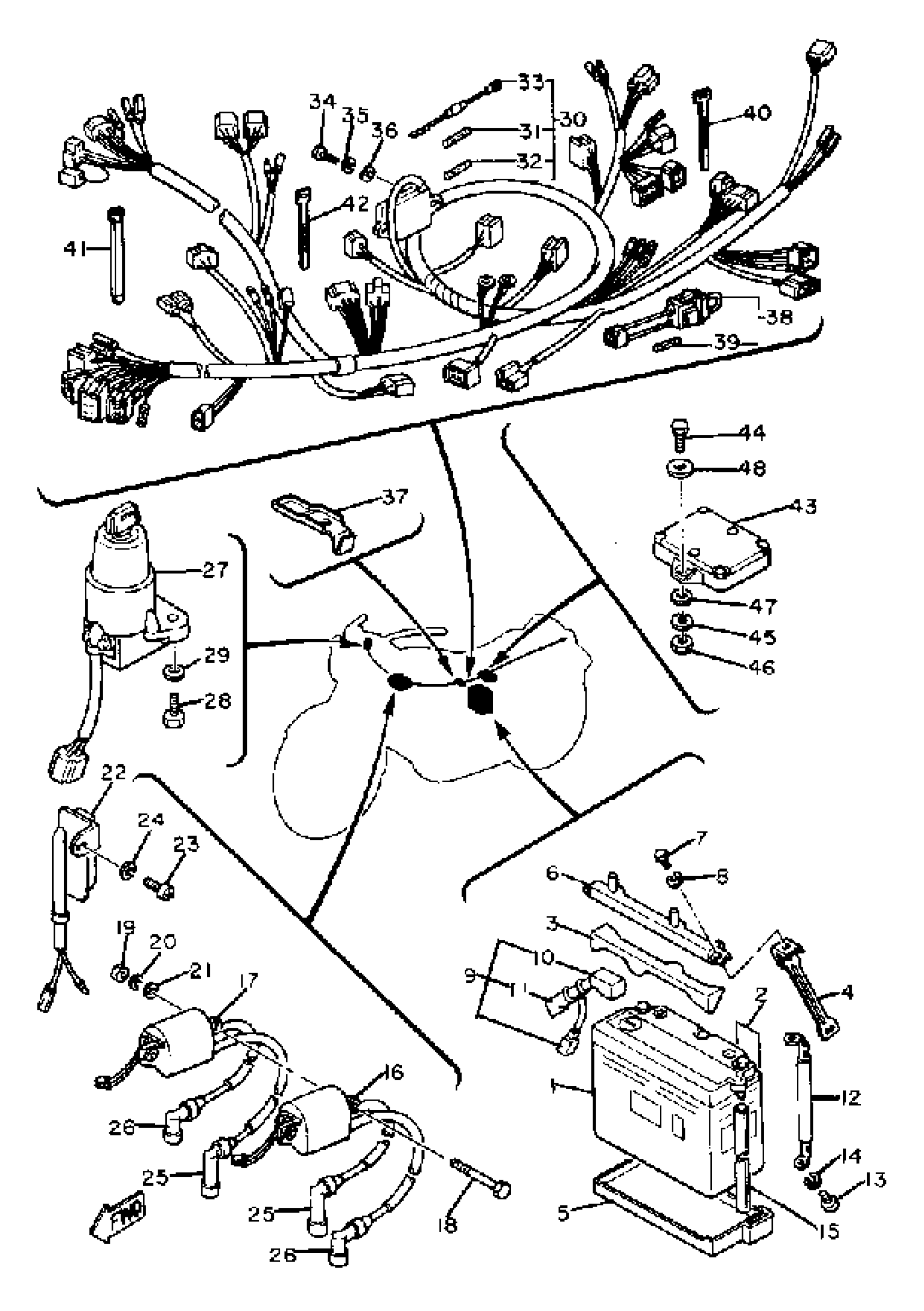

Yamaha XS1100LG (XS1100L) 1980 ELECTRICAL 1 Diagram

#

Description
Price

1

SY50N18LAT YUASA BATTERY

SY5-0N18L-A0-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

PAD, BATTERY

2H7-82121-00-00

Unavailable

4

BAND, BATTERY

2H7-82124-00-00

Unavailable

5

SEAT, BATTERY

2H7-82122-01-00

Unavailable

6

PLATE, BATT FITTING

(2H7-82136-00-00)

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WIRE, PLUS LEAD

2H7-82115-00-00

Unavailable

10

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

11

. COVER, LEAD WIRE

2H7-82119-00-00

Unavailable

12

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

HOSE (L1500)

90445-084J0-00

$18.99

16

IGNITION COIL ASSEMBLY

2H7-82310-60-00

Unavailable

17

IGNITION COIL ASSEMBLY

2H7-82320-60-00

Unavailable

18

BOLT (36E)

97023-06085-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

RESISTOR ASSEMBLY

2H7-85370-01-00

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

26

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

27

MAIN SWITCH ASSEMBLY (24M-82501-50)

4R0-82508-50-00

Unavailable

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

WIRE HARNESS ASSEMBLY

(3J6-82590-50-00)

Unavailable

31

FUSE

1A0-82151-00-00

Unavailable

32

FUSE

1A0-82161-00-00

Unavailable

33

RECTIFIER 2

3H5-81980-00-00

Unavailable

34

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

WASHER, PLAIN (646)

92990-05600-00

Unavailable

37

CLAMP

(90465-10133-00)

Unavailable

38

FUSE HOLDER ASSEMBLY

3H5-82150-00-00

Unavailable

39

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

40

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

41

BAND

341-26397-01-00

Unavailable

42

BAND, SWITCH CORD

437-83936-11-00

Unavailable

43

IGNITOR UNIT ASSEMBLY 1

2H7-82305-10-00

Unavailable

44

BOLT, HEXAGON

97017-06020-00

$4.06

45

WASHER, SPRING

92995-06100-00

Unavailable

46

NUT, HEXAGON

95380-06600-00

Unavailable

47

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

48

WASHER, PLATE

90201-06095-00

Unavailable
