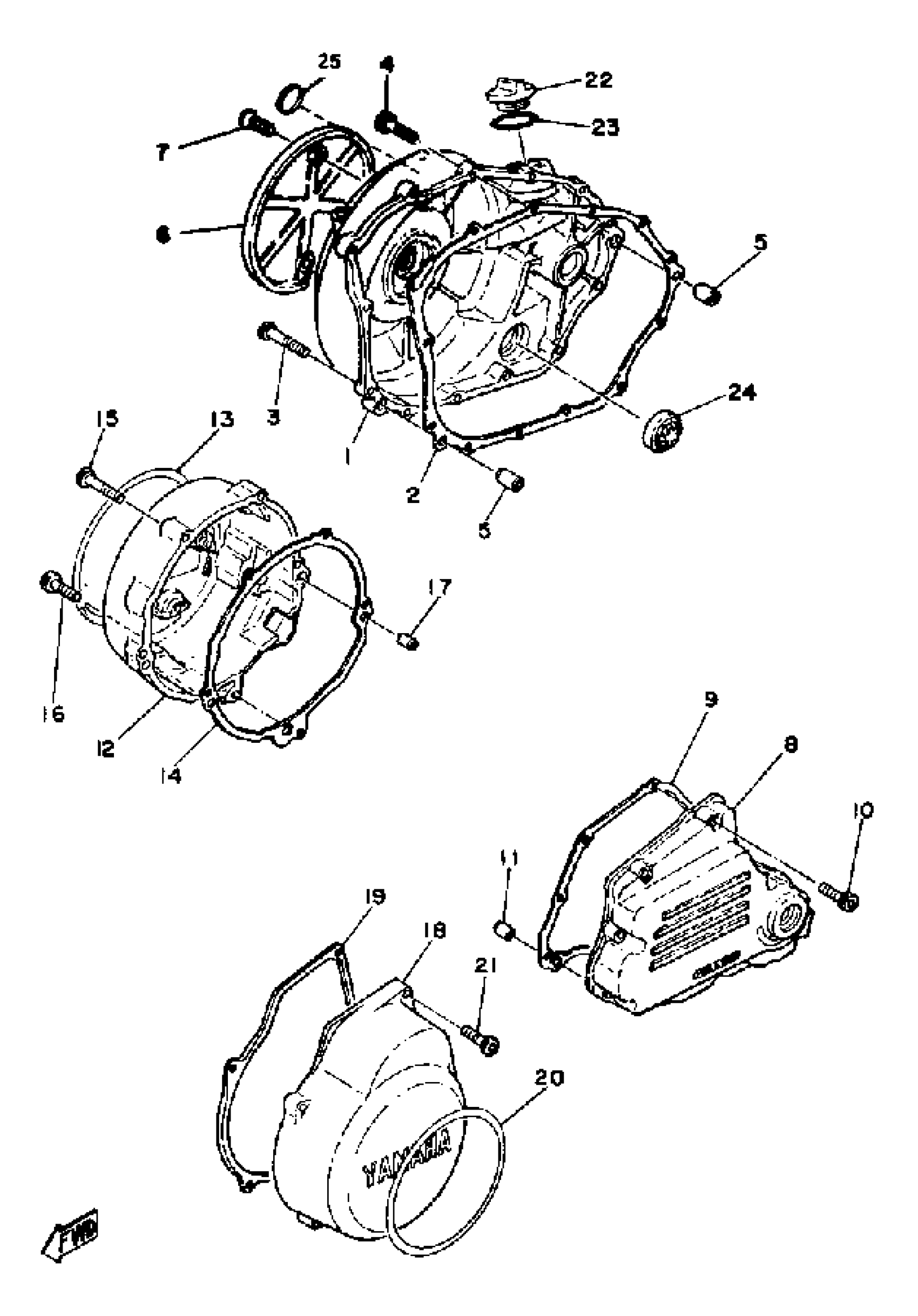

Yamaha XS1100LG (XS1100L) 1980 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 3 (2H7-17411-00)

4H3-15431-00-00

Unavailable

2

GASKET, CRANKCASE COVER (R.H)

2H7-15451-10-00

$30.99

3

BOLT,SOCKET

91317-06035-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

COVER, CAP

4H3-15417-00-00

Unavailable

7

SCREW, FLAT

98707-06018-00

$6.99

8

COVER, CRANKCASE L

4H3-15411-00-00

Unavailable

9

GASKET, CRCS CVR 2

2H7-15461-10-00

Unavailable

10

BOLT,SOCKET

91317-06025-00

$5.60

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

COVER, GENERATOR (4H3-15415-00)

5K7-15415-00-00

Unavailable

13

EMBLEM

4H1-15443-00-00

Unavailable

14

GASKET 1

2H7-15455-10-00

Unavailable

15

BOLT,SOCKET

91317-06035-00

Unavailable

16

BOLT,SOCKET

91317-06025-00

$5.60

17

PIN, DOWEL(3XW)

91808-16023-00

$8.49

18

COVER, OIL PUMP (4H3-15416-00)

4W1-15416-00-00

Unavailable

19

GASKET,O/PMP CVR1

2H7-15456-10-00

Unavailable

20

EMBLEM

4H1-15443-00-00

Unavailable

21

BOLT,SOCKET

91317-06025-00

$5.60

22

PLUG, OIL

2H9-15363-00-00

Unavailable

23

O-RING(1KT)

93210-27778-00

Unavailable

24

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

25

PLUG (3L3)

90338-30096-00

Unavailable
