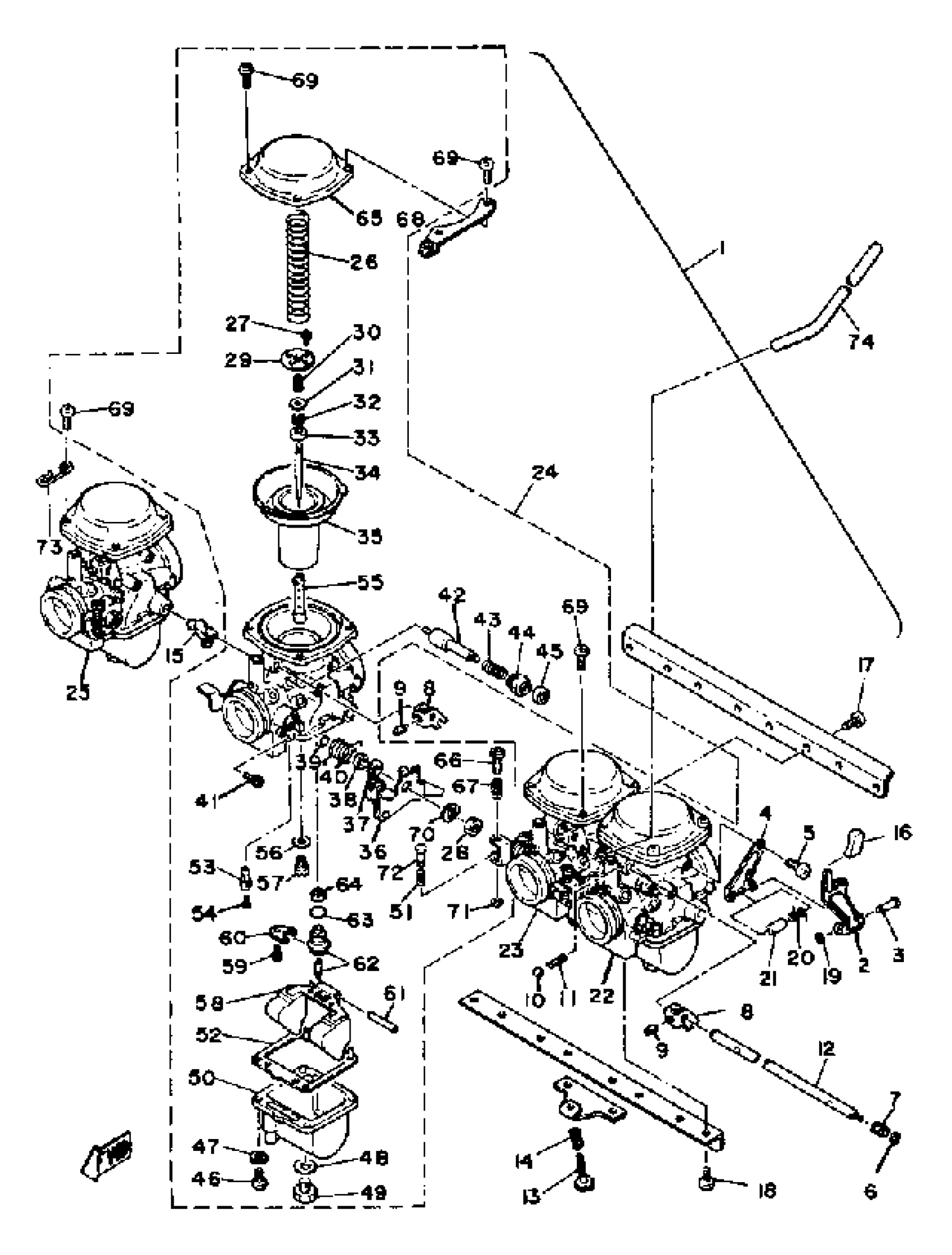

Yamaha XS1100LG (XS1100L) 1980 CARBURETOR Diagram

#

Description
Price

1

GEAR, IDLER 1

2H7-15512-00-00

Unavailable

2

. LEVER, STARTER 1

4H3-14975-00-00

Unavailable

3

PIN, FLOAT

(4H3-14386-00-00)

Unavailable

4

BRACKET

(4H3-14995-00-00)

Unavailable

5

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

6

. CLIP

737-14137-00-00

Unavailable

7

BUSH

(4H3-14998-00-00)

Unavailable

8

LEVER, STARTER

(4H3-14905-00-00)

Unavailable

9

.. SCREW

4H3-14991-00-00

Unavailable

10

BALL

93501-08001-00

$1.07

11

SPRING

583-14589-00-00

$5.49

12

SHAFT, STARTER LEVER

(4H3-14978-00-00)

Unavailable

13

. THROTTLE SCREW SET

11H-14103-00-00

Unavailable

14

. , SPRING, THROTTLE STOP

3F7-14934-00-00

Unavailable

15

. PIPE, STARTER CON

3H3-14988-00-00

Unavailable

16

. CAP

2F3-14968-00-00

Unavailable

17

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

18

SCREW, PAN HEAD

(97806-06014-00)

Unavailable

19

. CLIP

2F3-14919-00-00

Unavailable

20

SPRING

(4H3-14938-00-00)

Unavailable

21

PIPE

(2F3-14996-00-00)

Unavailable

22

CARBURETOR ASSEMBLY 1

(4H3-14901-00-00)

Unavailable

23

CARBURETOR ASSEMBLY 2

(4H3-14902-00-00)

Unavailable

24

CARBURETOR ASSEMBLY 3

(4H3-14903-00-00)

Unavailable

25

CARBURETOR ASSEMBLY 4

(4H3-14904-00-00)

Unavailable

26

.. SPRING, DIAPHRAGM

3H5-14933-00-00

Unavailable

27

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

28

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

29

PLATE, DIAPHRAGM

3F7-14936-00-00

Unavailable

30

SPRING, NEEDLE

3F7-14589-00-00

Unavailable

31

WASHER, PLATE (7Y2)

90201-037F2-00

Unavailable

32

CLIP

256-14919-00-00

Unavailable

33

RING, NEEDLE

3F7-14918-00-00

Unavailable

34

.. NEEDLE

452-14116-16-00

Unavailable

35

DIAPHRAGM ASSY

3F7-14940-00-00

Unavailable

36

LEVER, THROTTLE

(3H5-14913-00-00)

Unavailable

37

VALVE, THROTTLE

(306-14970-00-00)

Unavailable

38

RING

(2H7-14918-00-00)

Unavailable

39

.. SEAL

256-14997-00-00

Unavailable

40

SPRING, THROTTLE LEVER

(2H7-14931-00-00)

Unavailable

41

SCREW, CYLINDER HEAD

(98302-05006-00)

Unavailable

42

.. PLUNGER, STARTER

3F7-14171-00-00

Unavailable

43

.. SPRING, PLUNGER

3F7-14135-00-00

Unavailable

44

.. CAP, PLUNGER

3F7-14174-00-00

Unavailable

45

.. COVER, PLUNGER CAP

3F7-14173-00-00

Unavailable

46

SCREW, BODY FITTING

(4H3-14125-00-00)

Unavailable

47

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

48

WASHER

256-14956-01-00

Unavailable

49

.. SCREW

4H3-14991-00-00

Unavailable

50

BODY, FLOAT CHAMBER

(4H3-14981-05-00)

Unavailable

51

SPRING, THROTTLE STOP

(584-14934-00-00)

Unavailable

52

GASKET, FLOAT CHAMBER

3F7-14984-00-00

Unavailable

53

.. JET, PILOT #425

256-14142-42-A0

Unavailable

54

SCREW, PLUG

3F7-14991-00-00

Unavailable

55

.. NOZZLE, MAIN

3H5-14941-02-00

Unavailable

56

WASHER,MAIN JET

137-14153-00-00

Unavailable

57

JET, MAIN (#110)

620-14231-22-A0

Unavailable

58

FLOAT

3H5-14985-00-00

Unavailable

59

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

60

. PLATE

2H0-14146-00-00

Unavailable

61

PIN, FLOAT

537-14186-00-00

Unavailable

62

NEEDLE VALVE SET

25G-14107-20-00

Unavailable

63

O-RING

8F2-14147-00-00

Unavailable

64

NET, FILTER

1J7-14994-00-00

Unavailable

65

COVER, DIAPHRAGM

(4H3-14958-00-00)

Unavailable

66

. STOP SCREW SET

12R-1490K-00-00

Unavailable

67

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

68

COVER, DIAPHRAGM

(4H3-14958-00-00)

Unavailable

69

.. WASHER

256-14953-00-00

Unavailable

70

.. WASHER

256-14953-00-00

Unavailable

71

CLIP

(2H7-14937-00-00)

Unavailable

72

ROD

(2H7-14992-00-00)

Unavailable

73

CLIP

(4H3-14919-00-00)

Unavailable

74

CAP

3F9-14118-00-00

Unavailable

74

HOSE (L400)

90445-082A9-00

Unavailable
