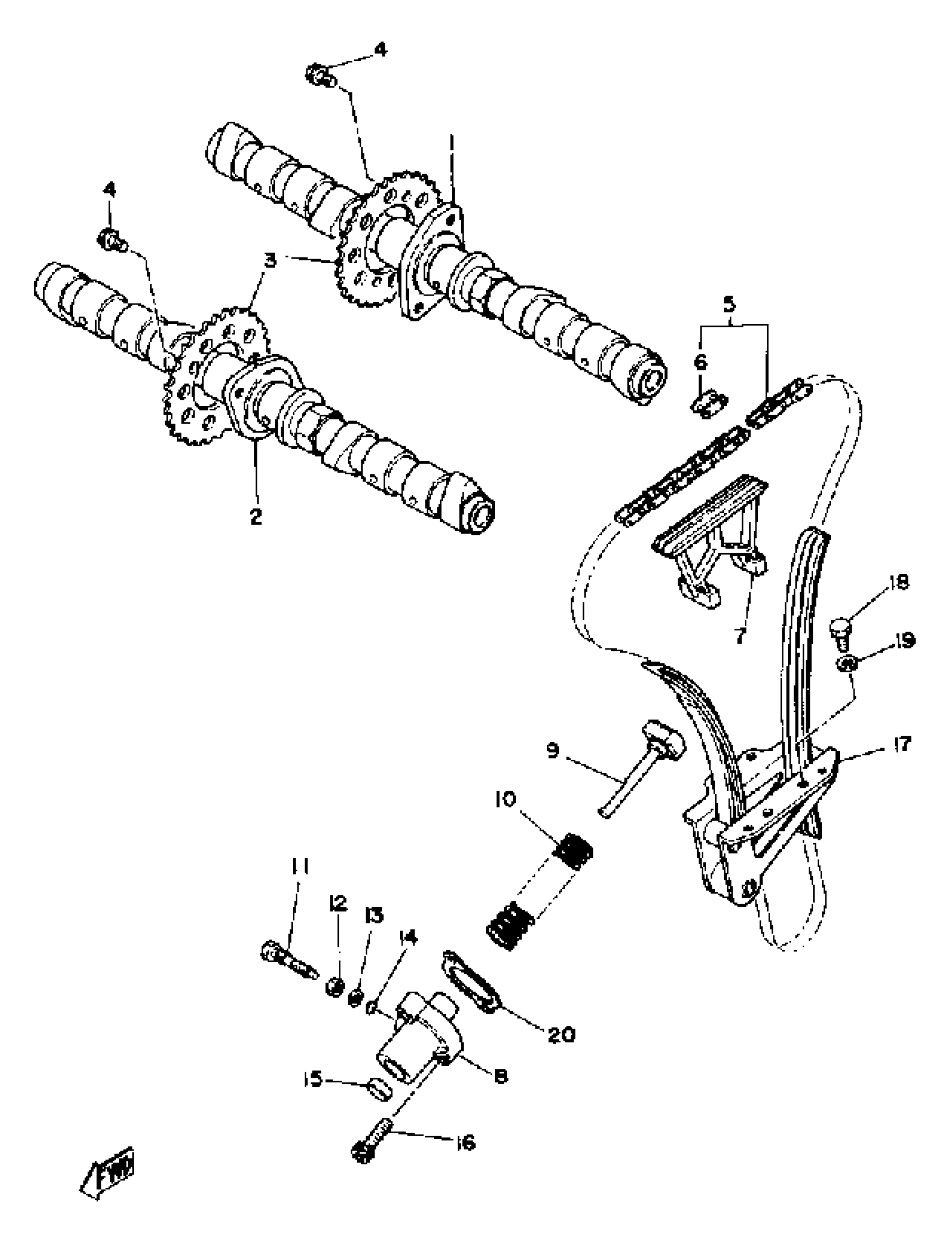

Yamaha XS1100LG (XS1100L) 1980 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

3H5-12171-01-00

Unavailable

2

CAMSHAFT 2

3H5-12181-01-00

Unavailable

3

SPROCKET, CAM CHAIN

1L9-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN

94500-02128-00

Unavailable

6

JOINT, CHAIN (583)

94600-02001-00

$7.99

7

GUIDE, STOPPER 2

2H7-12241-00-00

Unavailable

8

CASE, CHAIN TENSNR

2H9-12212-00-00

Unavailable

9

ROD, CHN TENSIONER

2H7-12217-01-00

Unavailable

10

SPRING, COMPRESSION

90501-16493-00

Unavailable

11

BOLT

90109-08442-00

Unavailable

12

NUT, HEXAGON SMALL

95317-08700-00

$9.49

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

O-RING (26H)

93210-06632-00

$8.49

15

PLUG, BLIND 4001539800

90338-14004-00

$5.60

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

CHAIN DAMPER ASSEMBLY

2H7-12250-04-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

$2.80

20

GASKET

2H7-12213-10-00

Unavailable
