1981 Yamaha XS1100 (XS1100H) Steering Diagram

← All diagrams

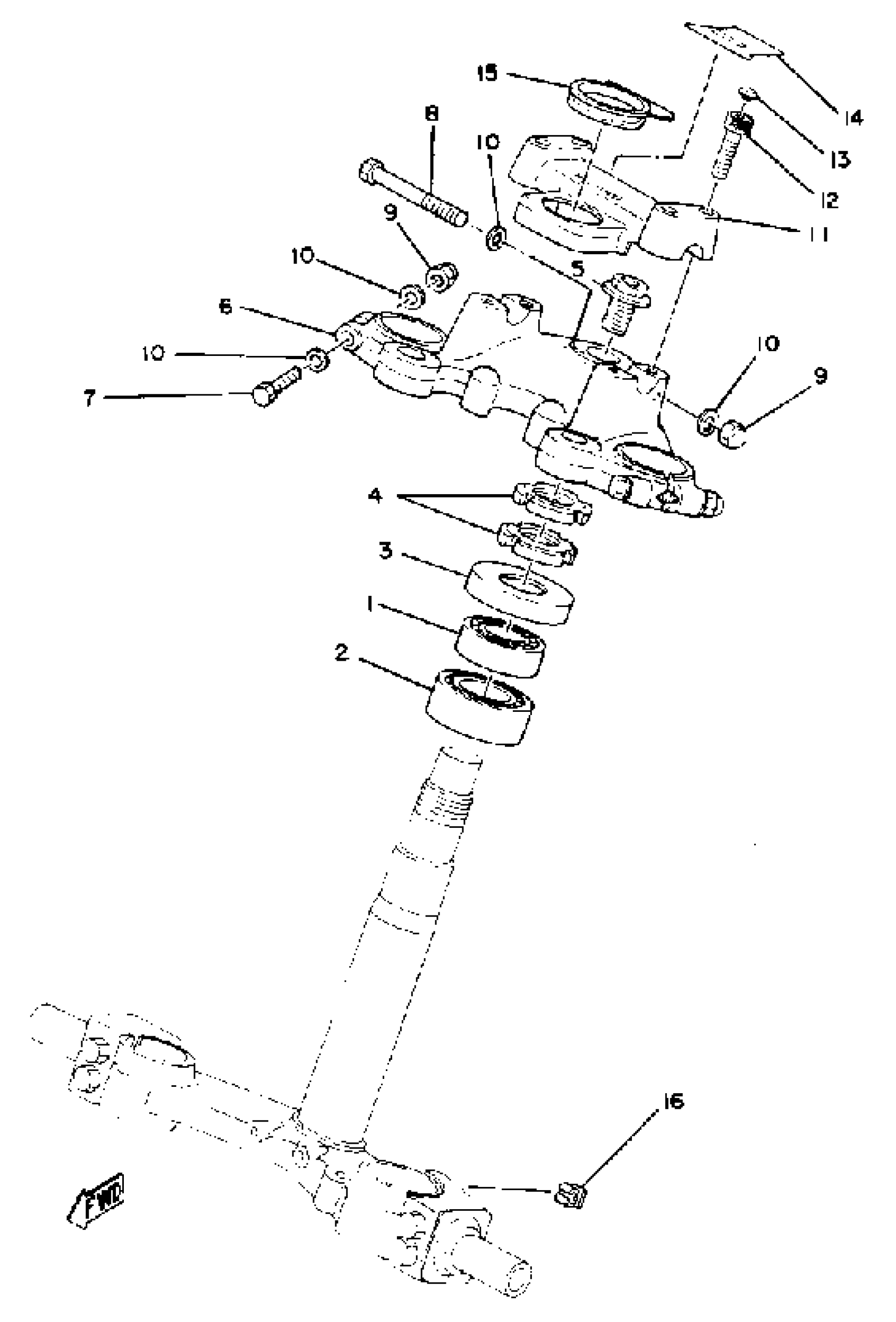

Find the part on the Steering diagram for your 1981 Yamaha XS1100 (XS1100H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS1100 (XS1100H) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

3

COVER, BALL RACE 1

1J7-23415-00-00

1
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

BOLT, WASHER BASED(1AR)

90105-14365-00

1
Out of stock

6

CROWN, HANDLE

2H7-23435-00-98

1
Out of stock

7

BOLT(6TC)

97027-08050-00

1
Out of stock

8

BOLT

97021-08065-00

1
Out of stock

9

NUT, CAP

95307-08800-00

1
Out of stock

10

WASHER(6TA)

92907-08600-00

1
Out of stock

11

HOLDER, HANDLE UPR

2H7-23441-00-98

1
Out of stock

12

BOLT, SOCKET

91317-08030-00

1
Out of stock

13

CAP, BOLT (371,447)

341-23469-00-00

1
Out of stock

14

EMBLEM

2H7-23395-00-00

1
Out of stock

15

GROMMET

(90480-34225-00)

1
Out of stock

16

GROMMET

(2H7-23497-00-00)

1
Out of stock
