1981 Yamaha XS1100 (XS1100H) Front Fork Diagram

← All diagrams

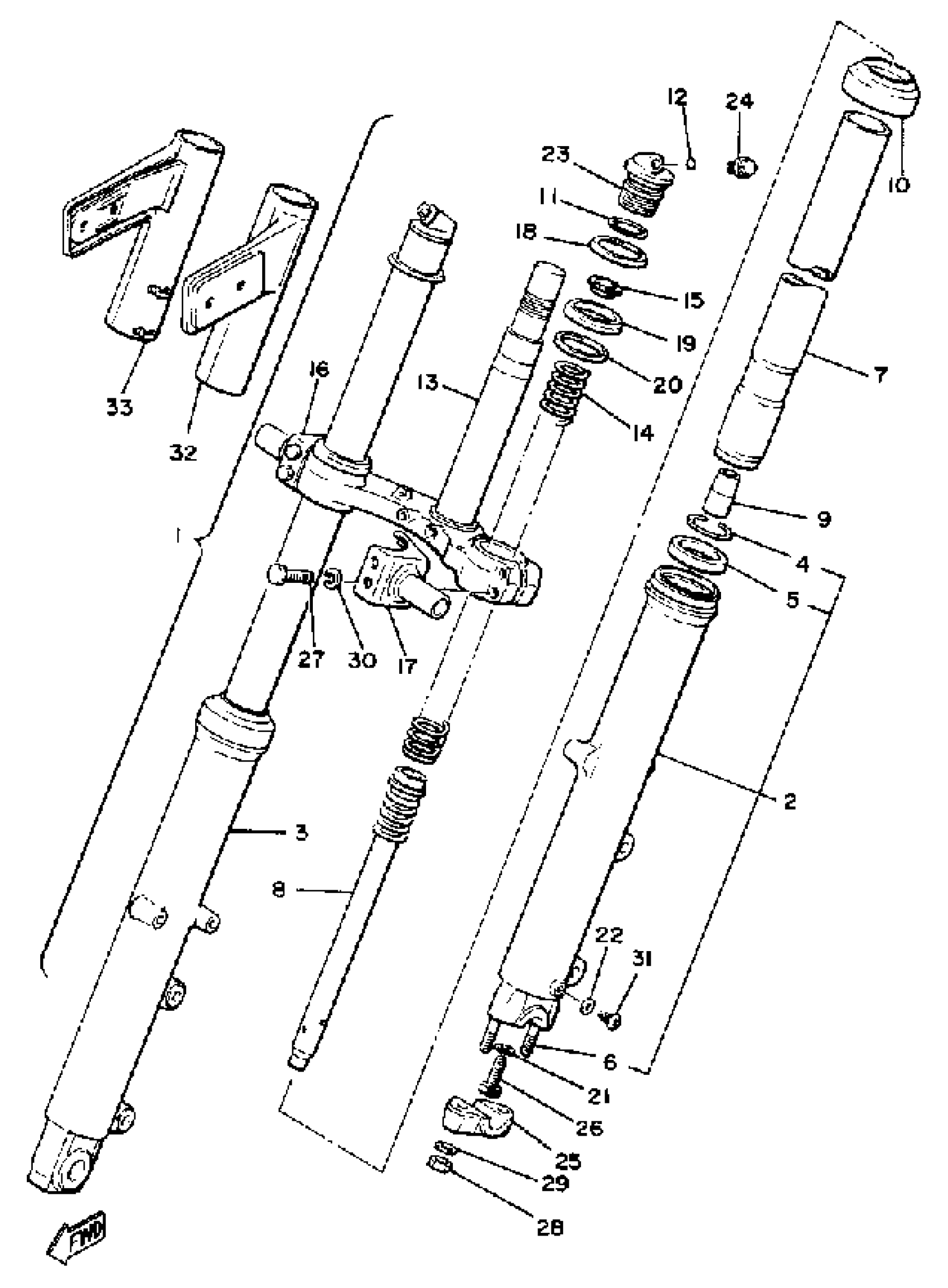

Find the part on the Front Fork diagram for your 1981 Yamaha XS1100 (XS1100H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS1100 (XS1100H) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(4R1-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(3H5-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(3H5-23136-00-00)

1
Out of stock

4

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

5

OIL SEAL

41Y-23145-00-00

1

$28.27

In stock

6

BOLT, STUD (278)

90116-08261-00

1
Out of stock

7

. INNER TUBE 1

3H5-23110-00-00

1
Out of stock

8

CYLINDER, FRTFRK

(3H5-23170-00-00)

1
Out of stock

9

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

10

SEAL, DUST

3H5-23144-00-00

1
Out of stock

11

GASKET

240-23114-00-00

1

$12.27

In stock

12

. O-RING

509-23163-L0-00

1
Out of stock

13

. UNDER BRACKET

2H9-23340-H0-33

1
Out of stock

14

SPRING, FRONT FORK

(3H5-23141-00-00)

1
Out of stock

15

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

16

. COVER, OUTER 2

2H7-23132-00-00

1
Out of stock

17

. COVER, OUTER 1

2H7-23122-00-00

1
Out of stock

18

GUIDE, COVER UPPER

2H7-23115-00-00

1
Out of stock

19

. GUIDE, COVER LOWER

2H7-23116-00-00

1
Out of stock

20

WASHER

2H7-23163-00-00

—

$4.35

In stock

21

GASKET

509-23158-L0-00

—

$14.34

In stock

22

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

23

BOLT, CAP

(4R1-23111-00-00)

1
Out of stock

24

. AIR VALVE

3H5-23190-00-00

1
Out of stock

25

HOLDER,AXLE

341-23167-50-00

—
Out of stock

26

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

27

BOLT

(90101-08262-00)

1
Out of stock

28

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

29

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

31

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

32

COVER, UPPER 1

2H7-23121-00-93

1
Out of stock

33

COVER, UPPER 2

2H7-23131-00-93

1
Out of stock
