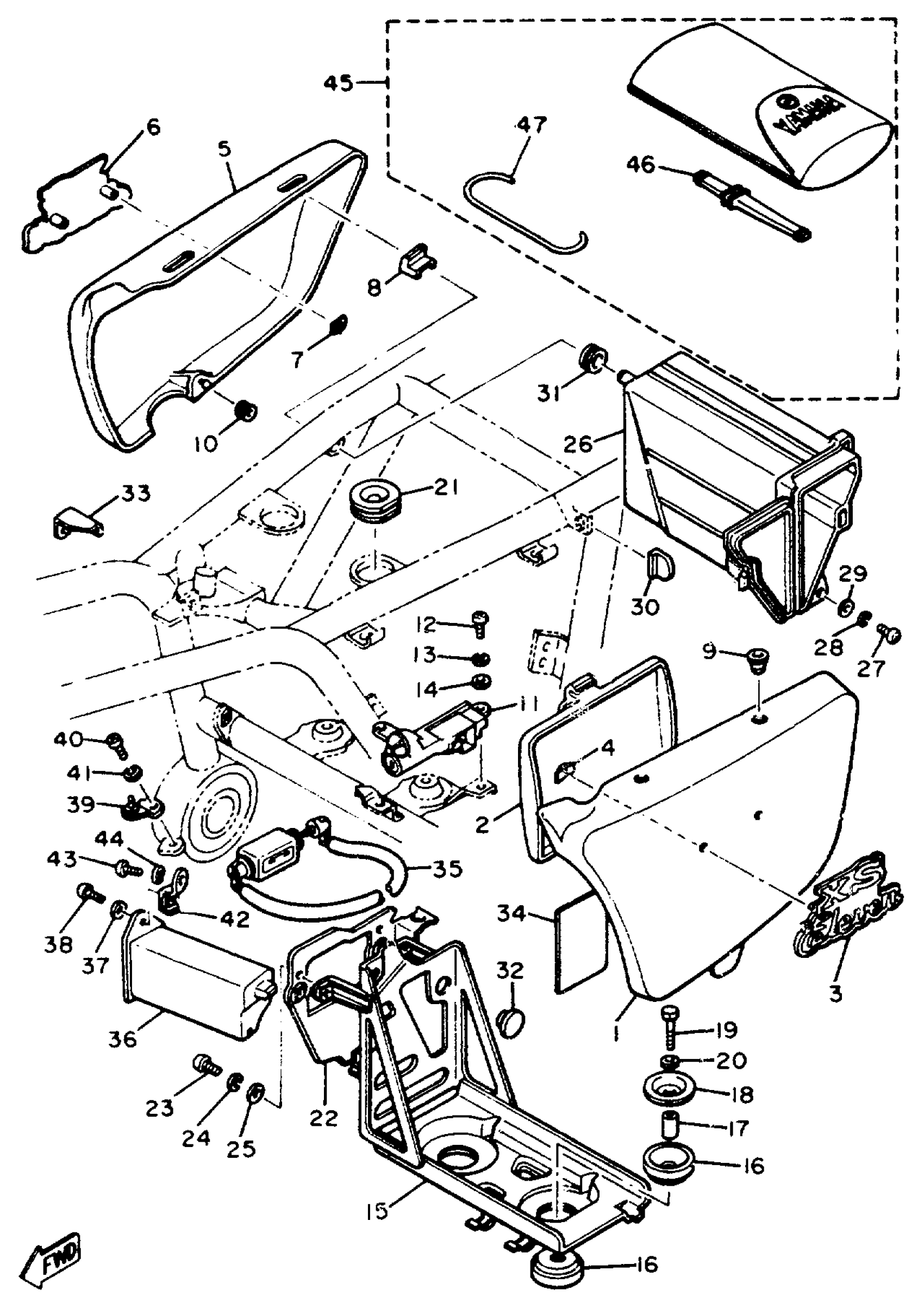

Yamaha XS1100H (XS1100) 1981 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1

3H5-21711-01-4E

Unavailable

2

LID

(3H3-28185-00-00)

Unavailable

3

EMBLEM 1

3H5-21781-00-00

Unavailable

4

NUT, SPRING (1L9)

90183-04012-00

$7.49

5

COVER, SIDE 2

3H5-21721-00-4E

Unavailable

6

EMBLEM 1

3H5-21781-00-00

Unavailable

7

NUT, SPRING (1L9)

90183-04012-00

$7.49

8

DAMPER

2H7-21717-00-00

Unavailable

9

GROMMET (26H)

90480-12355-00

Unavailable

10

GROMMET(41Y)

90480-01401-00

$8.49

11

SIDE CVR LOCK ASSEMBLY

(4R0-21708-00-00)

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER(6TA)

92907-06600-00

$2.72

15

BOX

(2H7-21170-00-33)

Unavailable

16

DAMPER

2H7-21746-00-00

Unavailable

17

COLLAR

90387-06387-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-07170-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

DAMPER

2H7-21747-00-00

Unavailable

22

PLATE 1

(2H7-21543-00-91)

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

BOX, TOOL

2H7-21171-01-00

Unavailable

27

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLATE

90201-06M08-00

Unavailable

30

GROMMET

90480-16185-00

Unavailable

31

GROMMET (1E6)

90480-15058-00

Unavailable

32

GROMMET

(90480-17218-00)

Unavailable

33

WASHER, SPECIAL 1

(2H7-21715-00-00)

Unavailable

34

PLATE, SPEC

(4R0-21683-00-00)

Unavailable

35

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable

36

BOX

4R0-21258-00-00

Unavailable

37

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

38

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

39

STAY, LOCK

4R0-2175H-01-00

Unavailable

40

SCREW, PAN

98517-06012-00

Unavailable

41

WASHER, SPRING

92907-06100-00

$4.25

42

STAY, SIDE COVER 1

(4R0-2172E-00-00)

Unavailable

43

BOLT, HEXAGON

97017-06012-00

Unavailable

44

WASHER, SPRING

92907-06100-00

$4.25

45

TOOL KIT

2H7-W2810-00-00

Unavailable

46

. GAUGE, OIL LEVEL

2H7-2815A-00-00

Unavailable

47

WIRE, HOOK

3H3-2814A-00-00

Unavailable
