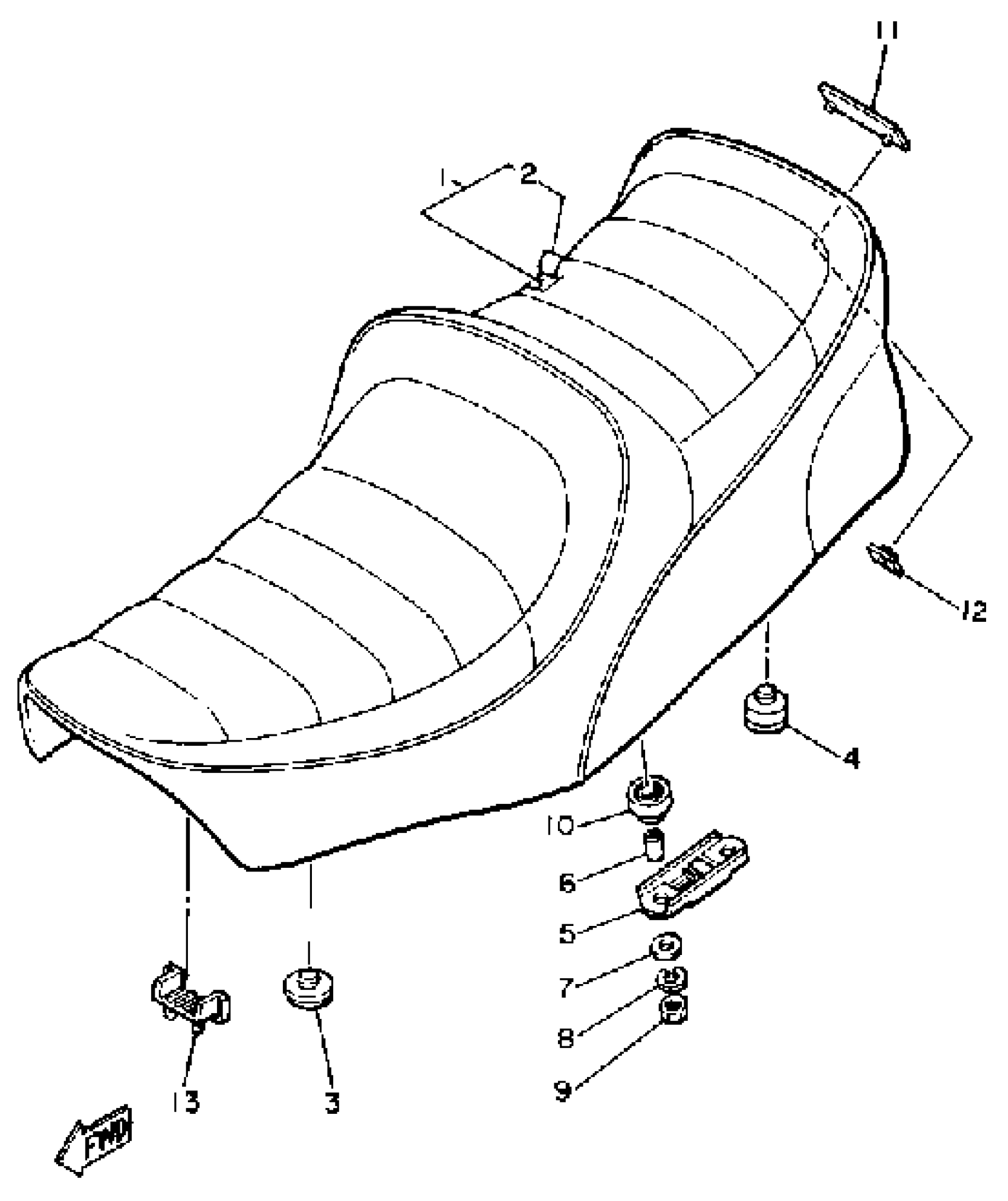

Yamaha XS1100H (XS1100) 1981 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

(4R1-W2472-00-00)

Unavailable

2

COVER, DOUBLE SEAT

(4R1-24731-00-00)

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

PAD, SEAT

1T4-24741-00-00

Unavailable

5

BRACKET, SEAT

2H7-24738-00-00

Unavailable

6

COLLAR (1M1)

90387-06553-00

$9.49

7

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

DAMPER, SEAT

2H7-24723-00-00

Unavailable

11

EMBLEM

25G-24786-00-00

Unavailable

12

NUT, SPRING (1L9)

90183-04012-00

$7.49

13

DAMPER, SEAT

2H7-24724-00-00

Unavailable
