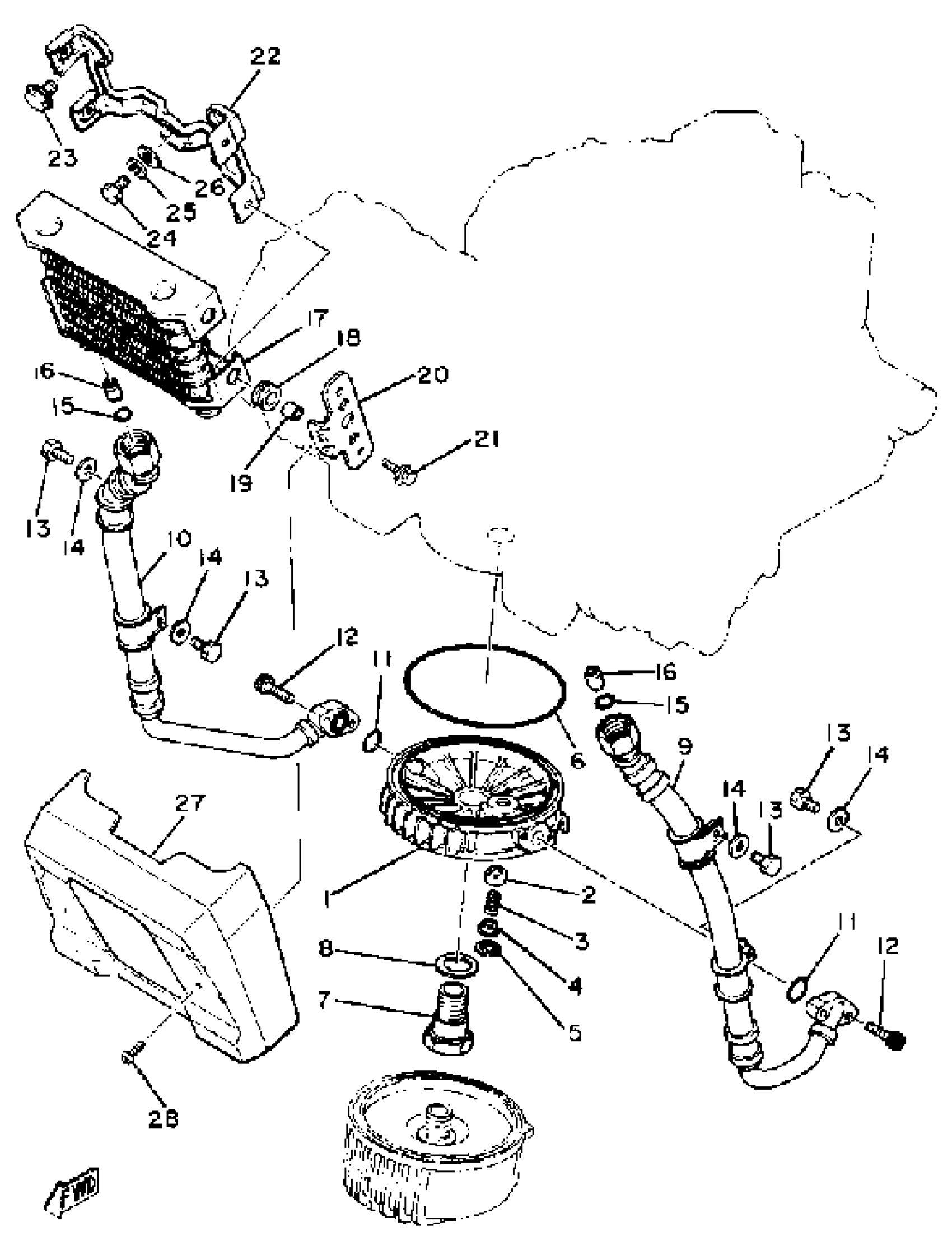

Yamaha XS1100H (XS1100) 1981 OIL COOLER Diagram

#

Description
Price

1

PLATE, ADAPTOR

2H9-13461-00-00

Unavailable

2

PLUNGER

4KM-13493-00-00

$6.99

3

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

4

WASHER (2H9)

90209-06173-00

$15.99

5

CIRCLIP(24H)

99009-17500-00

$7.49

6

O-RING (3Y2)

93211-19413-00

$15.99

7

BOLT, UNION

90401-20089-00

Unavailable

8

WASHER, PLATE (888)

90201-25526-00

$9.49

9

HOSE, OIL 1

(2H9-13464-00-00)

Unavailable

10

HOSE, OIL 2

(2H9-13465-00-00)

Unavailable

11

O-RING (2H9)

93210-14369-00

$7.49

12

BOLT,SOCKET

91317-06025-00

$5.60

13

BOLT, HEXAGON

(97326-06014-00)

Unavailable

14

WASHER(6TA)

92907-06600-00

$2.72

15

O-RING (256)

93210-12152-00

$7.49

16

PIN, DOWEL

99530-12016-00

Unavailable

17

OIL COOLER ASSEMBLY

(2H9-13470-00-00)

Unavailable

18

GROMMET(2GH)

90480-12475-00

Unavailable

19

COLLAR

90387-06113-00

Unavailable

20

PLATE

(4R1-13489-00-00)

Unavailable

21

BOLT, FLANGE

95817-06016-00

Unavailable

22

HOLDER, OIL COOLR 1

(2H9-13472-00-00)

Unavailable

23

BOLT, WASHER BASED (7H3)

90105-10147-00

Unavailable

24

BOLT, HEXAGON

97027-08012-00

Unavailable

25

WASHER(JN5)

92907-08100-00

Unavailable

26

WASHER(6TA)

92907-08600-00

Unavailable

27

CASE, OIL COOLER

(4R1-13462-00-00)

Unavailable

28

SCREW, BINDING

98907-05010-00

Unavailable
