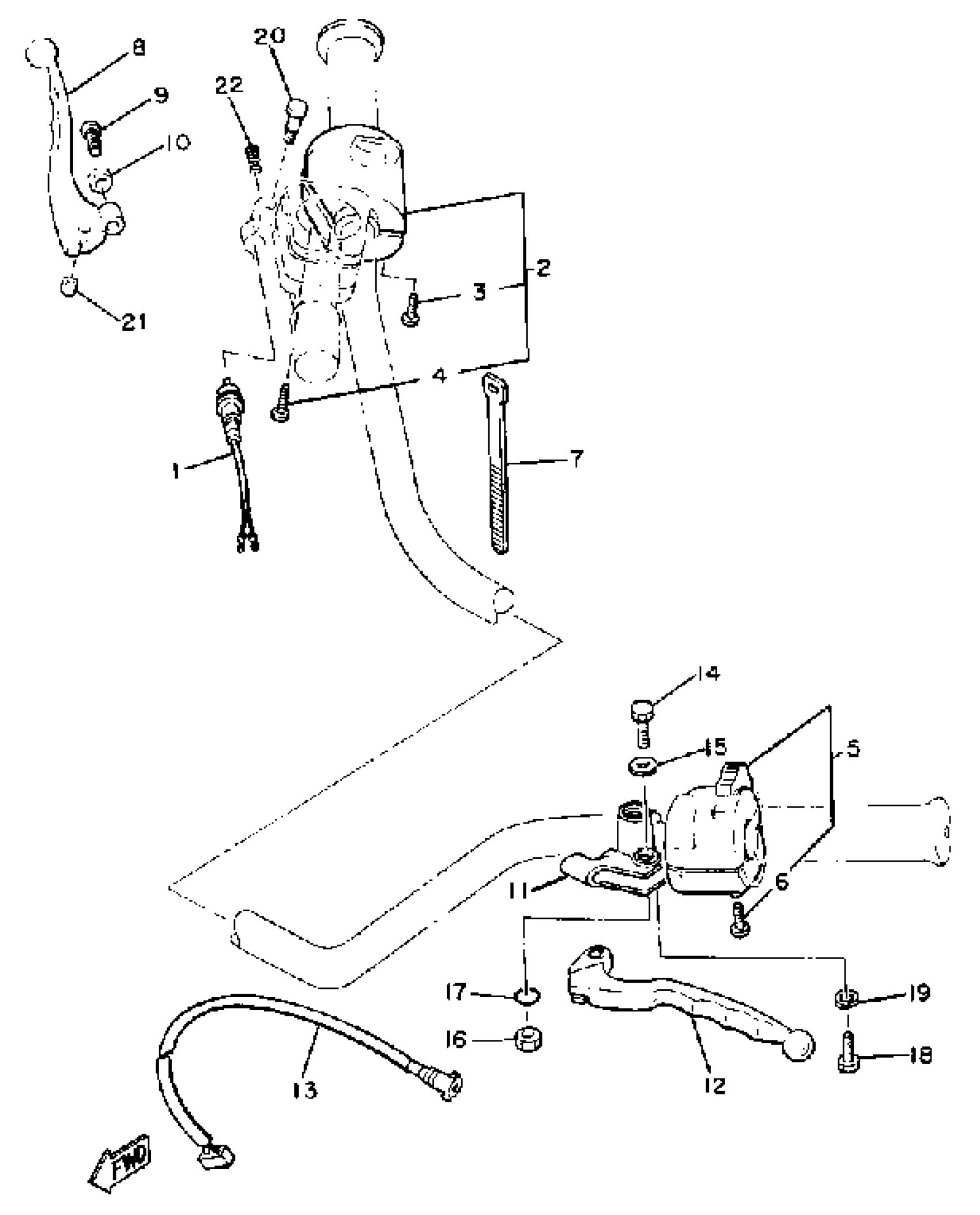

Yamaha XS1100H (XS1100) 1981 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

FRONT STOP SWITCH ASSY

26H-83980-00-00

$74.99

2

UNAVAILABLE IN PRICE BOOK

2H7-83975-00-01

Unavailable

3

SCREW, PAN HEAD

98517-05030-00

$10.49

4

SCREW, PAN

98507-05040-00

$8.49

5

SWITCH, HANDLE 4

3J6-83972-00-00

Unavailable

6

SCREW, PAN HEAD

98517-05030-00

$10.49

7

BAND, SWITCH CORD

437-83936-01-00

$7.99

8

LEVER (R.H)

2H7-83922-20-00

$40.99

9

SCREW (2L0)

90149-06131-00

$8.49

10

NUT HEXAGON 306839270000

90170-06010-00

$8.49

11

HOLDER, LEVER 1

3Y6-82911-00-00

$55.99

12

LEVER L

2H0-83912-31-00

$31.99

13

SWITCH

3Y6-82917-00-00

Unavailable

14

BOLT(1FG)

90109-06798-00

$8.49

15

WASHER, PLATE 1562722600

90201-08083-00

$9.49

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

O-RING (2H7)

93210-11368-00

Unavailable

18

BOLT, HEXAGON

97007-06022-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

BOLT (4L0)

90109-06577-00

Unavailable

21

BUSH, SPEC''L NYLON

90386-08094-00

Unavailable

22

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable
