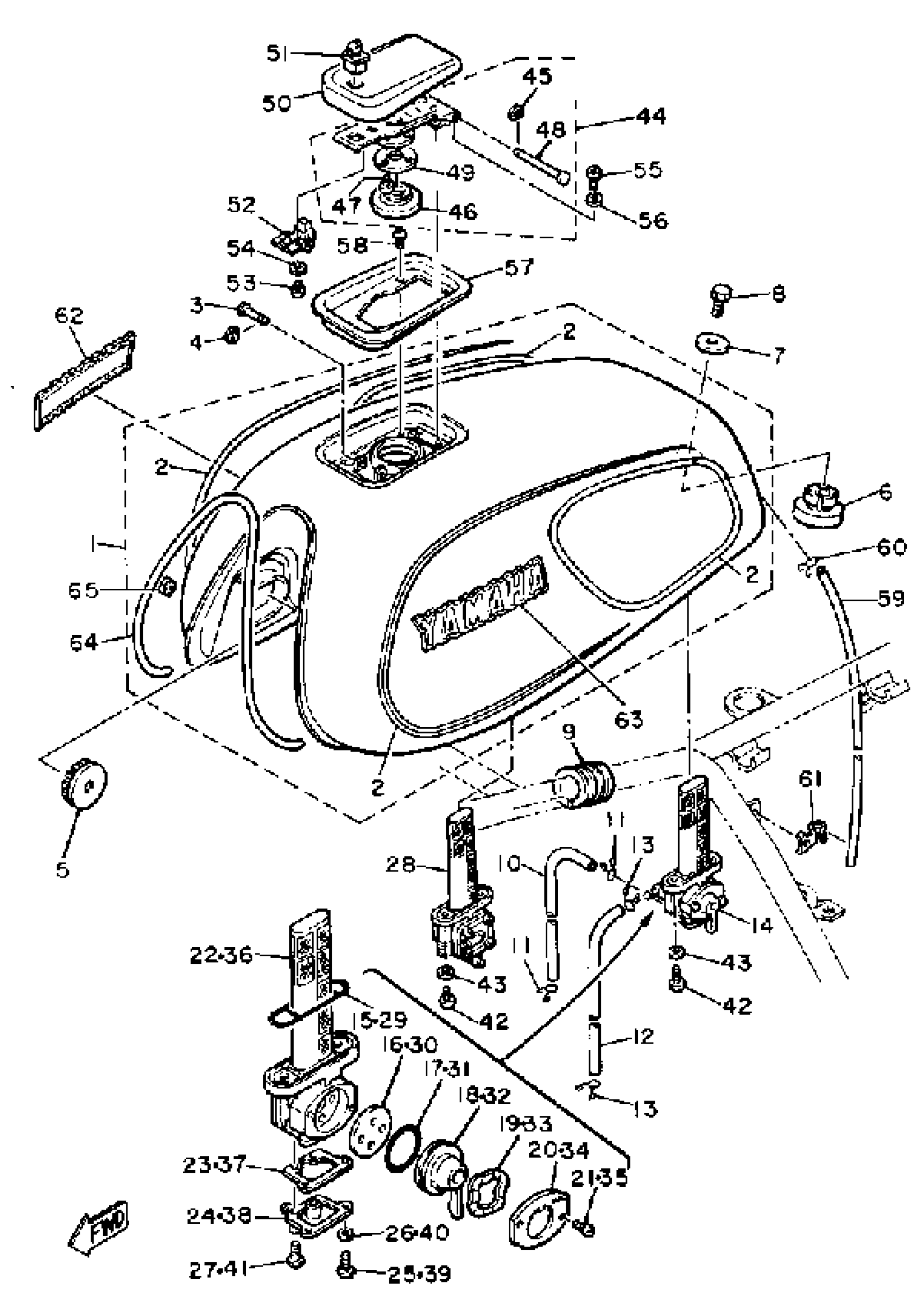

Yamaha XS1100H (XS1100) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

2H9-24110-00-X2

Unavailable

2

GRAPHIC SET

(4R1-24240-00-00)

Unavailable

3

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

4

CIRCLIP (604)

93430-02001-00

$8.49

5

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

6

DAMPER, LOCATING 2

2H7-24182-00-00

Unavailable

7

WASHER 1902345600

90201-08310-00

$9.49

8

BOLT(62E)

97013-08012-00

Unavailable

9

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

10

HOSE (L450)

90445-10144-00

$7.49

11

CLIP

90467-090A2-00

$4.41

12

HOSE (L200)

90445-07176-00

$7.60

13

CLIP (1J7)

90467-07029-00

$2.39

14

FUEL COCK ASSEMBLY 1

3G1-24500-03-00

Unavailable

15

O-RING

1J7-24512-00-00

$43.99

16

VALVE

16G-24523-00-00

Unavailable

17

SEAL, FUEL COCK

1J7-24534-00-00

Unavailable

18

LEVER, COCK

(2H7-24524-00-00)

Unavailable

19

. WASHER, WAVE

1J7-24518-00-00

Unavailable

20

PLATE, LVR FITTING

(2H7-24525-00-00)

Unavailable

21

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

22

. NET, FILTER 1

1J7-24514-02-00

Unavailable

23

GASKET, DRAIN COVER

1J7-24522-00-00

Unavailable

24

CUP, FILTER

(2H7-24521-00-00)

Unavailable

25

SCREW, PAN HEAD

98517-04012-00

Unavailable

26

WASHER(6TA)

92907-04100-00

Unavailable

27

SCREW, FLAT

98707-04016-00

Unavailable

28

FUEL COCK ASY 2

2G2-24510-05-00

Unavailable

29

O-RING

1J7-24512-00-00

$43.99

30

VALVE

16G-24523-00-00

Unavailable

31

SEAL, FUEL COCK

1J7-24534-00-00

Unavailable

32

LEVER, COCK

(2H7-24524-10-00)

Unavailable

33

. WASHER, WAVE

1J7-24518-00-00

Unavailable

34

PLATE, LVR FITTING

(2H7-24525-10-00)

Unavailable

35

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

36

. NET, FILTER 1

1J7-24514-02-00

Unavailable

37

GASKET, DRAIN COVER

1J7-24522-00-00

Unavailable

38

CUP, FILTER

(2H7-24521-00-00)

Unavailable

39

SCREW, PAN HEAD

98517-04012-00

Unavailable

40

WASHER(6TA)

92907-04100-00

Unavailable

41

SCREW, FLAT

98707-04016-00

Unavailable

42

SCREW 366241430000

90149-06008-00

Unavailable

43

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

44

TANK-CAP BODY ASSEMBLY

2H7-W2461-02-00

Unavailable

45

GASKET, CAP 1

(2H7-24641-01-00)

Unavailable

46

PIN 1

(2H7-24623-00-00)

Unavailable

47

CIRCLIP (604)

93430-02001-00

$8.49

48

. GASKET, CAP

437-24612-00-00

Unavailable

49

SCREW, TAPPING

(97701-30506-00)

Unavailable

50

HOOKSLIDE CAM ASSEMBLY

5H7-W2462-00-00

Unavailable

51

SCREW, BINDING

98907-03008-00

Unavailable

52

WASHER, SPRING

92990-03100-00

Unavailable

53

CAP ASSEMBLY

2H7-24602-00-00

Unavailable

54

BODY, CAP

2H7-24611-00-00

Unavailable

55

. SCREW, PAN HEAD

98580-050101-00

Unavailable

56

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

57

COVER, FILTER

2H7-2414A-00-00

Unavailable

58

SCREW, BINDING

98907-05008-00

Unavailable

59

HOSE (L730)

90445-105K7-00

Unavailable

60

CLIP

90467-090A2-00

$4.41

61

CLAMP

(90462-10040-00)

Unavailable

62

EMBLEM 1

2H7-24161-00-00

Unavailable

63

EMBLEM 2

2H7-24162-00-00

Unavailable

64

PLATE, MOLD

3EB-24189-00-00

Unavailable

65

CLIP

90468-03063-00

Unavailable
