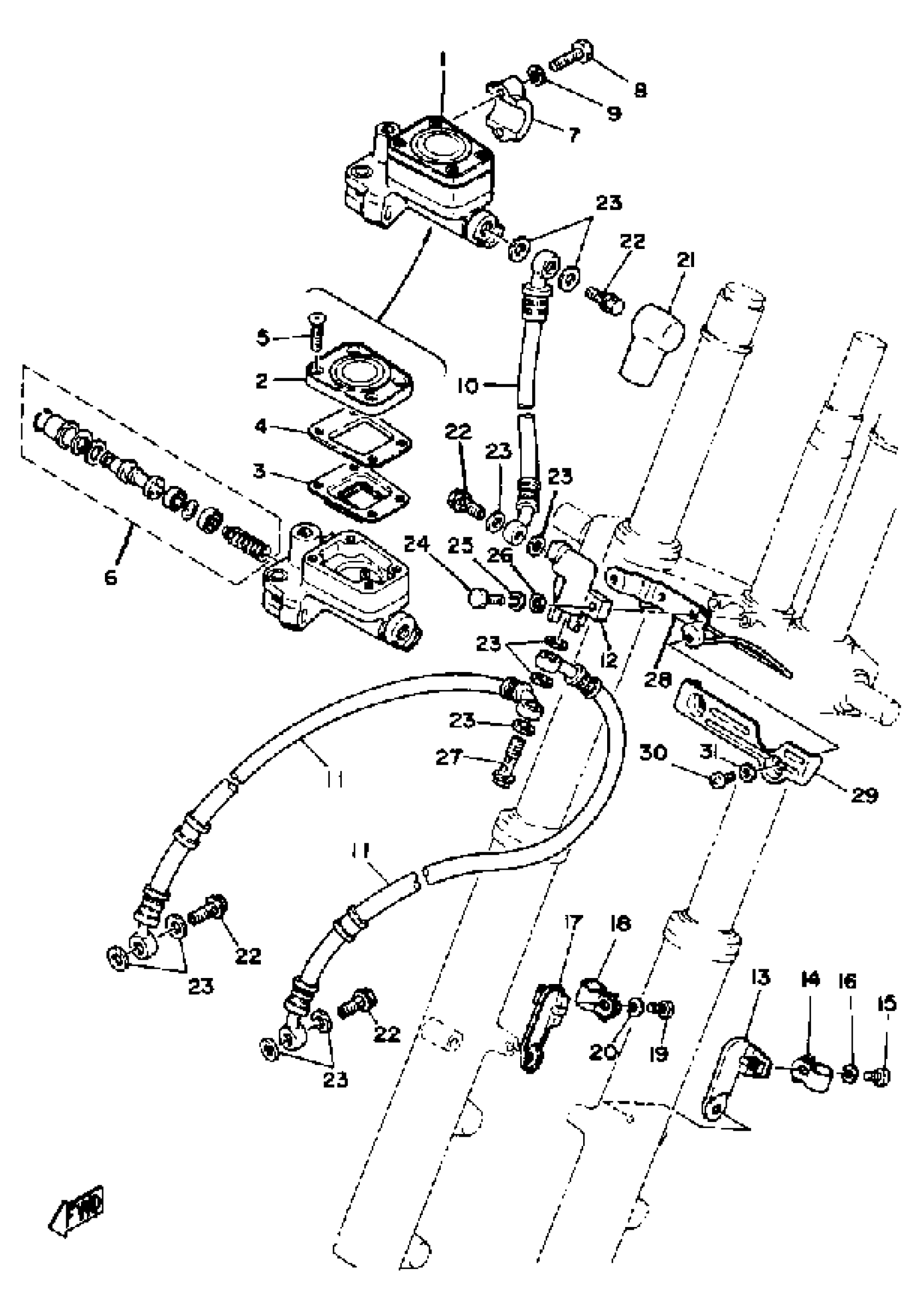

Yamaha XS1100H (XS1100) 1981 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

1J3-25850-23-00

Unavailable

2

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

3

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

4

. GASKET

1J3-25855-01-00

Unavailable

5

. SCREW

2G2-25857-00-00

Unavailable

6

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92907-06100-00

$4.25

10

HOSE, BRAKE 1

2H7-25872-00-00

Unavailable

11

HOSE, BRAKE 2

2H7-25873-00-00

Unavailable

12

JOINT

1J7-25885-01-00

Unavailable

13

HOLDER, BRKE HOSE 1

2H7-25875-00-00

Unavailable

14

CLAMP 1

90461-08031-00

Unavailable

15

SCREW, PAN

98517-06012-00

$3.78

16

WASHER, SPRING

92907-06100-00

$4.25

17

HOLDER, BRKE HOSE 2

2H7-25876-00-00

Unavailable

18

CLAMP 1

90461-08031-00

Unavailable

19

SCREW, PAN

98517-06012-00

$3.78

20

WASHER, SPRING

92907-06100-00

$4.25

21

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

22

BOLT, UNION(3GM)

90401-10159-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

24

BOLT, HEXAGON

97017-06025-00

$4.24

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

BOLT, UNION

90401-10038-00

Unavailable

28

GUIDE, CABLE

(2H7-26399-00-00)

Unavailable

29

HOLDER, CABLE

2H7-23317-00-00

Unavailable

30

SCREW, PAN

98517-06012-00

$3.78

31

WASHER(6TA)

92907-06600-00

Unavailable
