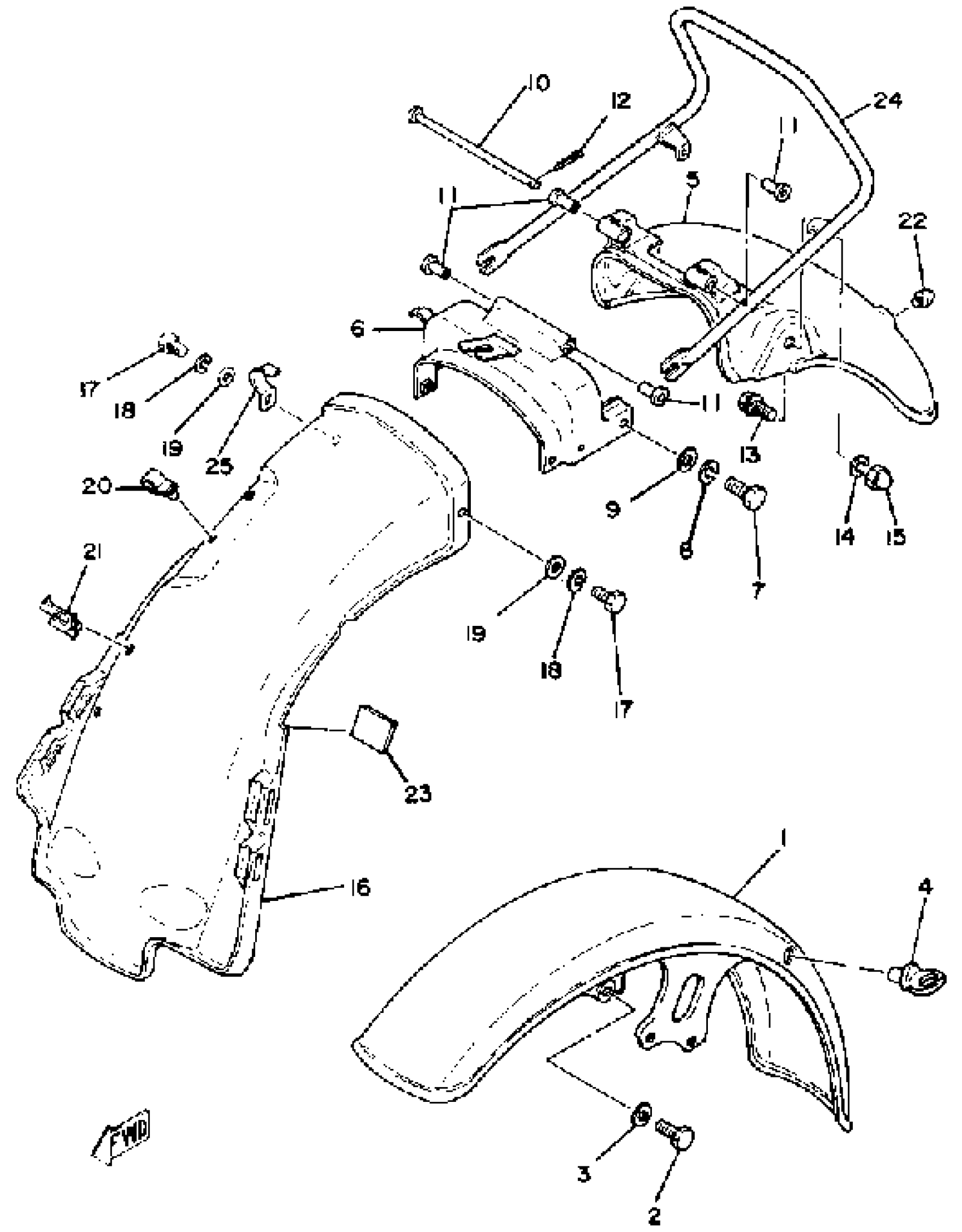

Yamaha XS1100H (XS1100) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2H7-21510-01-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

(3H5-21610-00-93)

Unavailable

6

STAY, FENDER 1

(3H5-21613-00-00)

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

PIN, CLEVIS

(91701-06152-00)

Unavailable

11

COLLAR

90387-06159-00

$8.49

12

PIN, COTTER

91490-16020-00

Unavailable

13

BOLT, FLANGE

95817-10020-00

$8.49

14

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

15

NUT, CROWN(3BM)

90176-10073-00

$8.49

16

GUARD, MUD

(3H5-21629-00-00)

Unavailable

17

BOLT, HEXAGON

97017-06012-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

WASHER, PLATE

90201-06M08-00

Unavailable

20

CLAMP (2H7)

90464-12027-00

Unavailable

21

CLAMP (1J7)

90464-16021-00

Unavailable

22

DAMPER 2

2MG-21639-00-00

Unavailable

23

DAMPER

22F-2139X-00-00

Unavailable

24

STAY, REAR

(4R1-21645-00-00)

Unavailable

25

CLAMP 363154850100

90462-05005-00

Unavailable
