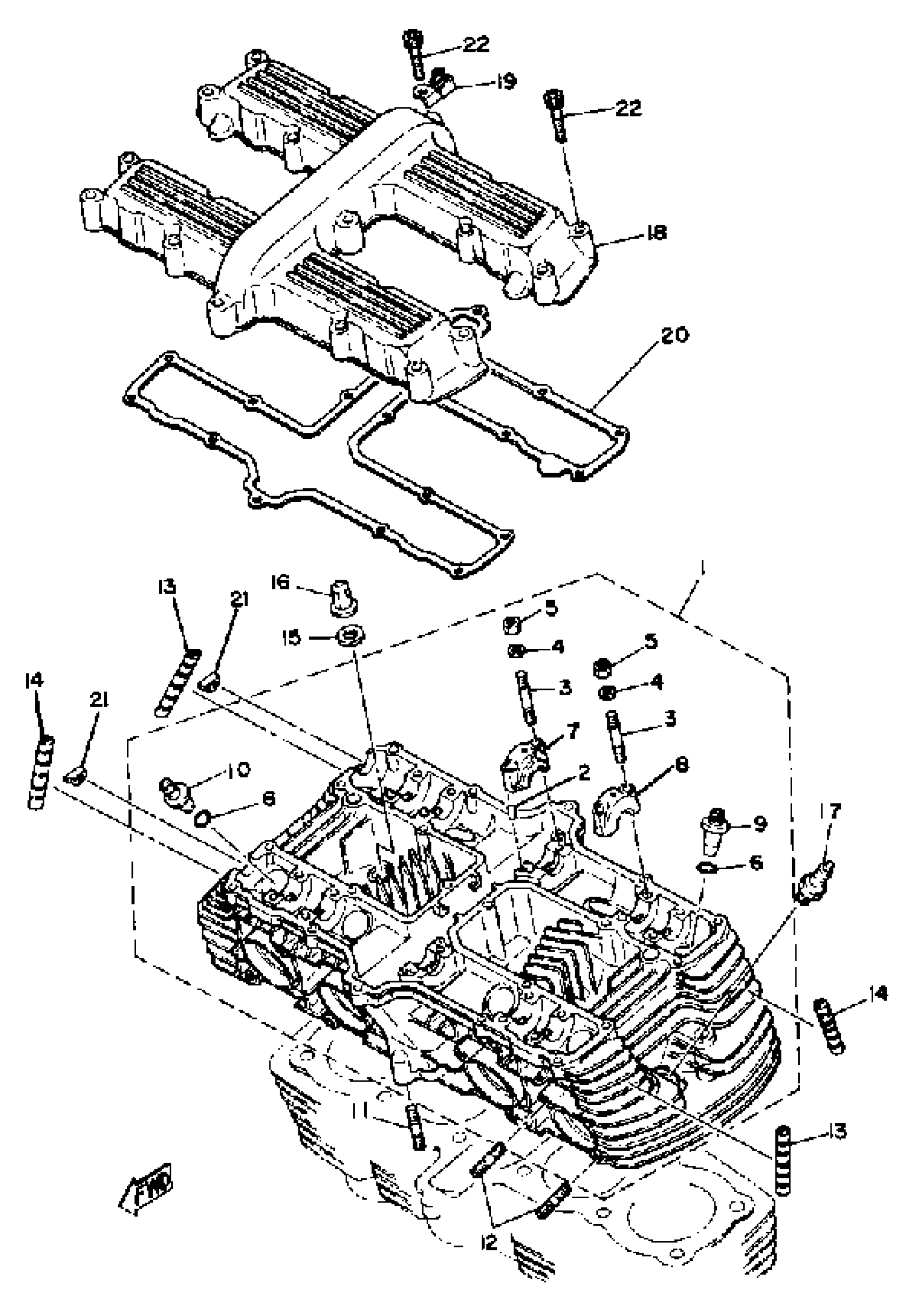

Yamaha XS1100H (XS1100) 1981 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(3H5-11110-01-00)

Unavailable

2

. PIN, DOWEL

93603-09004-00

Unavailable

3

BOLT, STUD (1J7)

90116-06228-00

$3.55

4

WASHER, PLATE (371)

90201-06431-00

$5.60

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

O-RING (1J7)

93210-11313-00

$8.49

7

. CAP, CAMSHAFT 1

1J7-12173-10-00

Unavailable

8

. CAP, CAMSHAFT 2

1J7-12183-10-00

Unavailable

9

. GDE, INTK VLV 1 O/S

1J7-11133-10-00

Unavailable

10

. GDE, EXST VLV 1 O/S

1J7-11134-10-00

Unavailable

11

BOLT, STUD

90116-08161-00

Unavailable

12

BOLT, STUD 3

95617-08615-00

$5.60

13

ABSORBER 1

2H7-11161-00-00

Unavailable

14

ABSORBER 2

(2H7-11162-00-00)

Unavailable

15

WASHER PLATE 256111740000

90201-10131-00

$9.49

16

NUT, CROWN(2GG)

90176-10075-00

Unavailable

17

BPR6ES NGK SPLUG 4PK

BPR-6ES00-00-00

Unavailable

18

COVER, CYLINDER.HEAD 1

4H3-11191-00-00

Unavailable

19

CLAMP

90465-10129-00

Unavailable

20

GASKET, CYLINDER HEAD COVER

2H7-11193-10-00

Unavailable

21

PLUG

1J7-11138-00-00

Unavailable

22

BOLT,SOCKET

91317-06035-00

Unavailable
