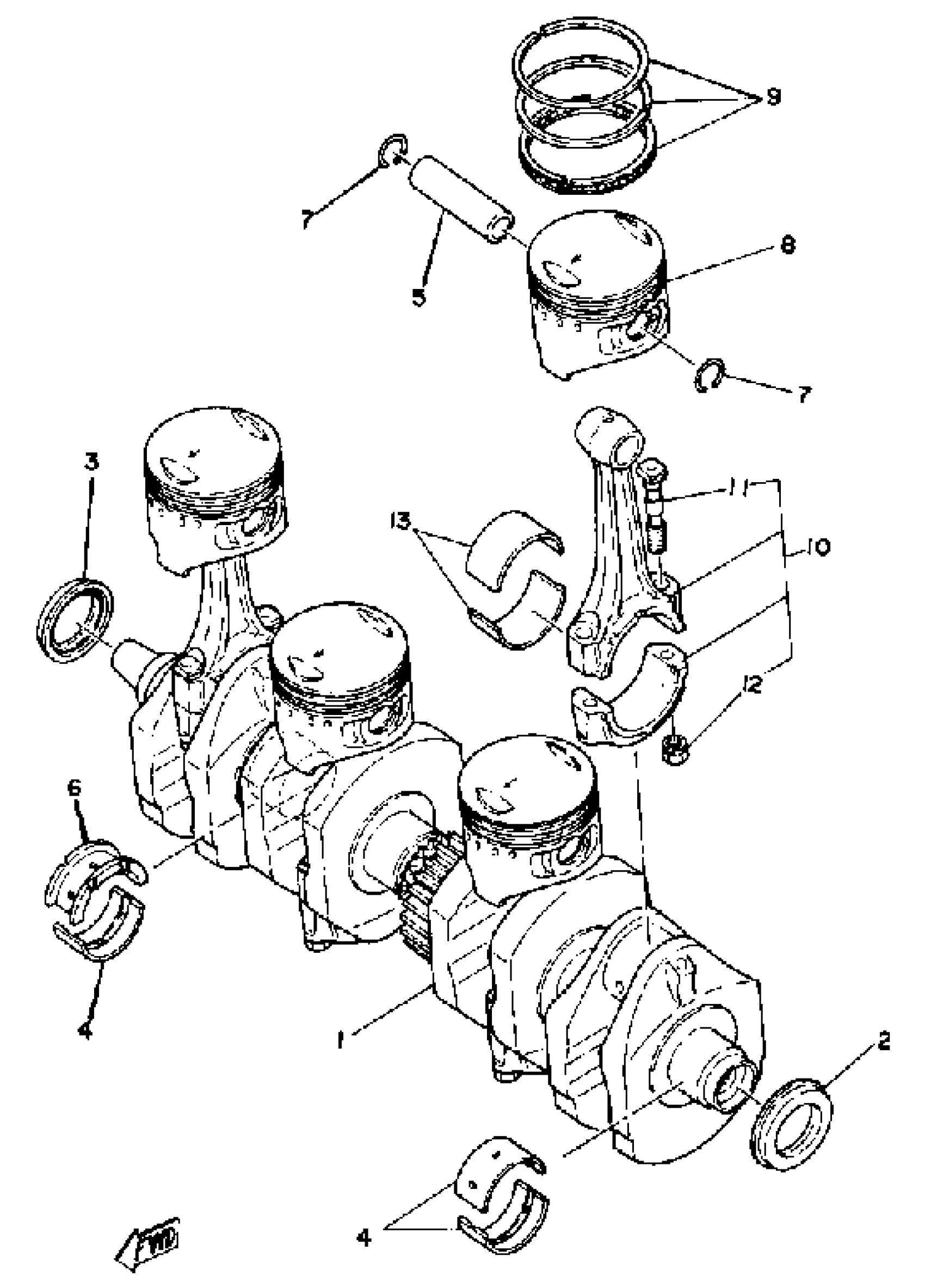

Yamaha XS1100H (XS1100) 1981 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

2H7-11411-02-00

Unavailable

2

OIL SEAL, S-TYPE

93101-32087-00

Unavailable

3

OIL SEAL (32X45X6.5-2H7)

93101-32144-00

$24.99

4

BEARING, PLAIN (CRANKSHAFT 1)

2H7-11416-01-00

$10.99

4

BEARING, PLAIN (CRANKSHAFT 2)

2H7-11416-11-00

$17.49

4

BEARING, PLAIN (CRANKSHAFT 3)

2H7-11416-21-00

$38.99

4

BEARING, PLAIN (CRANKSHAFT 4)

2H7-11416-31-00

$38.99

4

BEARING, PLAIN (CRANKSHAFT 5)

2H7-11416-41-00

$23.99

5

PIN, PISTON

2H7-11633-01-00

Unavailable

6

PLANE BRNG, CRSF 2

2H7-11417-11-00

Unavailable

6

PLANE BRNG, CRSF 2

2H7-11417-11-00

Unavailable

6

PLANE BRNG, CRSF 2

2H7-11417-31-00

Unavailable

6

PLANE BRNG, CRSF 2

2H7-11417-31-00

Unavailable

6

PLANE BRNG, CRSF 2

(2H7-11417-41-00)

Unavailable

7

CLIP (1J7)

90468-12069-00

$9.49

8

PISTON STD

3H5-11631-00-46

Unavailable

8

PISTON 1 O/S 0.25

3H5-11635-00-00

Unavailable

8

PISTON 2 O/S 0.50

3H5-11636-00-00

Unavailable

8

PISTON 3 O/S 0.75

3H5-11637-00-00

Unavailable

8

PISTON 4 O/S 1.00

(3H5-11638-00-00)

Unavailable

9

PISTON RING SET (STD)

3J2-11610-00-00

Unavailable

9

PISTON RINGSET 1ST

3J2-11610-10-00

Unavailable

9

PISTON RINGSET 2ND

3J2-11610-20-00

Unavailable

9

PISTON RINGSET 3RD

3J2-11610-30-00

Unavailable

9

PISTON RINGSET 4TH

3J2-11610-40-00

Unavailable

10

CONNECTING ROD ASSEMBLY

1J7-Y1165-01-00

Unavailable

11

. BOLT, CON ROD

1J7-11654-00-00

Unavailable

12

. NUT, HEXAGON

90170-09192-00

Unavailable

13

PLANE BRNG, CON ROD

2F3-11656-00-00

Unavailable

13

PLANE BRNG, CON ROD

2F3-11656-10-00

Unavailable

13

PLANE BRNG, CON ROD

2F3-11656-20-00

Unavailable

13

PLANE BRNG, CON ROD

2F3-11656-30-00

Unavailable

13

PLANE BRNG, CON ROD

2F3-11656-40-00

Unavailable
