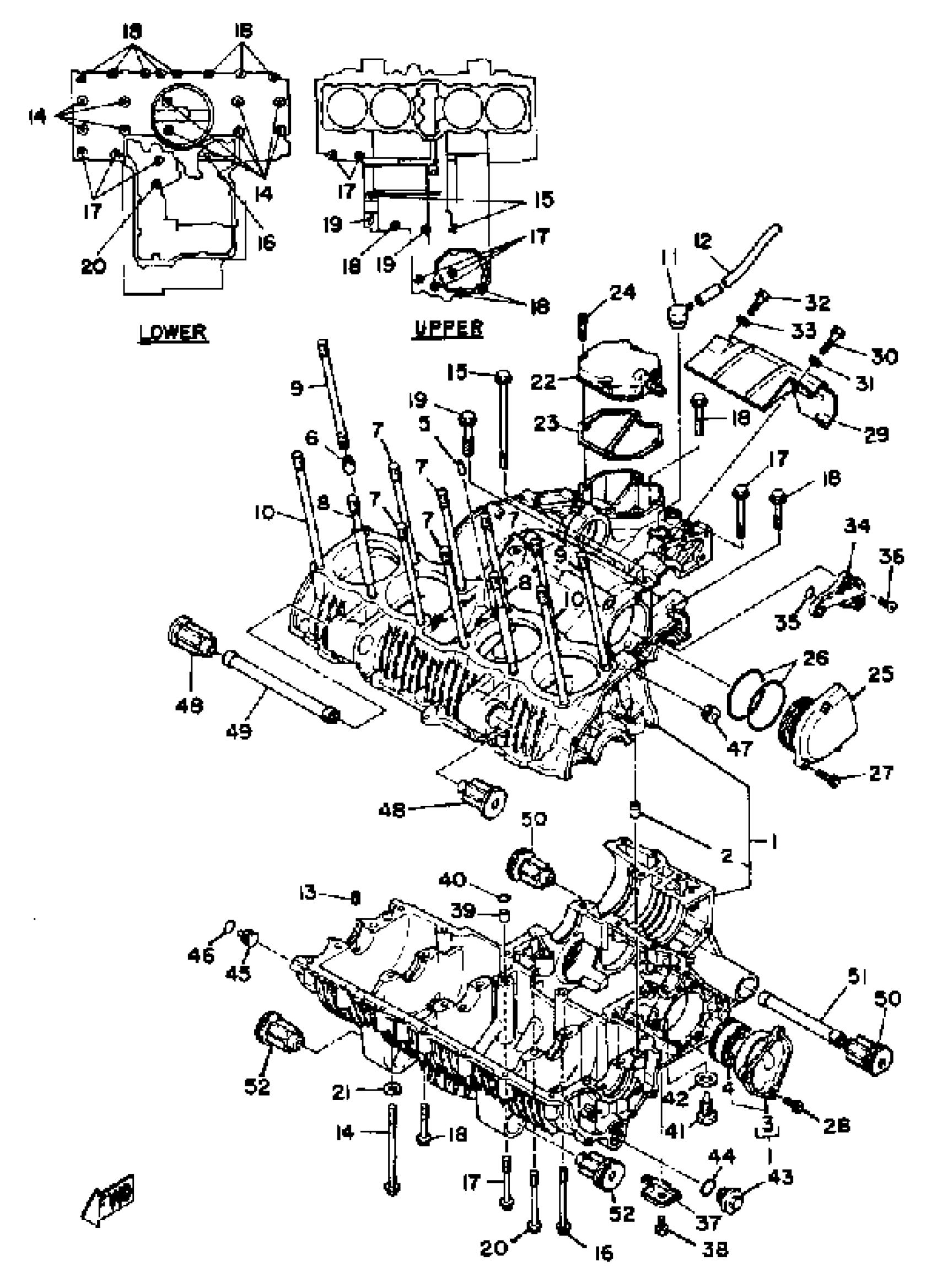

Yamaha XS1100H (XS1100) 1981 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE ASSEMBLY

(2H7-15100-02-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

. BRNG HSNG CMPLT 2

2H7-W1516-00-10

Unavailable

3

. BRNG HSNG CMPLT 2

2H7-W1516-00-20

Unavailable

4

BEARING

(93306-20505-00)

Unavailable

5

PIN, DOWEL

93605-14143-00

Unavailable

6

PIN, DOWEL

99530-14016-00

$3.80

7

BOLT, STUD

90116-10273-00

Unavailable

8

BOLT, CYLINDER HOLDING 3

2F3-11363-00-00

Unavailable

9

BOLT, STUD

90116-10275-00

Unavailable

10

BOLT, STUD

90116-10274-00

Unavailable

11

BREATHER

2H7-17591-01-00

Unavailable

12

HOSE (L1050)

90445-072G8-00

$29.99

13

NOZZLE 1

(2H7-15138-00-00)

Unavailable

14

BOLT, FLANGE

95817-08115-00

$8.49

15

BOLT, FLANGE

95817-08125-00

Unavailable

16

BOLT, FLANGE

95811-06085-00

Unavailable

17

BOLT, FLANGE

95817-06065-00

Unavailable

18

BOLT, FLANGE

95817-06045-00

Unavailable

19

BOLT, FLANGE

95814-08045-00

Unavailable

20

BOLT, FLANGE

95817-08075-00

Unavailable

21

WASHER, PLATE (33N)

90201-094G1-00

Unavailable

22

COVER, BREATHER

2H7-11168-00-00

Unavailable

23

GASKET, BTHR COVER

2H7-11169-10-00

Unavailable

24

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

25

HOUSING, BEARING 1

2H7-15163-00-00

Unavailable

26

O-RING (5X2)

93210-60538-00

Unavailable

27

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

28

SCREW, FLATHEAD (2H7)

90149-06126-00

Unavailable

29

COVER, STRTG MOTOR

(2H7-15436-00-00)

Unavailable

30

BOLT, HEXAGON

97017-06030-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

BOLT, HEXAGON

97017-06020-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

NOZZLE 2

2H7-15148-00-00

Unavailable

35

O-RING (1J7)

93210-09350-00

Unavailable

36

SCREW, FLATHEAD (2H7)

90149-06126-00

Unavailable

37

NOZZLE 3

(2H7-15155-00-00)

Unavailable

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

39

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

40

O-RING (1J7)

93210-09350-00

Unavailable

41

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

42

GASKET

214-11198-01-00

Unavailable

43

PLUG

90340-18073-00

Unavailable

44

O-RING (1J7)

93210-18319-00

Unavailable

45

PLUG, SPEC''L SHAPE

90338-13084-00

Unavailable

46

O-RING (2H7)

93210-13361-00

Unavailable

47

GROMMET (2H7)

90480-11224-00

Unavailable

48

DAMPER, ENG MOUNT 1

2H7-15316-01-00

Unavailable

49

SPACER, ENG MOUNT

(2H7-15317-00-00)

Unavailable

50

DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)

36Y-15326-00-00

Unavailable

51

SPACER, ENG MOUNT

2H7-15327-00-00

Unavailable

52

DAMPER, ENGINE MOUNT 3

2H7-15336-00-00

Unavailable
