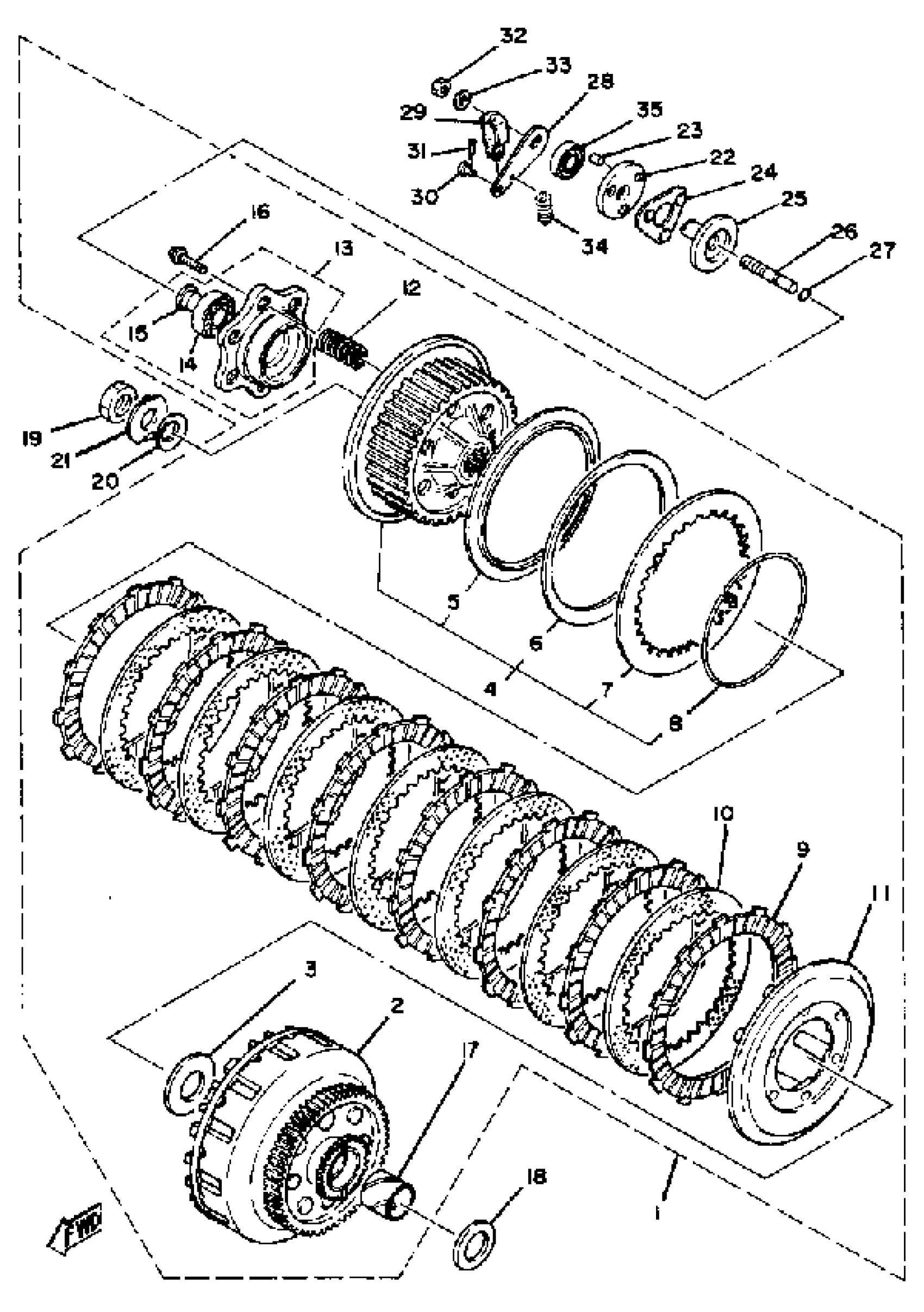

Yamaha XS1100H (XS1100) 1981 CLUTCH Diagram
#
1
CLUTCH ASSEMBLY
(2H7-16301-01-00)
Unavailable
2
PRI DRVN GEAR
(2H7-16150-01-10)
Unavailable
2
PRI DRVN GEAR
(2H7-16150-01-20)
Unavailable
4
. CLUTCH BOSS ASSEMBLY
2H7-16370-00-00
Unavailable
5
.. PLATE, SEAT
2H7-16384-00-00
Unavailable
6
.. SPRING, CLUTCH BOSS
2H7-16383-00-00
Unavailable
11
. PLATE, PRESSURE 2
2H7-16352-00-00
Unavailable
13
. PRESS PLATE CMPL 1
2H7-W1635-00-00
Unavailable
15
.. PIECE, CLUTCH PUSH
2H7-16386-00-00
Unavailable
16
BOLT, FLANGE
95822-06025-00
Unavailable
17
. SPACER 1
2H7-16181-00-10
Unavailable
17
. SPACER 1
2H7-16181-00-20
Unavailable
18
PLATE, THRUST
360-16154-00-00
Unavailable
19
NUT, HEXAGON (2H7)
90170-18221-00
Unavailable
20
WASHER, CONICAL SPRING
90208-18025-00
Unavailable
21
WASHER, LOCK
90215-19139-00
Unavailable
22
HOUSING, PUSH SCREW
2H7-16396-00-00
Unavailable
23
PIN, DOWEL (296)
93606-07082-00
Unavailable
24
RETAINER, BALL
2H7-16395-01-00
Unavailable
25
SCREW, PUSH
2H7-16341-00-00
Unavailable
26
SCREW, CLUTCH ADJUSTING
2H7-16343-00-00
Unavailable
27
O-RING (2H7)
93210-48364-00
Unavailable
28
PUSH LEVER ASSY
4X7-16340-00-00
Unavailable
29
JOINT
214-16389-00-00
Unavailable
30
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
31
. PIN, COTTER
91401-10015-00
Unavailable
32
. NUT
95380-08700-00
Unavailable
33
WASHER, PLAIN
92990-08200-00
Unavailable
34
SPRING TENSION 360163450000
90506-10069-00
Unavailable
35
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
