- XS1100G (XS1100) 1980
STAND FOOTREST

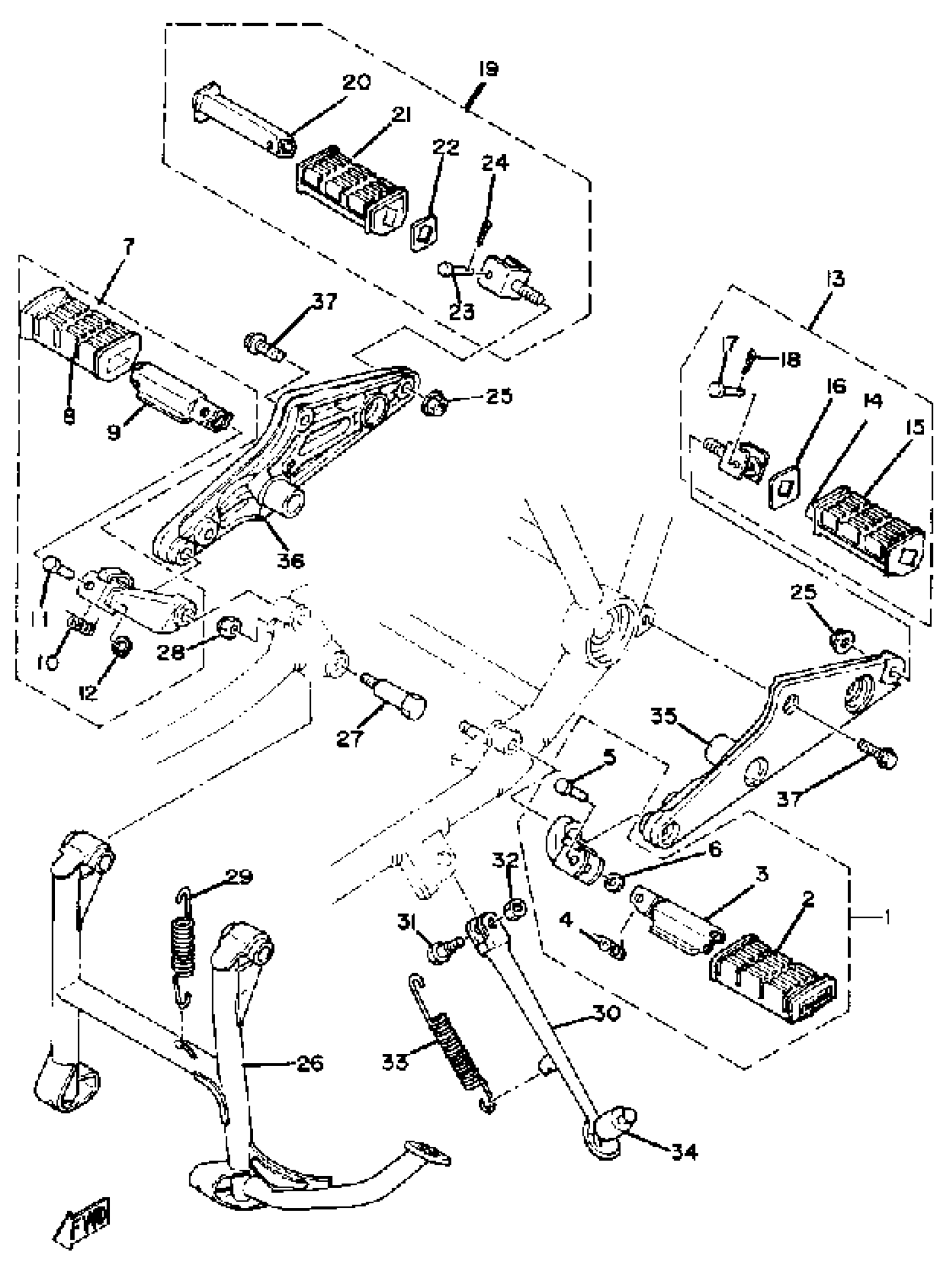

Yamaha XS1100G (XS1100) 1980 STAND FOOTREST Diagram
#
1
FRT FOOTREST ASSEMBLY L
4R1-27410-00-00
Unavailable
2
. COVER, FOOTREST
3H5-27413-01-00
Unavailable
3
. FOOTREST
3H5-27451-00-00
Unavailable
7
FRT FOOTREST ASSEMBLY R
4R1-27420-00-00
Unavailable
8
. COVER, FOOTREST
3H5-27413-01-00
Unavailable
9
. FOOTREST
3H5-27461-00-00
Unavailable
13
RR FOOTREST ASSEMBLY 1
3H5-27430-01-00
Unavailable
14
. FOOTREST, REAR 1
4X7-27431-00-00
Unavailable
15
. COVER, REAR FOOTREST
3H5-27433-00-00
Unavailable
16
. WASHER, SPECIAL SHAPE
90209-18190-00
Unavailable
17
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
18
PIN, COTTER
91490-16020-00
Unavailable
19
REAR FOOTREST ASSEMBLY 2
3H5-27440-01-00
Unavailable
20
. FOOTREST, REAR 2
4X7-27441-00-00
Unavailable
21
. COVER, REAR FOOTREST
3H5-27444-00-00
Unavailable
22
. WASHER, SPECIAL SHAPE
90209-18190-00
Unavailable
23
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
24
PIN, COTTER
91490-16020-00
Unavailable
25
NUT(4KG)
90179-10658-00
Unavailable
26
STAND, MAIN
2H7-27111-00-00
Unavailable
27
BOLT
90109-10440-00
Unavailable
28
NUT, U
95617-10100-00
Unavailable
29
SPRING, TENSION
90506-45199-00
Unavailable
30
STAND, SIDE
2H7-27311-00-00
Unavailable
31
BOLT
90109-10473-00
Unavailable
32
NUT (682)
95380-10700-00
Unavailable
33
SPRING, TENSION (1J7)
90506-28146-00
Unavailable
34
STOPPER
2H7-27314-00-00
Unavailable
35
BRACKET 2
2H9-27442-00-00
Unavailable
36
BRACKET 3
(2H9-27443-00-00)
Unavailable
37
BOLT (4W3)
90105-10186-00
Unavailable
