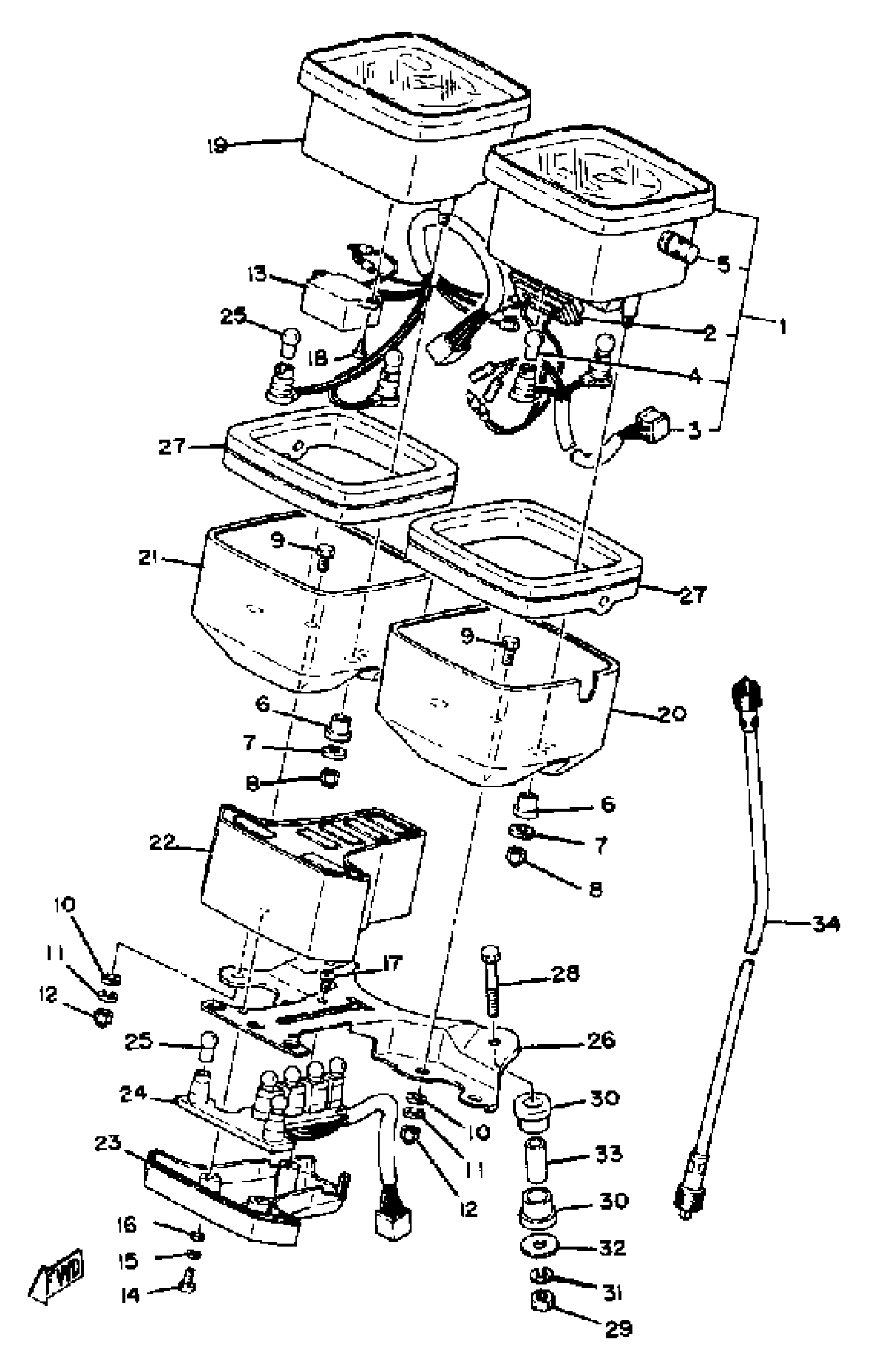

Yamaha XS1100G (XS1100) 1980 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

3H5-83570-A1-00

Unavailable

2

. SENDER

2H7-83556-00-00

Unavailable

3

SOCKET, METER

(2H7-83536-00-00)

Unavailable

4

BULB (12V-3.4W)

123-83516-21-00

$4.26

5

KNOB, TRIP METER

4SV-83578-00-00

$18.49

6

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

7

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

8

NUT (CROWN)

95303-05800-00

Unavailable

9

BOLT

584-83546-00-00

$5.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

WASHER, SPRING

92995-06100-00

Unavailable

12

NUT (J17)

95380-06800-00

$8.49

13

REGULATOR, FL METER

2H7-85755-01-00

Unavailable

14

SCREW, PAN HEAD

98507-04018-00

$2.19

15

WASHER(6TA)

92907-04100-00

$8.49

16

WASHER(JF2)

92907-04600-00

Unavailable

17

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

18

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

19

TACHOMETER ASSEMBLY

2H7-83540-01-00

Unavailable

20

COVER, SPEEDOMETER

2H7-83507-00-00

Unavailable

21

COVER, TACHOMETER

2H7-83508-00-00

Unavailable

22

PILOT BOX, UPPER

2H9-83568-00-00

Unavailable

23

PILOT BOX, LOWER

(2H7-83569-00-00)

Unavailable

24

SOCKET CORD ASSEMBLY

2H7-83509-01-00

Unavailable

25

BULB (12V-3.4W)

123-83516-21-00

$4.26

26

BRACKET, METER

2H7-83519-00-00

Unavailable

27

DAMPER

2H7-83513-01-00

Unavailable

28

BOLT(8BC)

97017-06040-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

Unavailable

30

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLATE

90201-06380-00

Unavailable

33

COLLAR (877)

90387-06249-00

Unavailable

34

SPEEDOMETER CABLE ASSY

16M-83550-01-00

Unavailable
