Description

Price

1

DOUBLE SEAT ASSEMBLY

(3H5-W2472-00-00)

Unavailable

2

COVER, DOUBLE SEAT

(3H5-24731-00-00)

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$8.31

4

PAD, SEAT

1T4-24741-00-00

Unavailable

5

BRACKET, SEAT

2H7-24738-00-00

Unavailable

6

COLLAR (1M1)

90387-06553-00

$6.65

7

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

8

WASHER, SPRING

92995-06100-00

$2.95

9

NUT, HEXAGON

95380-06600-00

$4.11

10

DAMPER, SEAT

2H7-24723-00-00

Unavailable

11

EMBLEM

25G-24786-00-00

Unavailable

12

NUT, SPRING (1L9)

90183-04012-00

$5.53

13

DAMPER, SEAT

2H7-24724-00-00

Unavailable

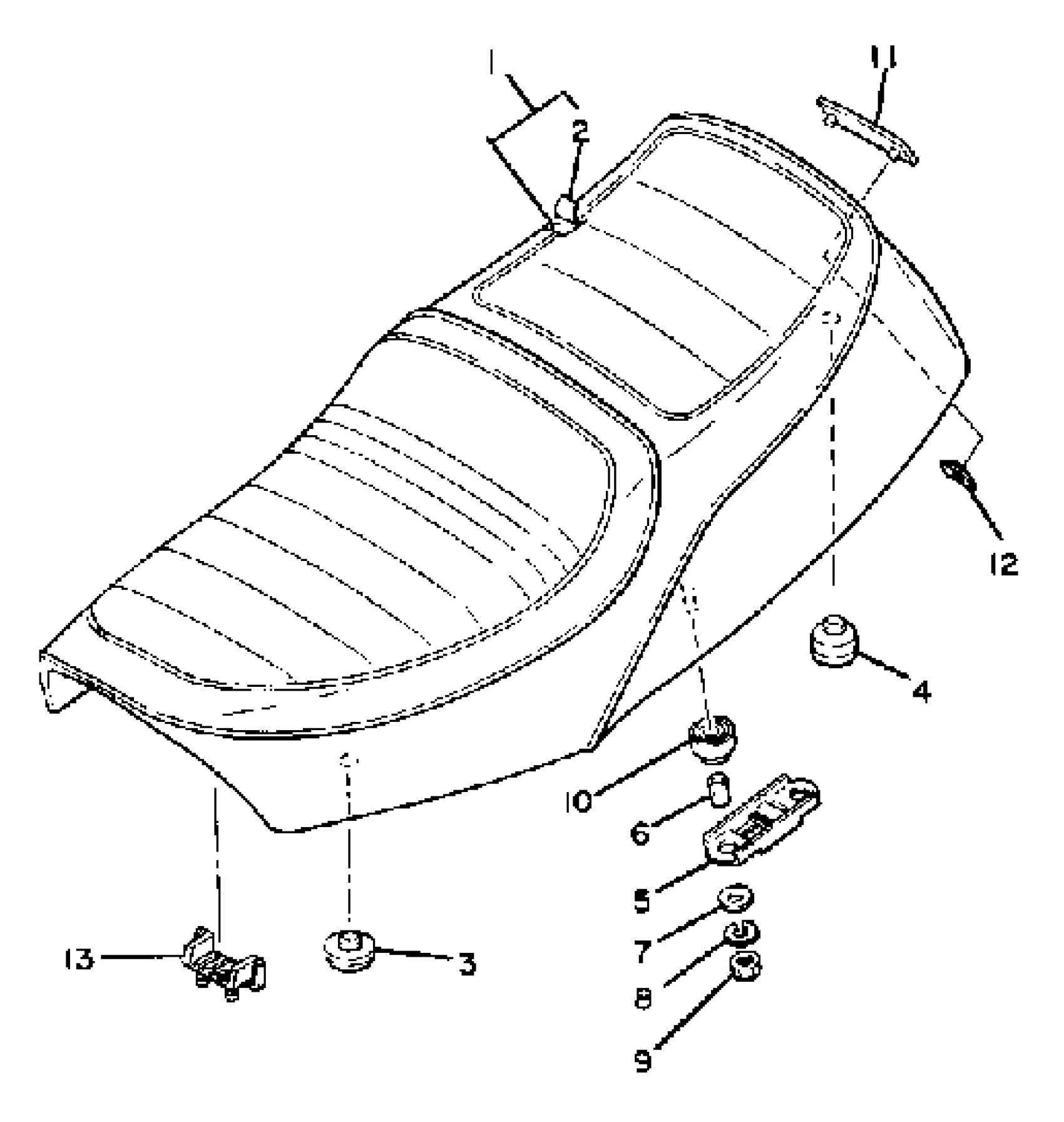

Yamaha XS1100G (XS1100) 1980 SEAT Diagram

DOUBLE SEAT ASSEMBLY

COVER, DOUBLE SEAT

PAD, SEAT

PAD, SEAT

BRACKET, SEAT

COLLAR (1M1)

WASHER, PLATE(36Y)

WASHER, SPRING

NUT, HEXAGON

DAMPER, SEAT

EMBLEM

NUT, SPRING (1L9)

DAMPER, SEAT
