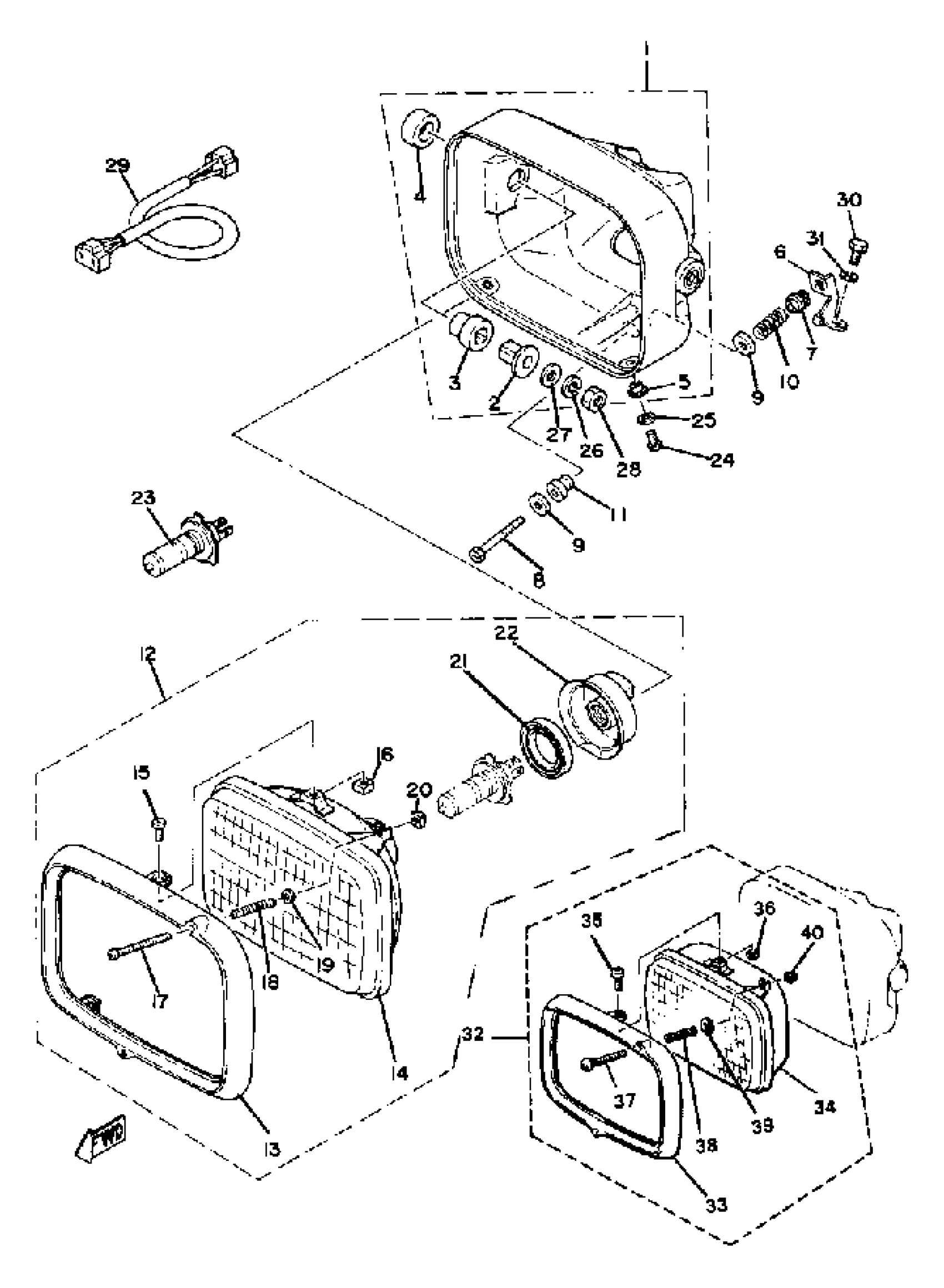

Yamaha XS1100G (XS1100) 1980 HEADLIGHT Diagram

#

Description
Price

1

BODY ASSEMBLY

2H7-84330-00-98

Unavailable

2

. COLLAR, BODY FTNG

2H7-84338-00-00

Unavailable

3

. DAMPER, HEADLIGHT 1

2H7-84366-00-00

Unavailable

4

. DAMPER, HEADLIGHT 2

2H7-84367-00-00

Unavailable

5

. SPACER

1L9-84327-60-00

Unavailable

6

STAY, HEADLIGHT 1

2H7-84318-00-00

Unavailable

7

NUT, ADJUSTING

2H7-84334-00-00

Unavailable

8

BOLT, SPECIAL

2H7-84337-00-00

Unavailable

9

WASHER, SPECIAL

2H7-84327-00-00

Unavailable

10

SPRING,SCREW

1U4-84332-40-00

Unavailable

11

GROMMET

2H7-84354-00-00

Unavailable

12

HEADLIGHT UNIT ASSEMBLY

2H7-84303-A0-00

Unavailable

13

. RIM, HEADLIGHT

2H7-84315-00-00

Unavailable

14

. LENS ASSEMBLY

2H7-84320-A0-00

Unavailable

15

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

16

. NUT

2H9-84326-00-00

Unavailable

17

SCREW, RIM ADJUSTING

4KG-84331-00-00

Unavailable

18

SPRING,SCREW

3AA-84332-00-00

Unavailable

19

WASHER, PLAIN (646)

92990-04600-00

Unavailable

20

NUT, ADJUSTING

5PX-84334-00-00

Unavailable

21

. BULB, HOLDER

2H9-84371-00-00

Unavailable

22

. COVER, SOCKET

2H9-84397-00-00

Unavailable

23

BULB, HEADLIGHT

8V0-84314-10-00

Unavailable

24

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

WASHER, PLAIN

92990-08200-00

Unavailable

28

NUT(6L2)

95333-08600-00

Unavailable

29

CORD, HEADLIGHT

2H7-84359-00-00

Unavailable

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

HEADLIGHT UNIT ASSEMBLY

2H7-84303-A0-00

Unavailable

33

. RIM, HEADLIGHT

2H7-84315-00-00

Unavailable

34

. LENS ASSEMBLY

2H7-84320-60-00

Unavailable

35

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

36

. NUT

2H9-84326-00-00

Unavailable

37

SCREW, RIM ADJUSTING

4KG-84331-00-00

Unavailable

38

SPRING,SCREW

3AA-84332-00-00

Unavailable

39

WASHER, PLAIN (646)

92990-04600-00

Unavailable

40

NUT, ADJUSTING

5PX-84334-00-00

Unavailable
