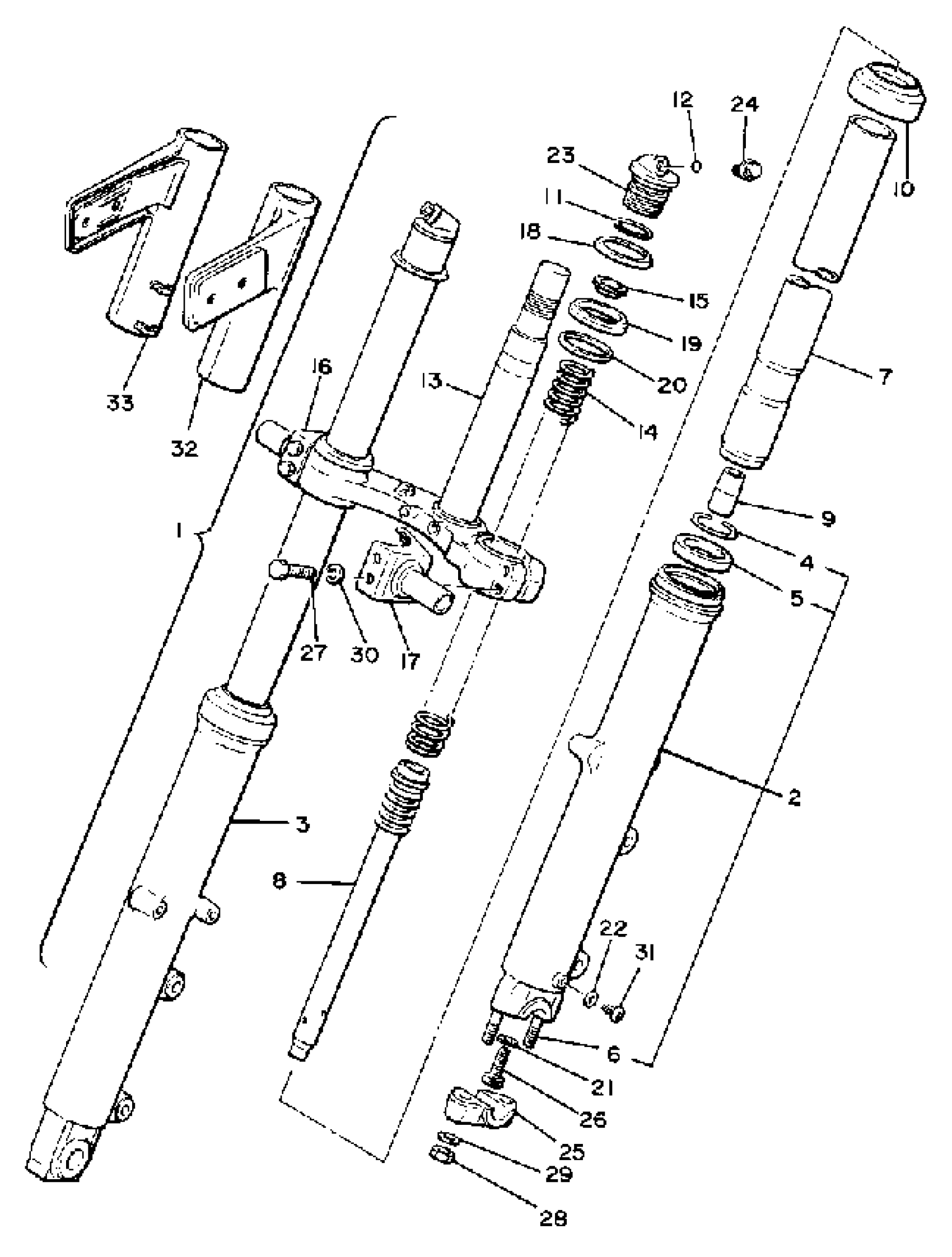

Yamaha XS1100G (XS1100) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3H5-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(3H5-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(3H5-23136-00-00)

Unavailable

4

RING, SNAP

3R4-23153-00-00

$8.99

5

OIL SEAL

41Y-23145-00-00

$33.99

6

BOLT, STUD (278)

90116-08261-00

$4.77

7

. INNER TUBE 1

3H5-23110-00-00

Unavailable

8

CYLINDER, FRTFRK

(3H5-23170-00-00)

Unavailable

9

TAPER SPINDLE

1W1-23173-L0-00

$31.99

10

SEAL, DUST

3H5-23144-00-00

$33.99

11

GASKET

240-23114-00-00

$13.49

12

. O-RING

509-23163-L0-00

Unavailable

13

. UNDER BRACKET

2H9-23340-H0-33

Unavailable

14

SPRING, FRONT FORK

(3H5-23141-00-00)

Unavailable

15

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

16

. COVER, OUTER 2

2H7-23132-00-00

Unavailable

17

. COVER, OUTER 1

2H7-23122-00-00

Unavailable

18

GUIDE, COVER UPPER

2H7-23115-00-00

Unavailable

19

. GUIDE, COVER LOWER

2H7-23116-00-00

Unavailable

20

WASHER

2H7-23163-00-00

Unavailable

21

GASKET

509-23158-L0-00

Unavailable

22

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

23

BOLT, CAP

(3H5-23111-00-00)

Unavailable

24

. AIR VALVE

3H5-23190-00-00

Unavailable

25

HOLDER,AXLE

341-23167-50-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

27

BOLT

97014-08040-00

Unavailable

28

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

32

COVER, UPPER 1

2H7-23121-00-93

Unavailable

33

COVER, UPPER 2

2H7-23131-00-93

Unavailable
