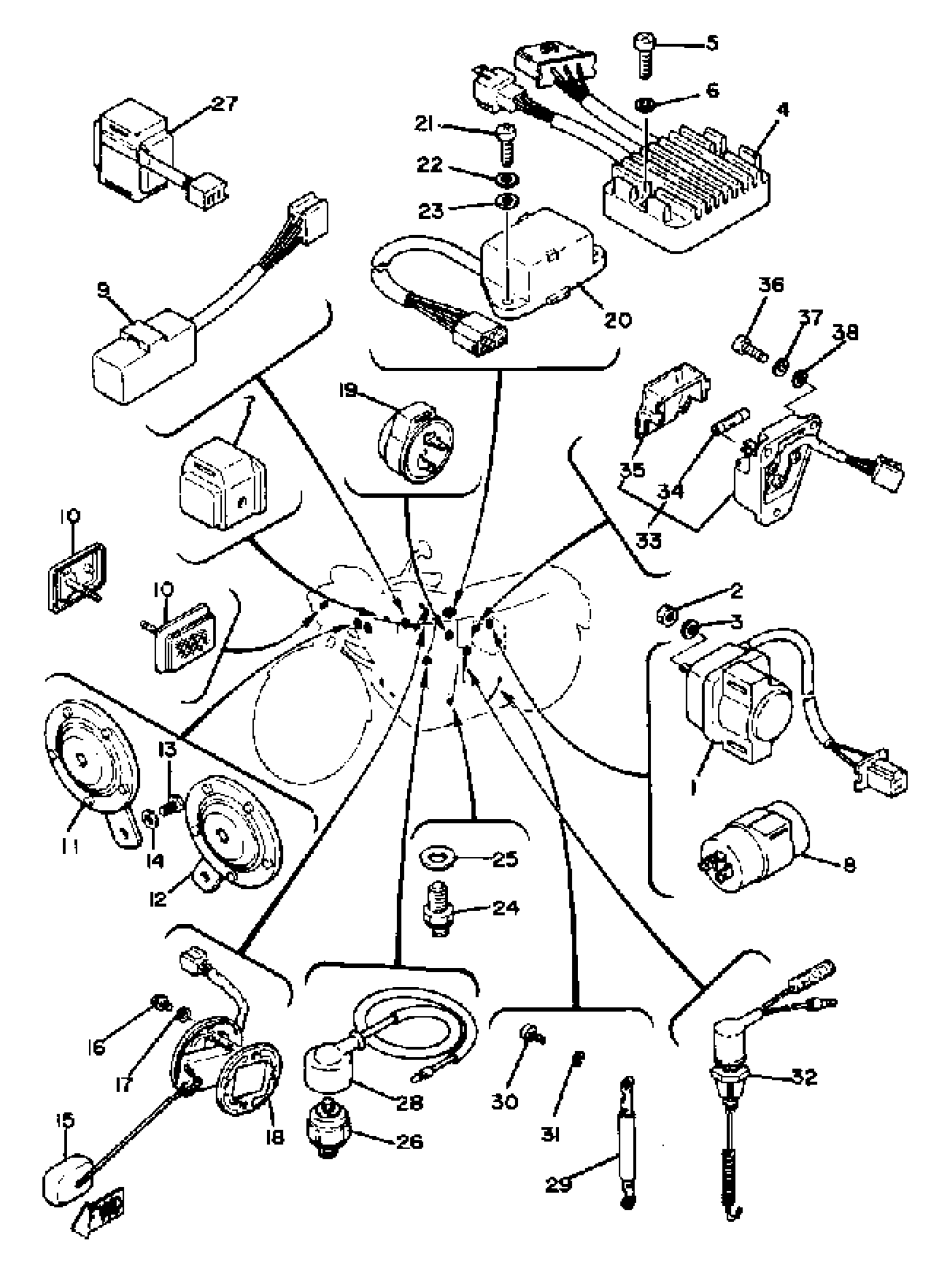

Yamaha XS1100G (XS1100) 1980 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

8

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

9

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

10

FRONT REFLECTOR ASSEMBLY

2H7-85110-00-00

Unavailable

11

HORN

3H5-83371-20-00

Unavailable

12

NO LONGER AVAILABLE

3H5-83371-30-00

Unavailable

13

BOLT, HEXAGON

97017-08016-00

$8.49

14

WASHER(JN5)

92907-08100-00

$8.49

15

SNEDER UNIT ASSEMBLY, FUEL METER

2H7-85752-00-00

Unavailable

16

BOLT, FLANGE

95817-06014-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

19

HAZARD FLASHER RELAY ASSEMBLY

3H5-83360-00-00

Unavailable

20

RESERVE LIGHTING UNIT ASSEMBLY

2F9-84308-00-00

Unavailable

21

SCREW PAN HEAD

98580-06020-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

25

GASKET (5R6)

90430-10171-00

Unavailable

26

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

27

EMERGENCY STOP SWITCH ASSY

2H7-82576-00-00

Unavailable

28

WIRE, LEAD

2H7-82507-00-00

Unavailable

29

WIRE, EARTH LEAD

2H7-82519-00-00

Unavailable

30

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

STOP SWITCH

1J7-82530-02-00

Unavailable

33

TERMINAL ASSEMBLY

2H7-81920-00-00

Unavailable

34

FUSE

1A0-82151-00-00

Unavailable

35

COVER, TERMINAL

(2H7-81916-00-00)

Unavailable

36

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

37

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

38

WASHER, PLAIN (646)

92990-05600-00

Unavailable
