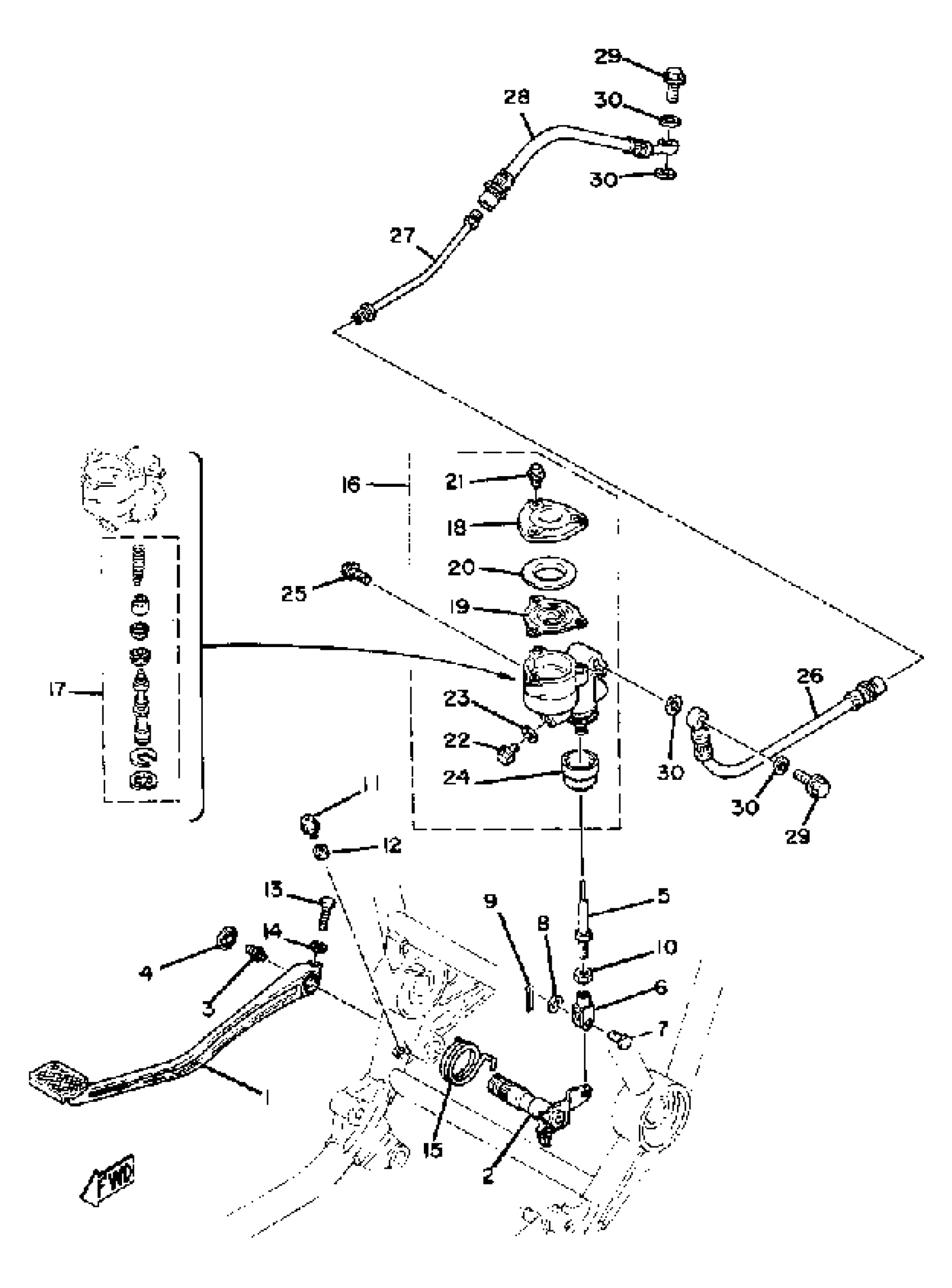

Yamaha XS1100G (XS1100) 1980 BRAKE Diagram
#
Description
Price
1
PEDAL, BRAKE
(2H7-27211-00-93)
Unavailable
2
SHAFT, BRAKE PEDAL
(2H7-27212-00-00)
Unavailable
3
NIPPLE, GREASE
93700-06M03-00
Unavailable
4
GROMMET
90480-07226-00
Unavailable
5
ROD, BRAKE
1J7-27231-00-00
Unavailable
6
JOINT
47X-27222-00-00
Unavailable
9
PIN, COTTER
91490-16020-00
Unavailable
10
. NUT
95380-08700-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
SPRING, TORSION
90508-45363-00
Unavailable
16
MSTR CYLINDER ASSEMBLY
2H7-25850-51-00
Unavailable
17
. CYLINDER KIT, MASTER
2H7-W0042-00-00
Unavailable
18
. CAP, RESERVOIR
1J3-25852-52-00
Unavailable
19
. DIAPHRAGM RESERVOR
1J3-25854-51-00
Unavailable
20
. BUSH, DIAPHRAGM
1J3-25855-51-00
Unavailable
21
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
22
. SCREW, hexagon
90153-10015-00
Unavailable
23
. WASHER, plate
90201-10610-00
Unavailable
24
. BOOT, master cylinder
1J3-25862-51-00
Unavailable
25
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
26
HOSE, BRAKE
2H7-25874-01-00
Unavailable
27
PIPE, BRAKE
2H7-25871-00-00
Unavailable
28
HOSE, BRAKE
2H7-25874-50-00
Unavailable
29
BOLT, UNION(3GM)
90401-10159-00
Unavailable
30
WASHER, PLATE(481)
90201-10118-00
Unavailable
