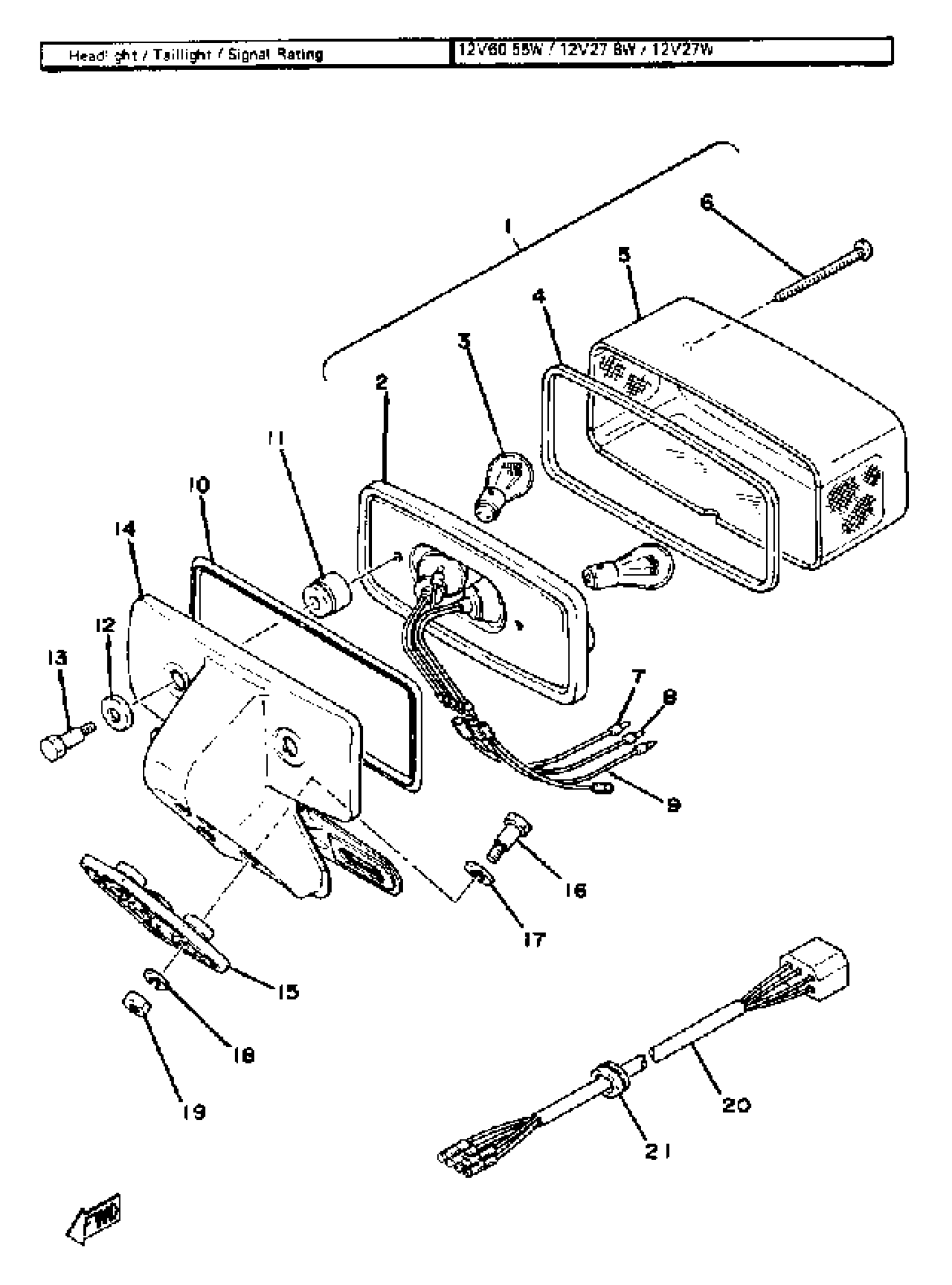

Yamaha XS1100F (XS1100) 1979 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

2A2-84710-60-00

Unavailable

2

. BASE, TAILLIGHT

(1A0-84711-60-00)

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

. LENS, TAILLIGHT

1A0-84721-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

CORD, TAILLIGHT

(2H7-84717-10-00)

Unavailable

8

CORD, TAILLIGHT

(2H7-84717-20-00)

Unavailable

9

CORD, TAILLIGHT

(2H7-84717-30-00)

Unavailable

10

SEAT, BASE

(2H7-84742-00-00)

Unavailable

11

DAMPER

2H7-84753-00-00

Unavailable

12

WASHER, SPECIAL

2H7-84754-00-00

$10.99

13

BOLT, FITTING

2H7-84752-00-00

Unavailable

14

BRACKET, LICENSE

(2H7-84751-60-93)

Unavailable

15

DAMPER, TAIL

2H7-84736-00-00

Unavailable

16

BOLT 337847520000

90109-06005-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

CORD, TAILLIGHT

(2H7-84717-00-00)

Unavailable

21

GROMMET (438)

90480-15061-00

Unavailable
