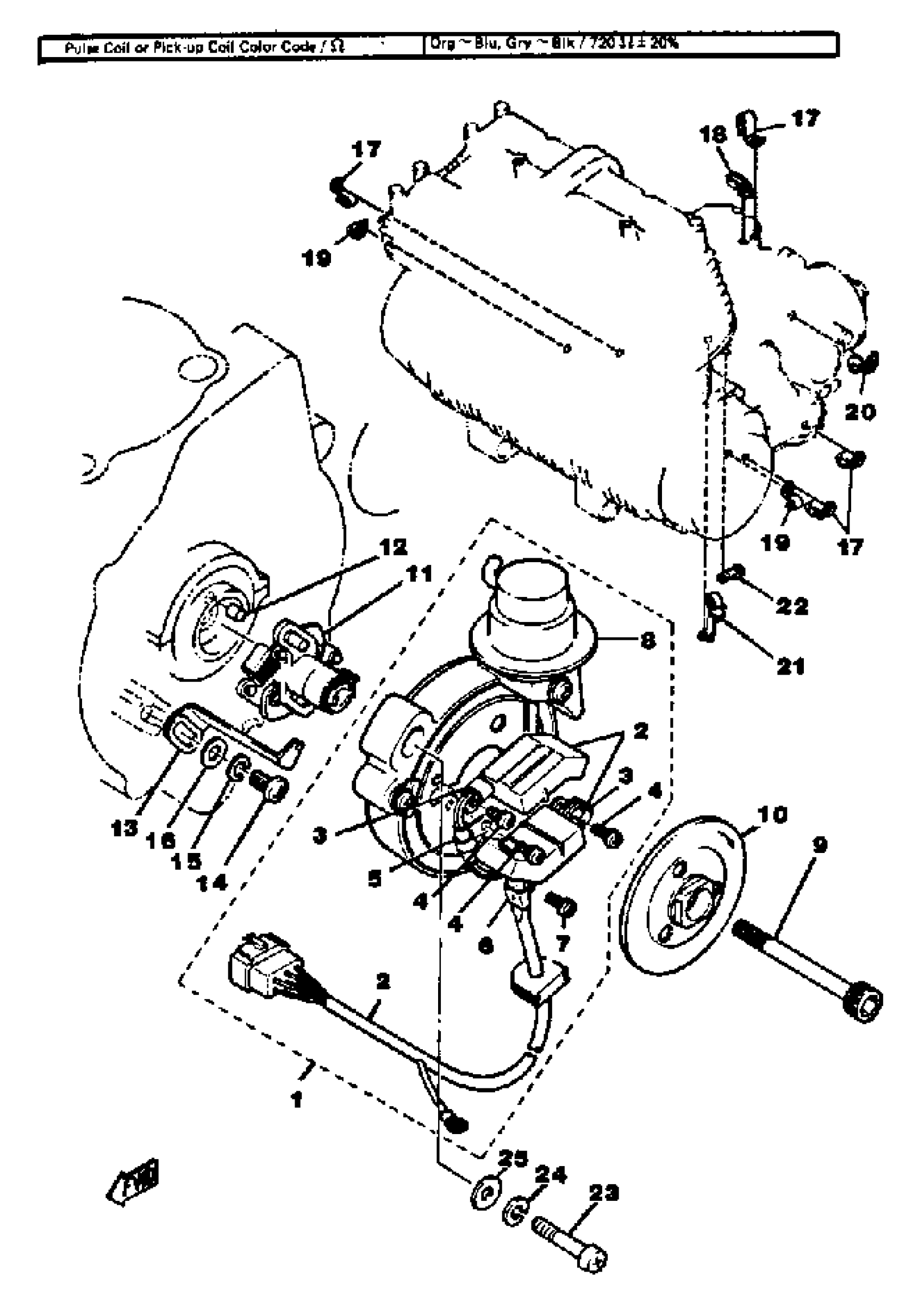

Yamaha XS1100F (XS1100) 1979 PICKUP COIL - GOVERNOR Diagram

#

Description
Price

1

BASE, PICKUP

2H7-81671-10-00

Unavailable

2

. PULSER COIL ASSEMBLY

2H7-81676-10-00

Unavailable

3

CLAMP 2

(2H7-81678-10-00)

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

CLAMP 3

(2H7-81679-10-00)

Unavailable

6

CLAMP 1

(2H7-81677-10-00)

Unavailable

7

SCREW 2

(2H7-81646-10-00)

Unavailable

8

DIAPHRAGM ASSEMBLY

(3H5-81683-09-00)

Unavailable

9

BOLT, HEXAGON SOCKET HEAD(XA1)

90110-08235-00

Unavailable

10

PLATE, TIMING 2

2H7-81672-10-00

Unavailable

11

GOVERNOR ASSEMBLY

2H7-81653-11-00

Unavailable

12

PIN, DOWEL (278)

93604-08071-00

$8.49

13

PLATE, TIMING

2H7-81632-01-00

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

CLAMP(4MX)

90465-06376-00

Unavailable

18

CLAMP

(90465-10123-00)

Unavailable

19

CLAMP(51Y)

90465-08277-00

Unavailable

20

CLAMP

(90465-10137-00)

Unavailable

21

CLAMP

90465-08135-00

Unavailable

22

CLAMP

(90465-08136-00)

Unavailable

23

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLATE

90201-06M08-00

Unavailable
