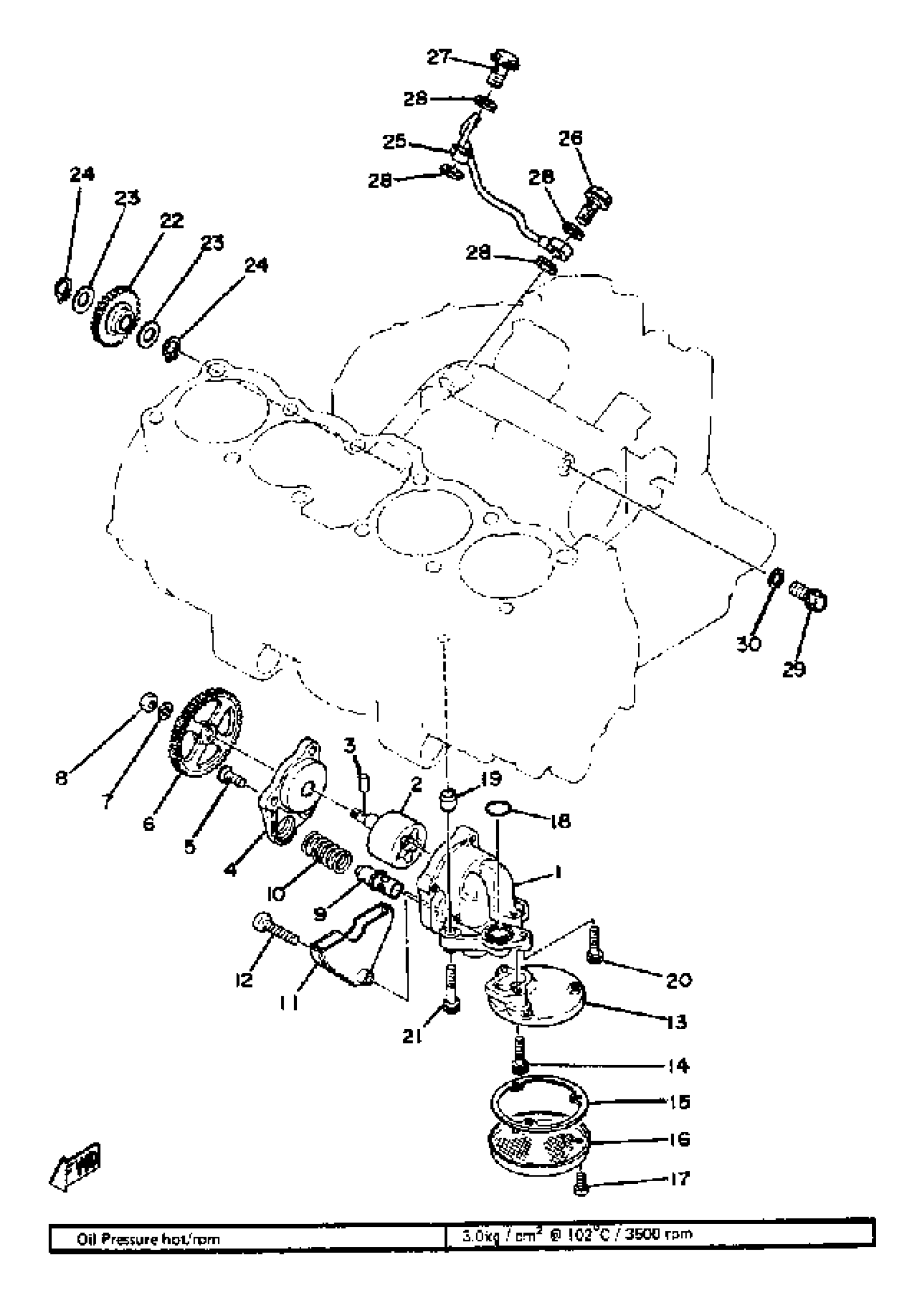

Yamaha XS1100F (XS1100) 1979 OIL PUMP Diagram
#
Description
Price
1
HOUSING, ROTOR
2H7-13336-00-00
Unavailable
2
PUMP SHAFT ASSEMBLY
2H7-13330-00-00
Unavailable
4
COVER, PUMP
(2H7-13316-00-00)
Unavailable
6
GEAR, PUMP DRIVEN
2H7-13325-00-00
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
8
NUT, HEXAGON
95380-06600-00
Unavailable
9
. PLUNGER, RELIEF
2H7-13483-00-00
Unavailable
10
. SPRING, COMPRESSION
90501-18499-00
Unavailable
11
COVER, PUMP GEAR
(2H7-13327-00-00)
Unavailable
13
HOUSING, STRAINER
(2H7-13412-00-00)
Unavailable
15
SEAL, OIL STRAINER
1J7-13415-00-00
Unavailable
16
STRAINER, OIL
2F3-13411-00-00
Unavailable
17
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
18
O-RING (1J7)
93210-18319-00
Unavailable
19
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
22
GEAR, OIL PUMP IDLE
2H7-13341-00-00
Unavailable
23
WASHER, PLATE (525)
90201-12541-00
Unavailable
24
CIRCLIP(10Y)
99009-12400-00
Unavailable
25
PIPE, DELIVERY 1
2H7-13161-00-00
Unavailable
26
BOLT, UNION (16G)
90401-10084-00
Unavailable
27
BOLT, UNION (371-13166-00)
90401-10013-00
Unavailable
28
GASKET (5R6)
90430-10171-00
Unavailable
29
BOLT, UNION
90401-10051-00
Unavailable
30
GASKET (5R6)
90430-10171-00
Unavailable
