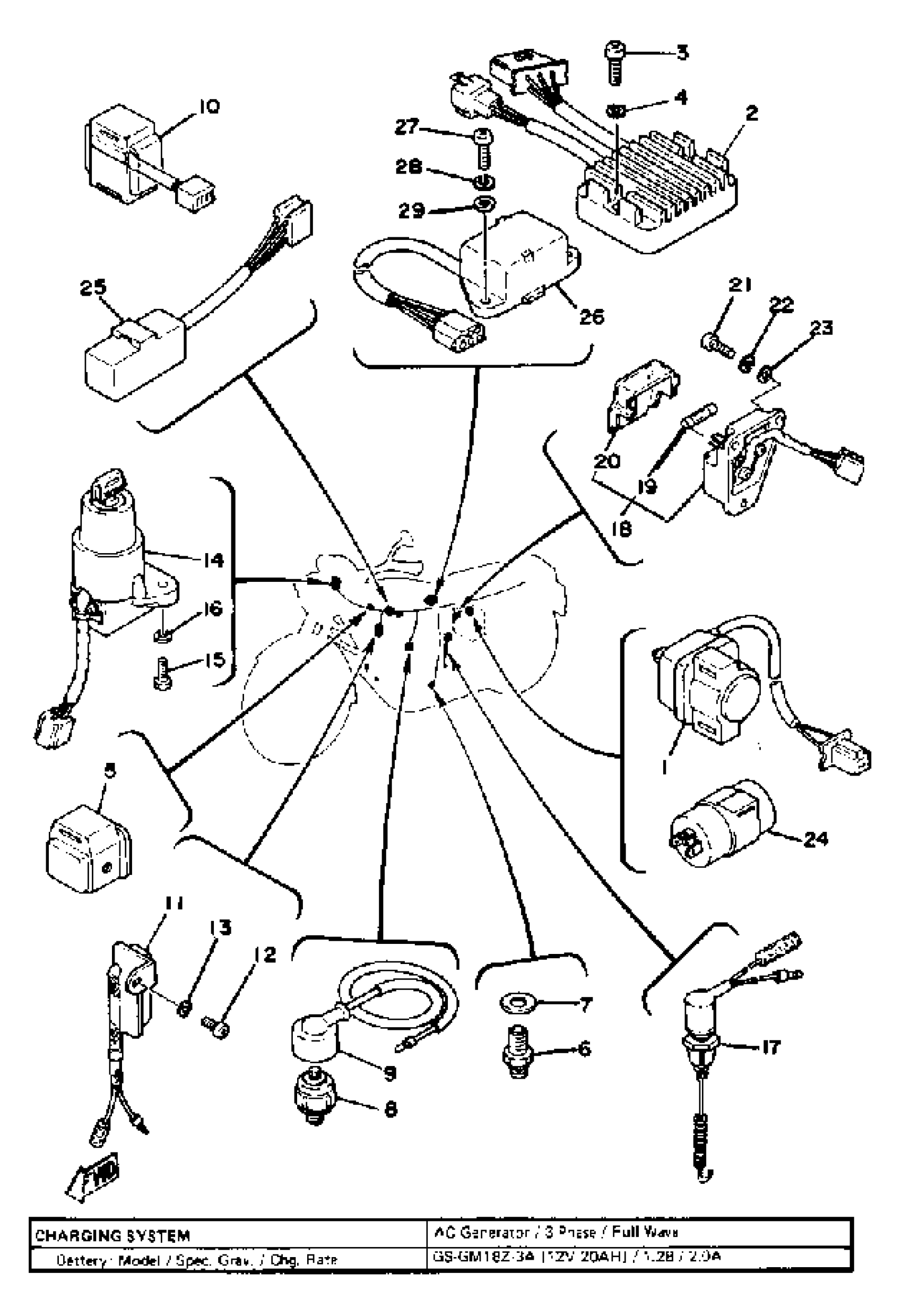

Yamaha XS1100F (XS1100) 1979 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

2

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

3

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

4

WASHER, SPRING

92995-06100-00

Unavailable

5

RELAY ASSEMBLY

2H7-81950-10-00

Unavailable

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

9

WIRE, LEAD

2H7-82507-00-00

Unavailable

10

EMERGENCY STOP SWITCH ASSY

2H7-82576-00-00

Unavailable

11

RESISTOR ASSEMBLY

2H7-85370-01-00

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

MAIN SWITCH ASSEMBLY

2H7-82508-50-00

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

STOP SWITCH

1J7-82530-02-00

Unavailable

18

TERMINAL ASSEMBLY

2H7-81920-00-00

Unavailable

19

FUSE

1A0-82151-00-00

Unavailable

20

COVER, TERMINAL

(2H7-81916-00-00)

Unavailable

21

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

25

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

26

RESERVE LIGHTING UNIT ASSEMBLY

2F9-84308-00-00

Unavailable

27

SCREW PAN HEAD

98580-06020-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
