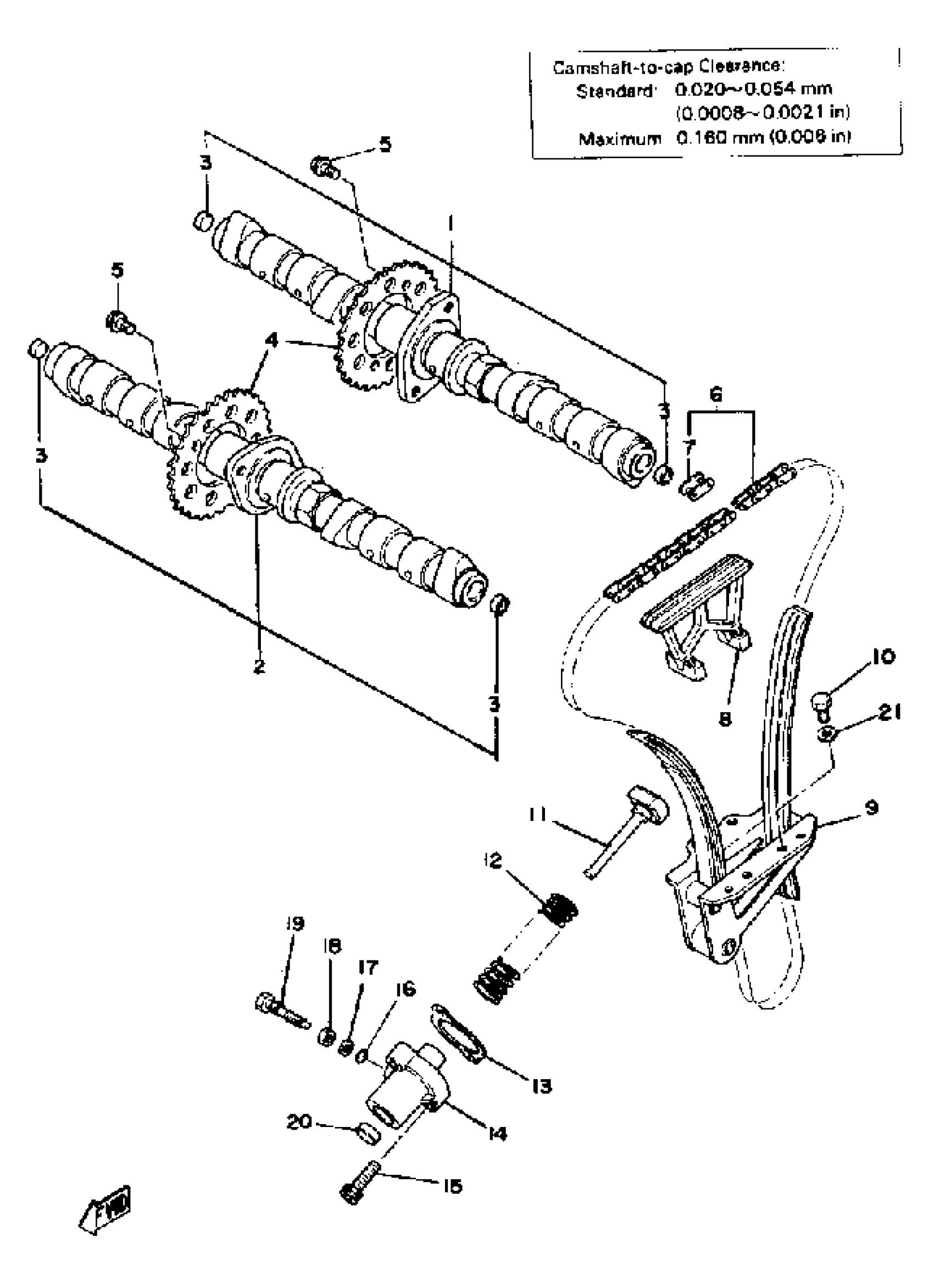

Yamaha XS1100F (XS1100) 1979 CAMSHAFT - CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1 (2H7-12170-00)

2H7-12171-01-00

Unavailable

2

CAMSHAFT 2

(2H7-12181-01-00)

Unavailable

3

PLUG, TIGHT

(90331-10011-00)

Unavailable

4

SPROCKET, CAM CHAIN

1L9-12176-00-00

Unavailable

5

BOLT, FLANGE

90105-07004-00

$5.60

6

CHAIN

94500-02128-00

Unavailable

7

JOINT, CHAIN (583)

94600-02001-00

$7.99

8

GUIDE, STOPPER 2

2H7-12241-00-00

Unavailable

9

CHAIN DAMPER ASSEMBLY

2H7-12250-04-00

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

ROD, CHN TENSIONER

2H7-12217-01-00

Unavailable

12

SPRING, COMPRESSION

90501-16493-00

Unavailable

13

GASKET

2H7-12213-10-00

$5.49

14

CASE, CHAIN TENSNR

2H9-12212-00-00

Unavailable

15

BOLT,SOCKET HEAD

91314-06025-00

$8.49

16

O-RING (26H)

93210-06632-00

Unavailable

17

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

18

. NUT

95380-08700-00

Unavailable

19

BOLT

90109-08442-00

Unavailable

20

PLUG, BLIND 4001539800

90338-14004-00

Unavailable

21

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
