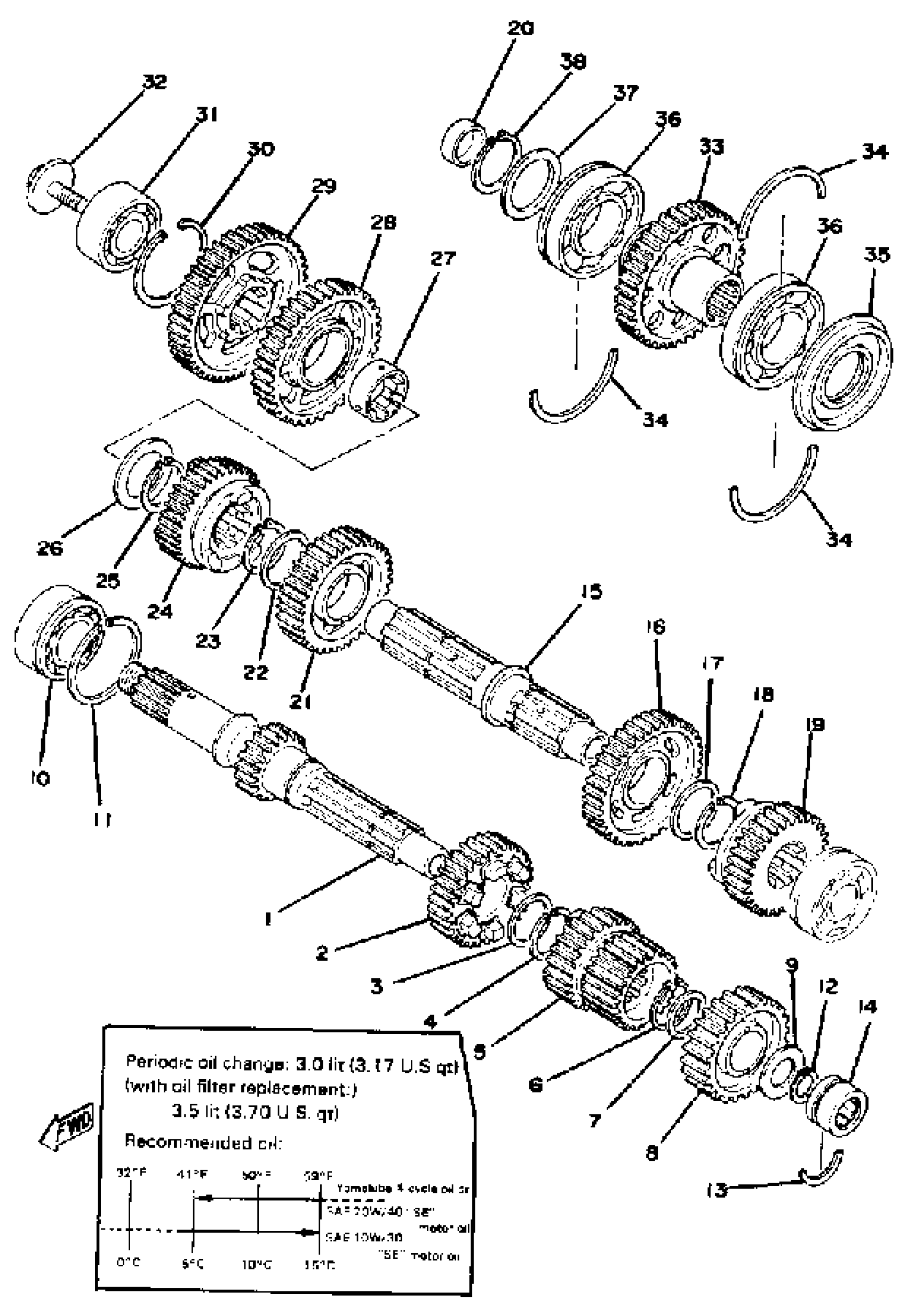

Yamaha XS1100E (XS1100) 1978 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSEMBLY

2H7-17401-00-00

Unavailable

2

GEAR, 4TH PINION

2H7-17141-01-00

Unavailable

2

GEAR, 4TH PINION

2H7-17141-01-00

Unavailable

3

WASHER, GEAR HOLD 1

4A0-17116-00-10

Unavailable

4

CIRCLIP (2H7)

93440-28062-00

$8.49

5

GEAR, 2ND PINION

2H7-17121-00-00

Unavailable

6

CIRCLIP (256)

93410-25017-00

$3.76

7

WASHER, PLATE(59W)

90201-253K0-00

$8.49

8

GEAR, 5TH PINION

2H7-17151-00-00

Unavailable

9

WASHER, PLATE (3Y1)

90201-20792-00

$9.49

10

BEARING

93305-20506-00

Unavailable

11

CIRCLIP (256)

93440-52014-00

$10.49

12

CIRCLIP(1AR)

99009-20400-00

$8.49

13

CIRCLIP (2H7)

93440-32063-00

Unavailable

14

BEARING, CYLINDER.#11

93311-52031-00

Unavailable

15

AXLE, DRIVE

2H7-17421-01-00

Unavailable

16

GEAR, 2ND WHEEL

2H7-17221-01-00

Unavailable

17

WASHER, PLATE

90201-30398-00

Unavailable

18

CIRCLIP, OUTER

93440-30015-00

Unavailable

19

GEAR, 5TH WHEEL

2H7-17251-00-00

Unavailable

20

PLUG, TIGHT

90331-27013-00

Unavailable

21

GEAR, 3RD WHEEL

2H7-17231-01-00

Unavailable

22

WASHER, PLATE

90201-30398-00

Unavailable

23

CIRCLIP(4A6)

99009-30400-00

Unavailable

24

GEAR, 4TH WHEEL

2H7-17241-00-00

Unavailable

25

CIRCLIP(4A6)

99009-30400-00

Unavailable

26

WASHER, PLATE (2H7)

90201-30666-00

Unavailable

27

COLLAR 1

2H7-17258-00-00

Unavailable

28

GEAR, 1ST WHEEL

2H7-17211-00-00

Unavailable

29

GEAR, MIDDLE DRIVE

2H7-17582-00-00

Unavailable

30

. CIRCLIP

93450-52010-00

Unavailable

31

BEARING

93304-20504-00

Unavailable

32

BOLT, WASHER BASED

90105-10085-00

Unavailable

33

GEAR, MIDDLE DRIVEN

(2H7-17583-00-00)

Unavailable

34

CIRCLIP (1J7)

93440-72049-00

Unavailable

35

OIL SEAL, SW-TYPE

93103-35105-00

Unavailable

36

. BEARING

93306-20705-00

Unavailable

37

WASHER,PLATE

99999-03102-00

Unavailable

38

. CIRCLIP, S-TYPE (S-35)

93410-35027-00

Unavailable
