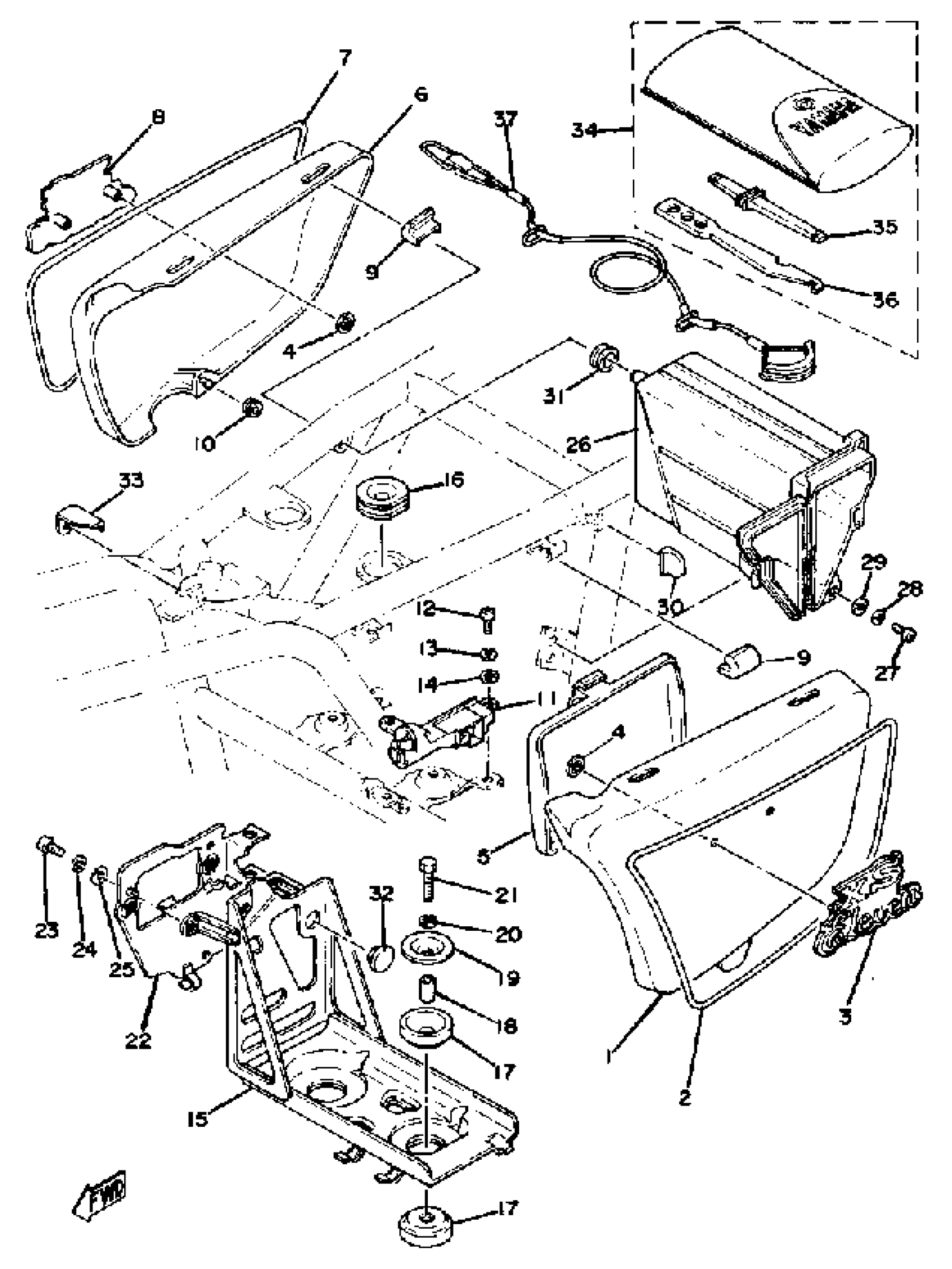

Yamaha XS1100E (XS1100) 1978 SIDE COVER-BATTERY BOX Diagram

#

Description
Price

1

COVER, SIDE 1

2H7-21711-00-H6

Unavailable

2

GRAPHIC 4

(2H7-21784-00-00)

Unavailable

3

EMBLEM 1

2H7-21781-10-00

Unavailable

4

NUT SPRING 116283170100

90183-04005-00

$10.49

5

LID

2H7-28185-00-00

Unavailable

6

COVER, SIDE 2

2H7-21721-00-H6

Unavailable

7

GRAPHIC 5

(2H7-21785-00-00)

Unavailable

8

EMBLEM 2

2H7-21782-10-00

Unavailable

9

DAMPER

2H7-21717-00-00

Unavailable

10

GROMMET (1E6)

90480-15058-00

$8.49

11

SIDE CVR LOCK ASSEMBLY

(4H3-21708-00-00)

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER(6TA)

92907-06600-00

$2.72

15

BOX

(2H7-21170-00-33)

Unavailable

16

DAMPER

2H7-21747-00-00

Unavailable

17

DAMPER

2H7-21746-00-00

Unavailable

18

COLLAR

90387-06387-00

Unavailable

19

WASHER, SPEC''L SHAP

90209-07170-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT, HEXAGON

97017-06030-00

Unavailable

22

PLATE 1

(2H7-21543-00-91)

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

BOX, TOOL

2H7-21171-01-00

Unavailable

27

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLATE

90201-06M08-00

Unavailable

30

GROMMET

90480-16185-00

Unavailable

31

GROMMET (1E6)

90480-15058-00

$8.49

32

GROMMET

(90480-17218-00)

Unavailable

33

WASHER, SPECIAL 1

(2H7-21715-00-00)

Unavailable

34

TOOL KIT

2H7-W2810-00-00

Unavailable

35

. GAUGE, OIL LEVEL

2H7-2815A-00-00

Unavailable

36

. LEVER, WIRE HOOK

2H7-2816A-00-00

Unavailable

37

WIRE, HOOK

(2H7-2814A-00-00)

Unavailable
