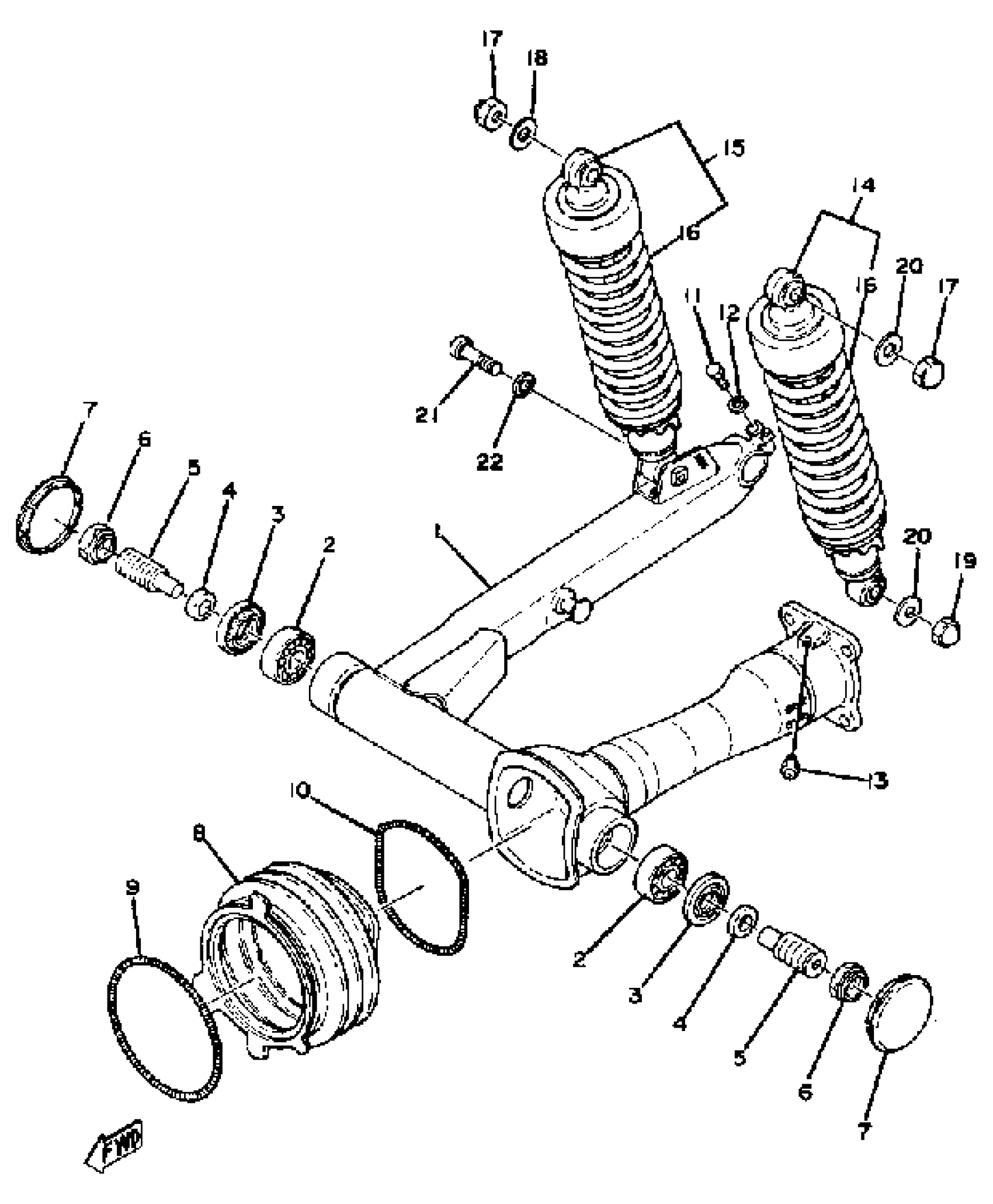

Yamaha XS1100E (XS1100) 1978 REAR ARM-REAR CUSHION Diagram

#

Description
Price

1

REAR ARM

(3H3-22110-00-98)

Unavailable

2

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

3

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

4

COLLAR

90387-17011-00

$15.99

5

SHAFT, PIVOT

15B-22141-00-00

Unavailable

6

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

7

COVER

2H7-2219X-00-00

$35.99

8

BOOT, RUBBER

2H7-22189-00-00

Unavailable

9

SPRING, TENSION (1J7)

90506-07136-00

$12.49

10

SPRING, TENSION (1J7)

90506-07135-00

$15.99

11

BOLT

97013-08035-00

$5.60

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

NIPPLE, GREASE

93700-06M03-00

Unavailable

14

SHKASBASSEMBLYREAR

2H9-22210-00-00

Unavailable

15

SHK/ASB ASSEMBLY, REAR

2H9-22210-10-00

Unavailable

16

SPRING

(2H7-22212-00-00)

Unavailable

17

NUT, CAP (371)

90176-10009-00

Unavailable

18

WASHER, PLATE (2J2)

90201-10696-00

Unavailable

19

NUT, CROWN(3BM)

90176-10073-00

Unavailable

20

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

21

BOLT,DOME HEAD

90106-10052-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
