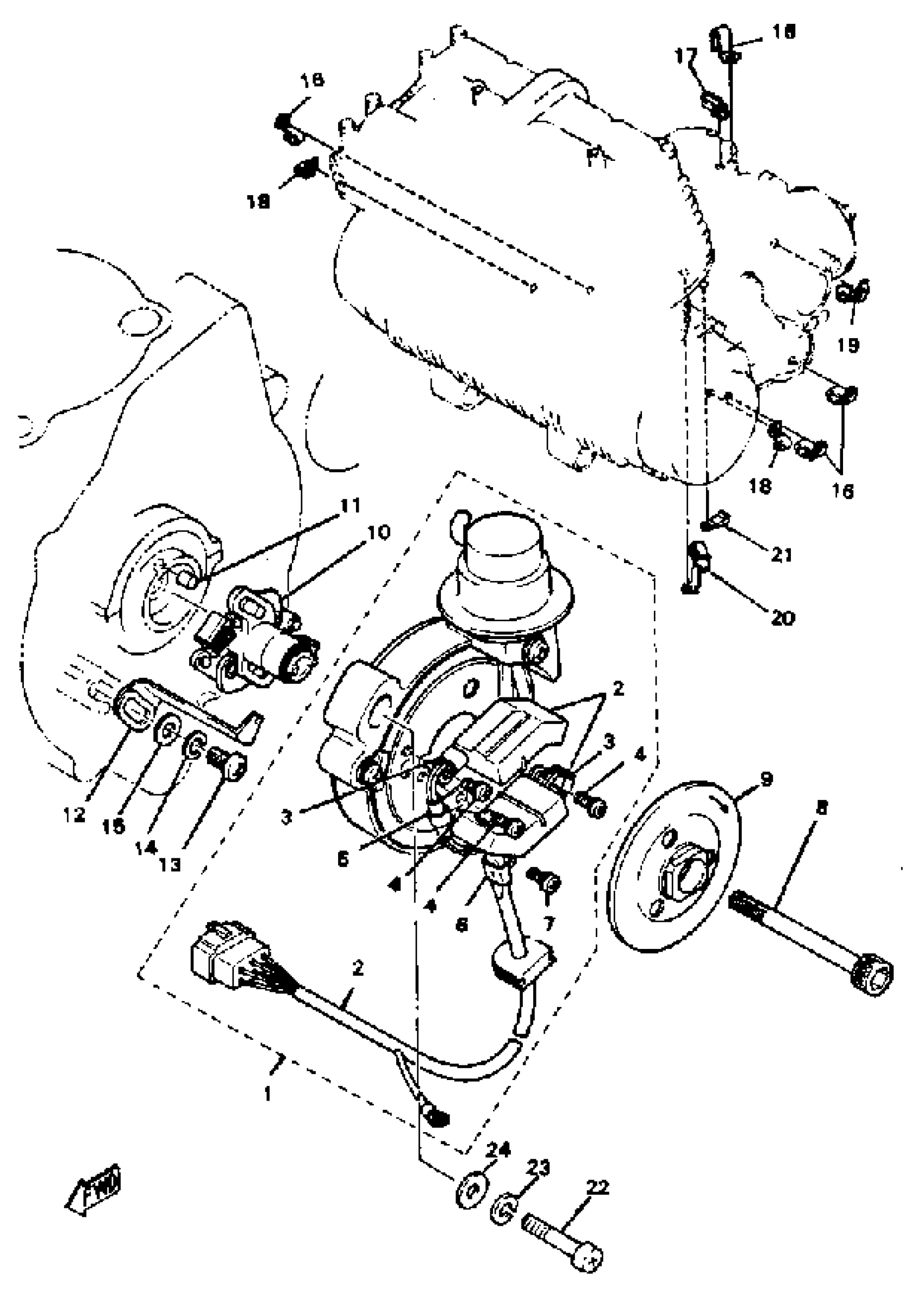

Yamaha XS1100E (XS1100) 1978 PICKUP COIL-CLAMP-GOVERNOR Diagram

#

Description
Price

1

BASE, PICKUP

2H7-81671-10-00

Unavailable

2

. PULSER COIL ASSEMBLY

2H7-81676-10-00

Unavailable

3

CLAMP 2

(2H7-81678-10-00)

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

CLAMP 3

(2H7-81679-10-00)

Unavailable

6

CLAMP 1

(2H7-81677-10-00)

Unavailable

7

SCREW 2

(2H7-81646-10-00)

Unavailable

8

BOLT, HEXAGON SOCKET HEAD(XA1)

90110-08235-00

Unavailable

9

PLATE, TIMING 2

2H7-81672-10-00

Unavailable

10

GOVERNOR ASSEMBLY

2H7-81653-11-00

Unavailable

11

PIN, DOWEL (278)

93604-08071-00

$8.49

12

PLATE, TIMING

2H7-81632-01-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

CLAMP(4MX)

90465-06376-00

Unavailable

17

CLAMP

(90465-10123-00)

Unavailable

18

CLAMP(51Y)

90465-08277-00

Unavailable

19

CLAMP

(90465-10137-00)

Unavailable

20

CLAMP

90465-08135-00

Unavailable

21

CLAMP

(90465-08136-00)

Unavailable

22

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLATE

90201-06M08-00

Unavailable
