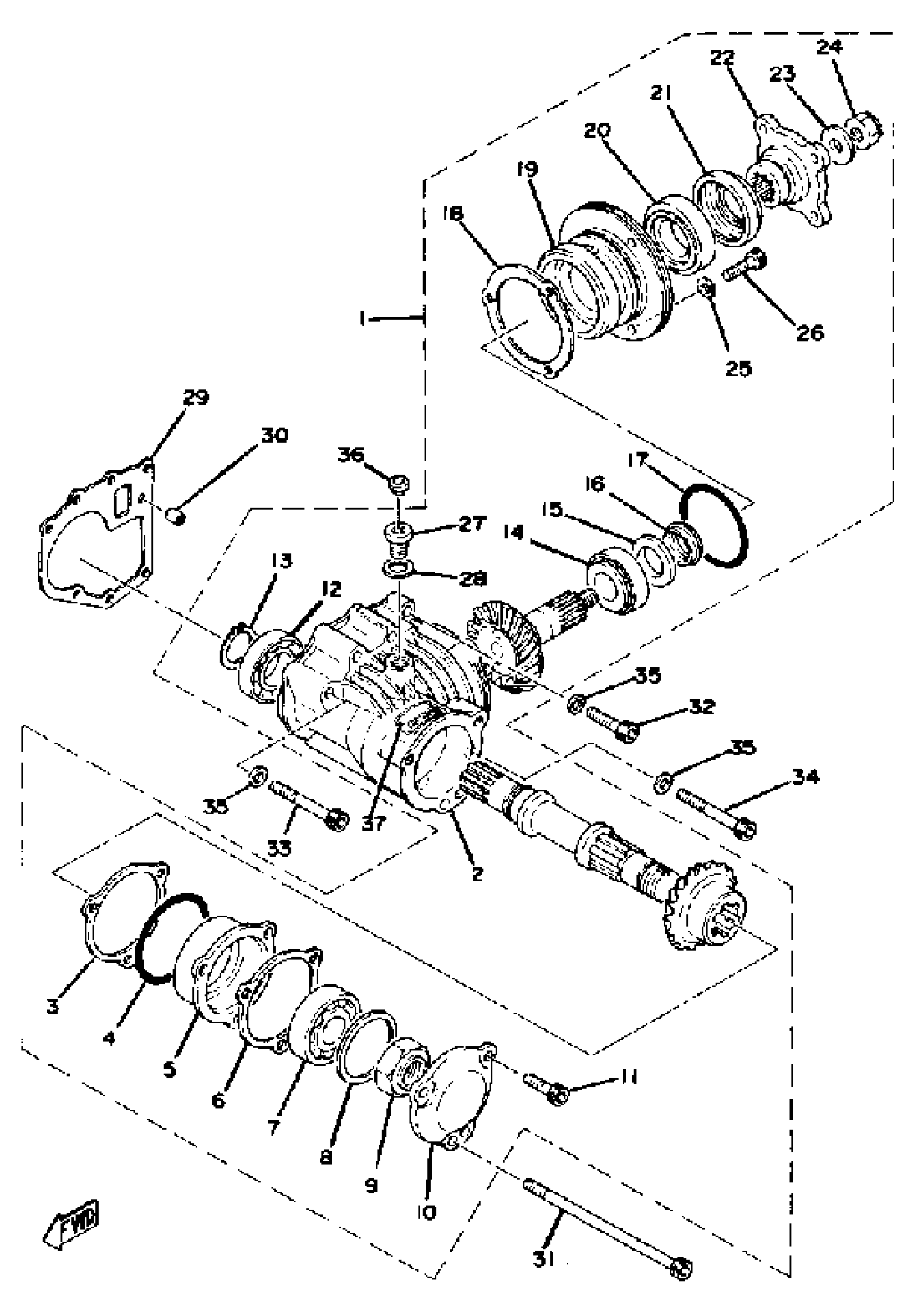

Yamaha XS1100E (XS1100) 1978 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

MIDDLE GR CASE ASSEMBLY

2H7-17501-N0-00

Unavailable

2

HOUSING, MIDDLE GR

(2H7-17511-00-00)

Unavailable

3

. SHIM, PINION

1J7-17531-Y0-15

Unavailable

4

O-RING (1J7)

93210-68347-00

Unavailable

5

. HOUSING, BEARING

2H7-17521-00-00

Unavailable

6

GASKET,HOUSING CAP

1J7-17519-10-00

Unavailable

7

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

8

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

8

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

8

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

9

. NUT, SPEC''L SHAPE

90179-24230-00

Unavailable

10

CAP, HOUSING

(2H7-17538-00-00)

Unavailable

11

BOLT,SOCKET

91314-08030-00

$2.34

12

BEARING(2HR)

93306-00612-00

$47.99

13

CIRCLIP(4A6)

99009-30400-00

$8.49

14

BRG,TAPERED ROLLER 52MM KY

93332-00024-00

Unavailable

15

WASHER, PLATE (1J7)

90201-25634-00

Unavailable

16

SPACER, EXPANSION

2H7-17571-01-00

Unavailable

17

O-RING (2H7)

93210-71360-00

Unavailable

18

. SHIM, PINION

2H7-17531-00-15

Unavailable

19

HOUSING, BEARING

(2H7-17551-00-00)

Unavailable

20

BRG,TAPERED ROLLER 62MM KY

93332-00028-00

Unavailable

21

OIL SEAL (35X63X16.5-1J7)

93101-35085-00

Unavailable

22

. FLANGE, MIDDLE GEAR

1J7-17555-Y0-00

Unavailable

23

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

24

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

25

WASHER, PLATE(47X)

90201-086J0-00

Unavailable

26

BOLT,SOCKET

91314-08030-00

$2.34

27

PLUG, STRAIGHT SCREW

90340-14002-00

Unavailable

28

GASKET

214-11198-01-00

Unavailable

29

GASKET,MDL GR CASE

1J7-17518-10-00

Unavailable

30

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

31

BOLT,SOCKET HEAD

91317-08160-00

Unavailable

32

BOLT, SOCKET

91314-08035-00

Unavailable

33

BOLT

91317-08065-00

Unavailable

34

BOLT, SOCKET HEAD

91311-08105-00

Unavailable

35

WASHER, PLATE(47X)

90201-086J0-00

Unavailable

36

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

37

LABEL, OIL CAUTION

1J7-46181-11-00

Unavailable
