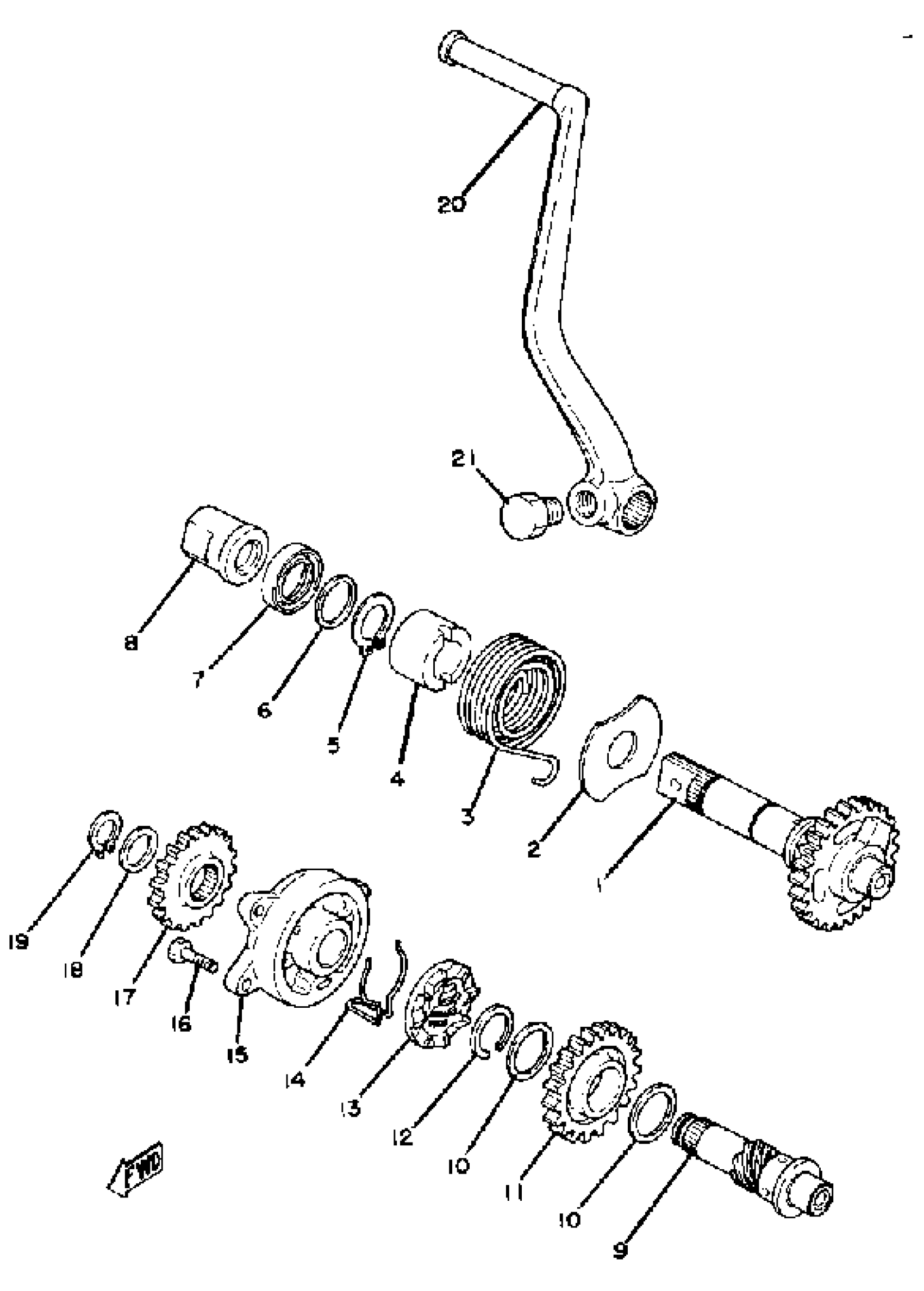

Yamaha XS1100E (XS1100) 1978 KICK STARTER Diagram

#

Description
Price

1

KICK AXLE ASSEMBLY

(2H7-15660-00-00)

Unavailable

2

COVER,SPRING

278-15676-00-00

$5.49

3

SPRING TORSION 278156650000

90508-30051-00

$15.99

4

SPACER

371-15666-00-00

Unavailable

5

CIRCLIP(1AR)

99009-20400-00

$8.49

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

OIL SEAL (20X30X7-371)

93102-20108-00

$11.49

8

COVER, KICK AXLE

2H7-15662-01-00

Unavailable

9

KICK-SHAFT CMPLT 2

(2H7-W1565-00-00)

Unavailable

10

WASHER, PLATE(59W)

90201-253K0-00

$8.49

11

GEAR 3

(2H7-15515-00-00)

Unavailable

12

CIRCLIP (4L0)

93440-25084-00

$5.60

13

WHEEL, RATCHET

(2H7-15671-00-00)

Unavailable

14

CLIP

(371-15687-00-00)

Unavailable

15

HOLDER, KICK GEAR

2H7-15654-00-00

Unavailable

16

BOLT, HEXAGON

97017-06020-00

Unavailable

17

GEAR 2

(2H7-15514-00-00)

Unavailable

18

SHIM 1

(150-17417-00-10)

Unavailable

19

CIRCLIP (525)

93410-17037-00

Unavailable

20

CRANK, KICK

(2H7-15611-00-00)

Unavailable

21

BOLT, KICK CRANK

2H7-15623-00-00

Unavailable
