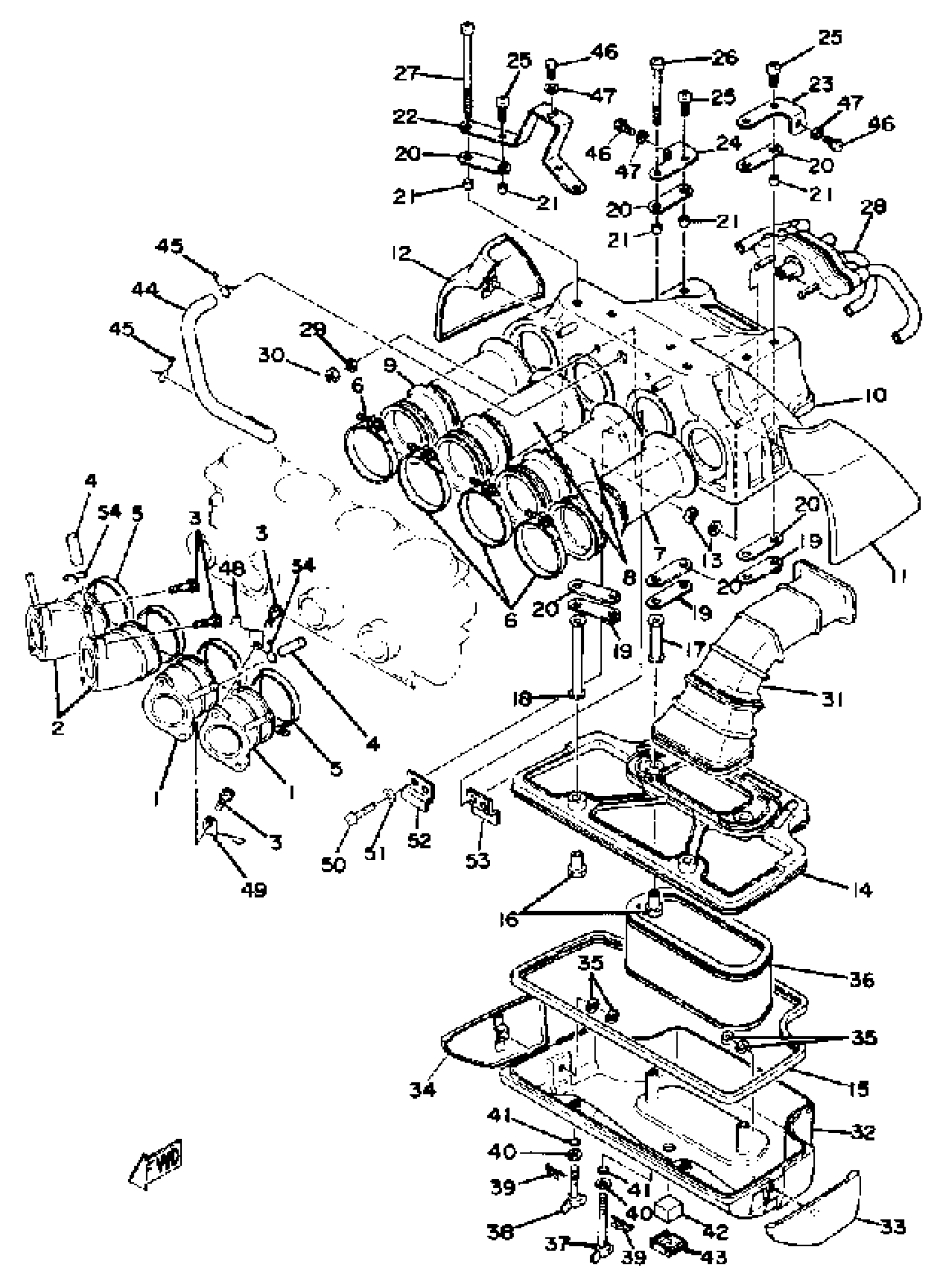

Yamaha XS1100E (XS1100) 1978 INTAKE Diagram
#
1
JOINT, CARBURETOR (L.H)
2H7-13586-00-00
Unavailable
2
JOINT, CARBURETOR 2
2H7-13596-00-00
Unavailable
3
BOLT,SOCKET
91317-06020-00
Unavailable
7
JOINT, AIR CLNR 1
2H7-14453-00-00
Unavailable
8
JOINT, AIR CLNR 2
2H7-14463-00-00
Unavailable
9
JOINT
2H7-14454-00-00
Unavailable
10
AIR CLEANER CASE
2H7-W1441-00-00
Unavailable
11
COVER, CLNR CASE 1
2H7-1441A-00-00
Unavailable
12
COVER, CLNR CASE 2
2H7-1441E-00-00
Unavailable
14
PARTN, AIR CLNR CS
2H7-1441F-00-00
Unavailable
15
SEAL
2H7-14457-02-00
Unavailable
16
NUT, SPEC''L SHAPE
90179-06250-00
Unavailable
17
COLLAR
2H7-14443-00-00
Unavailable
18
COLLAR
2H7-14444-00-00
Unavailable
19
PLATE, CLNR CS FTNG
2H7-14484-00-00
Unavailable
20
SEAL
2H7-14452-01-00
Unavailable
21
COLLAR (3H5)
90387-060A3-00
Unavailable
22
STAY 1
(2H7-14493-00-00)
Unavailable
23
STAY 1
2H7-14498-00-00
Unavailable
24
STAY 2
(2H7-14499-00-00)
Unavailable
25
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
26
SCREW PAN HEAD
98580-06570-00
Unavailable
27
SCREW, PAN HEAD(3VM)
98507-06110-00
Unavailable
28
SEPARATOR, OIL
2H7-14434-01-00
Unavailable
29
WASHER, PLAIN (646)
92990-05600-00
Unavailable
30
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
31
SILENCER, INTAKE 1
2H7-14431-01-00
Unavailable
32
CASE, AIR CLEANER 2
2H7-14421-01-00
Unavailable
33
COVER, CLNR CASE 3
2H7-1442A-00-00
Unavailable
34
COVER, CLNR CASE 4
2H7-1442E-00-00
Unavailable
36
ELEMENT AIR CLEANER
2H7-14451-01-00
Unavailable
37
BOLT, WING
90122-06013-00
Unavailable
38
BOLT, WING (2H7)
90122-06012-00
Unavailable
39
CLIP (156-83525-00)
90468-10050-00
Unavailable
40
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
41
O-RING
93210-05098-00
Unavailable
42
SEAL
36Y-14462-00-00
Unavailable
43
CAP, CLEANER CASE 2
2H7-14422-00-00
Unavailable
44
PIPE, BREATHER 1
2H7-11166-00-00
Unavailable
45
CLIP (371)
90467-14015-00
Unavailable
46
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
47
WASHER, PLAIN (646)
92990-06600-00
Unavailable
48
CLAMP
(90462-10038-00)
Unavailable
49
CLAMP
(90462-10039-00)
Unavailable
50
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
51
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
52
BINDER 1
(2H7-1441G-00-00)
Unavailable
53
BINDER 2
(2H7-1441H-00-00)
Unavailable
54
CLIP
90467-11028-00
Unavailable
