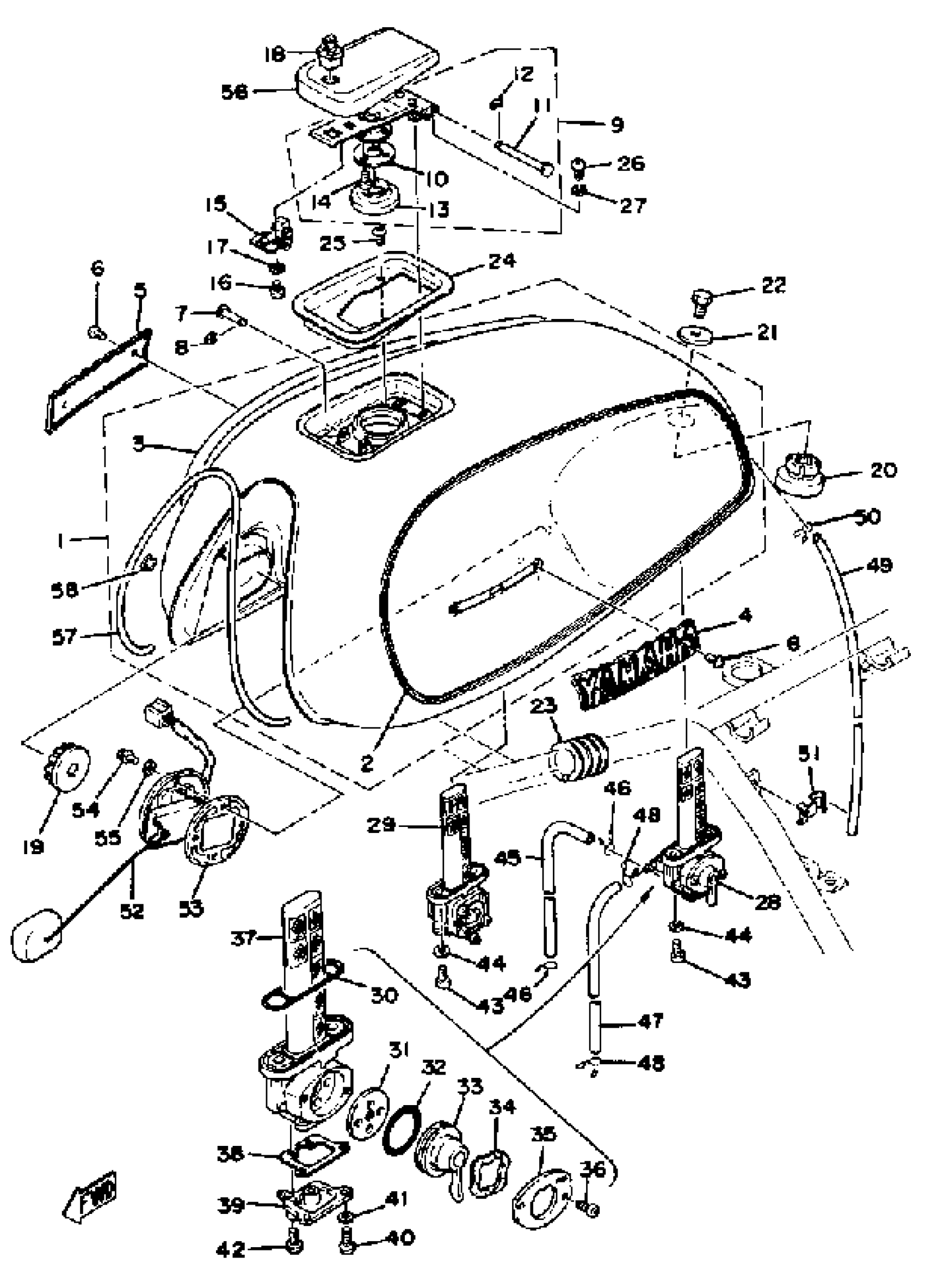

Yamaha XS1100E (XS1100) 1978 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(2H7-24110-00-01)

Unavailable

2

GRAPHIC, FUEL TNK 1

(2H7-24244-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(2H7-24245-00-00)

Unavailable

4

EMBLEM 1

2H7-24161-00-00

Unavailable

5

EMBLEM 2

2H7-24162-00-00

Unavailable

6

SCREW (2F0)

90152-04006-00

$10.49

7

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

8

CIRCLIP (604)

93430-02001-00

$8.49

9

TANK-CAP BODY ASSEMBLY

2H7-W2461-02-00

Unavailable

10

GASKET, CAP 1

(2H7-24641-01-00)

Unavailable

11

PIN 1

(2H7-24623-00-00)

Unavailable

12

CIRCLIP (604)

93430-02001-00

$8.49

13

. GASKET, CAP

437-24612-00-00

Unavailable

14

SCREW, TAPPING

(97701-30506-00)

Unavailable

15

HOOK/SLIDE CAM ASSEMBLY

2H7-W2462-00-00

Unavailable

16

SCREW, BINDING

98907-03008-00

Unavailable

17

WASHER, SPRING

92990-03100-00

Unavailable

18

CAP ASSEMBLY

2H7-24602-00-00

Unavailable

19

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

20

DAMPER, LOCATING 2

2H7-24182-00-00

Unavailable

21

WASHER 1902345600

90201-08310-00

Unavailable

22

BOLT(62E)

97013-08012-00

Unavailable

23

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

24

COVER, FILTER

2H7-2414A-00-00

Unavailable

25

SCREW, BINDING

98907-05008-00

Unavailable

26

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

28

FUEL COCK ASSEMBLY 1

3G1-24500-03-00

Unavailable

29

FUEL COCK ASY 2

2G2-24510-05-00

Unavailable

30

O-RING

1J7-24512-00-00

Unavailable

31

VALVE

16G-24523-00-00

Unavailable

32

SEAL, FUEL COCK

1J7-24534-00-00

Unavailable

33

LEVER, COCK

(2H7-24524-00-00)

Unavailable

33

LEVER, COCK

(2H7-24524-10-00)

Unavailable

34

. WASHER, WAVE

1J7-24518-00-00

Unavailable

35

PLATE, LVR FITTING

(2H7-24525-00-00)

Unavailable

35

PLATE, LVR FITTING

(2H7-24525-10-00)

Unavailable

36

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

37

. NET, FILTER 1

1J7-24514-02-00

Unavailable

38

GASKET, DRAIN COVER

1J7-24522-00-00

Unavailable

39

CUP, FILTER

(2H7-24521-00-00)

Unavailable

40

SCREW, PAN HEAD

98517-04012-00

Unavailable

41

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

42

SCREW, PAN HEAD

98507-04018-00

Unavailable

43

SCREW 366241430000

90149-06008-00

Unavailable

44

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

45

HOSE (L450)

90445-10144-00

Unavailable

46

CLIP

90467-090A2-00

Unavailable

47

HOSE (L200)

90445-07176-00

Unavailable

48

CLIP (1J7)

90467-07029-00

Unavailable

49

HOSE (L730)

90445-105K7-00

Unavailable

50

CLIP

90467-090A2-00

Unavailable

51

CLAMP

(90462-10040-00)

Unavailable

52

SNEDER UNIT ASSEMBLY, FUEL METER

2H7-85752-00-00

Unavailable

53

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

54

BOLT, FLANGE

95817-06014-00

Unavailable

55

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

56

BODY, CAP

2H7-24611-00-00

Unavailable

57

PLATE, MOLD

3EB-24189-00-00

Unavailable

58

CLIP

90468-03063-00

Unavailable
