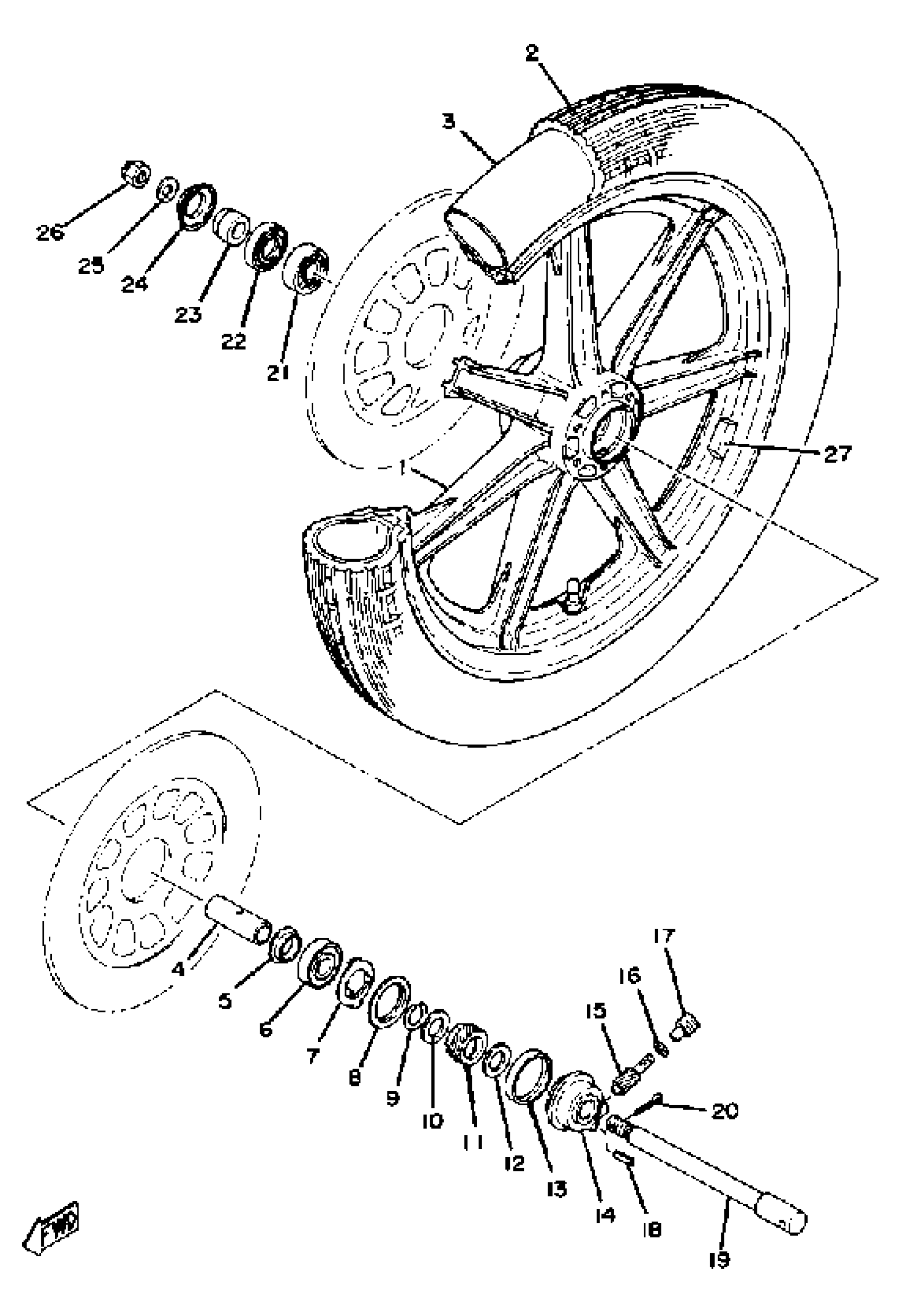

Yamaha XS1100E (XS1100) 1978 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT (2H9-25168-00)

2H9-25168-29-00

Unavailable

2

350H19BS S21F 4PLY

(94135-19345-00)

Unavailable

3

TUBE(42X)

94210-19222-00

$49.99

4

SPACER 341251170100

90560-17126-00

$16.99

5

FLANGE, SPACER

146-25315-00-00

$7.99

6

BEARING(4HM)

93306-30317-00

$39.99

7

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

8

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

9

RING, STOP

341-25137-00-00

Unavailable

10

WASHER PLATE 341251470000

90201-25286-00

Unavailable

11

GEAR, DRIVE

341-25135-01-00

Unavailable

12

WASHER PLATE 152172260000

90201-25490-00

$10.49

13

OIL SEAL (45X56X6)

93105-45017-00

$14.99

14

GEAR UNIT ASSY

4TR-25190-20-00

$115.99

15

GEAR, METER

306-25138-00-00

Unavailable

16

SHIM, ROD

102-18416-00-00

Unavailable

17

BUSH

306-25136-00-00

Unavailable

18

PIN, SPRING (V60)

91609-20014-00

Unavailable

19

AXLE, WHEEL

99999-04072-00

Unavailable

20

PIN, COTTER

91490-30030-00

Unavailable

21

BEARING(4HM)

93306-30317-00

$39.99

22

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

23

COLLAR

90387-17433-00

Unavailable

24

COVER, HUB DUST

341-25118-00-00

Unavailable

25

WASHER, PLAIN

92990-14200-00

Unavailable

26

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable
