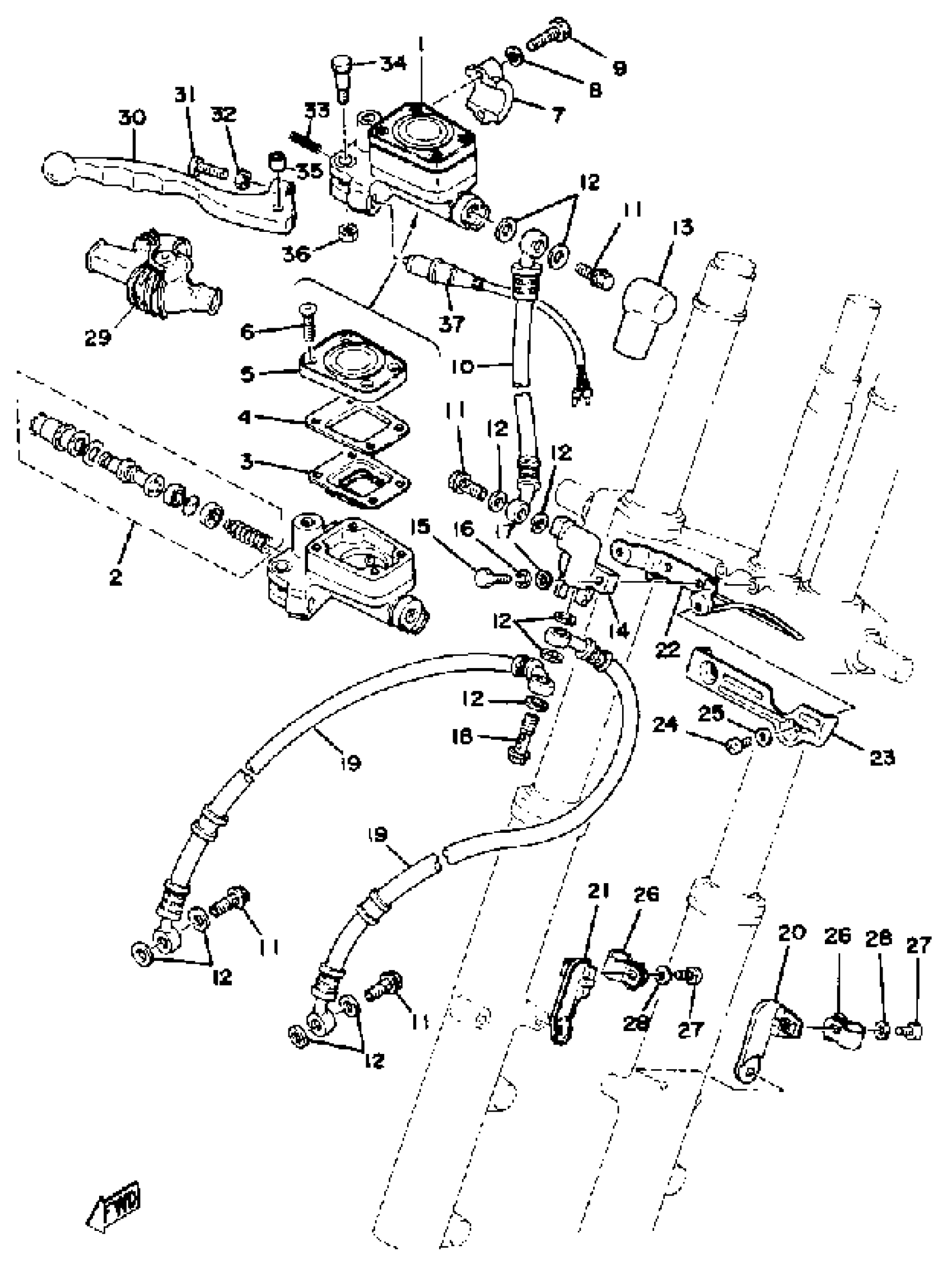

Yamaha XS1100E (XS1100) 1978 FRONT MASTER CYLINDER-BRAKE HOSE Diagram

#

Description

Price

1

MSTR CYLINDER ASSEMBLY

1J3-25850-23-00

Unavailable

2

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

3

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

Unavailable

4

. GASKET

1J3-25855-01-00

Unavailable

5

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

6

SCREW, FLAT

98707-05014-00

$9.49

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT

90101-06M27-00

Unavailable

10

HOSE, BRAKE 1

2H7-25872-00-00

Unavailable

11

BOLT, UNION(3GM)

90401-10159-00

$11.49

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

14

JOINT

1J7-25885-01-00

Unavailable

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

BOLT, UNION

90401-10038-00

Unavailable

19

HOSE, BRAKE 2

2H7-25873-00-00

Unavailable

20

HOLDER, BRKE HOSE 1

2H7-25875-00-00

Unavailable

21

HOLDER, BRKE HOSE 2

2H7-25876-00-00

Unavailable

22

GUIDE, CABLE

(2H7-26399-00-00)

Unavailable

23

HOLDER, CABLE

2H7-23317-00-00

Unavailable

24

SCREW, PAN

98517-06012-00

Unavailable

25

WASHER(6TA)

92907-06600-00

Unavailable

26

CLAMP 1

90461-08031-00

Unavailable

27

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

Unavailable

30

LEVER (R.H)

2H7-83922-20-00

Unavailable

31

SCREW (2L0)

90149-06131-00

Unavailable

32

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

33

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable

34

BOLT (4L0)

90109-06577-00

Unavailable

35

BUSH, SPEC''L NYLON

90386-08094-00

Unavailable

36

NUT, SELF-LOCKING

95617-06100-00

Unavailable

37

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable
