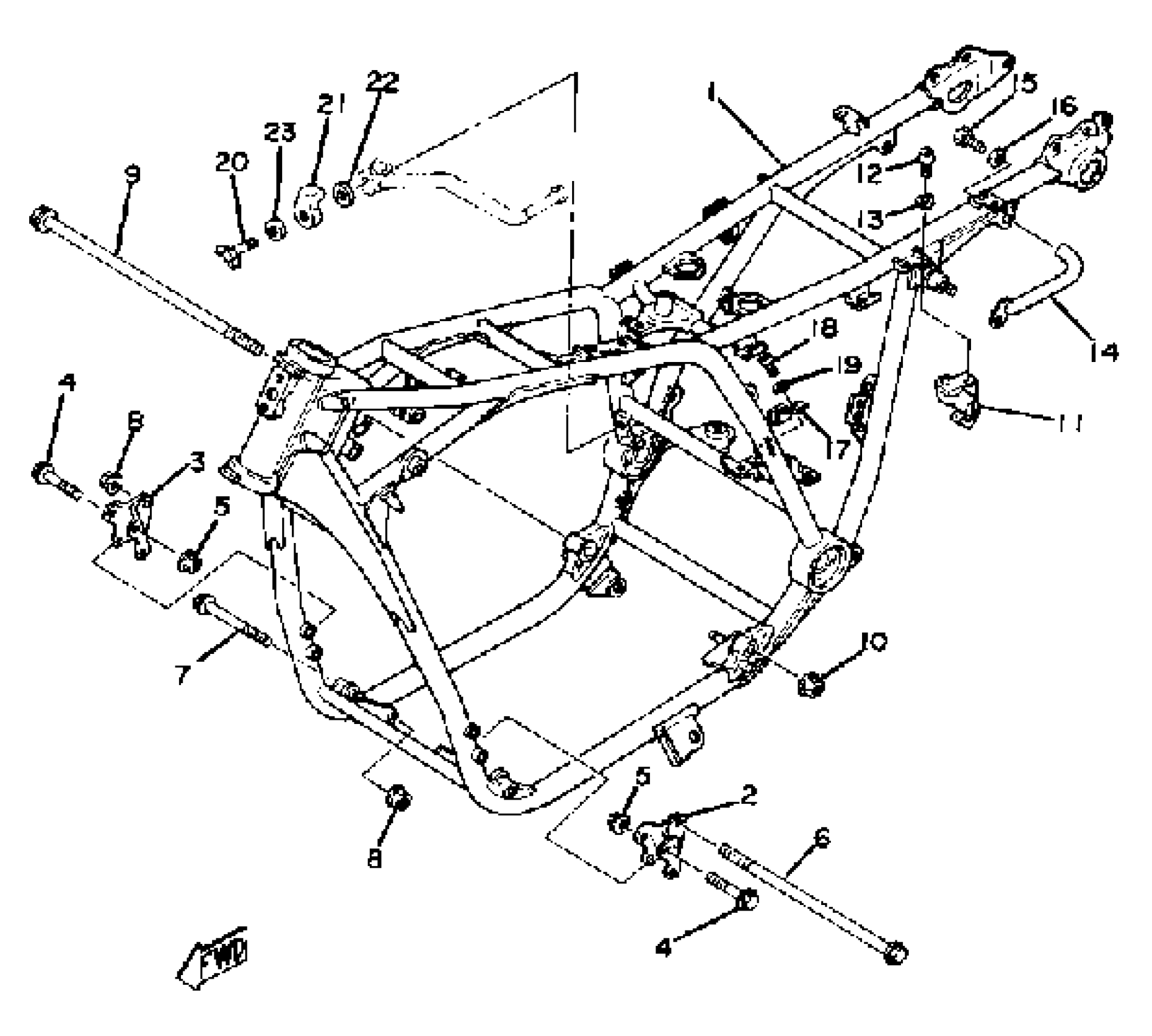

Yamaha XS1100E (XS1100) 1978 FRAME Diagram

#

Description
Price

1

FRAME

(2H7-21110-01-33)

Unavailable

2

STAY, ENGINE 2

2H7-21315-00-00

Unavailable

3

STAY, ENGINE 3

(2H7-21316-00-00)

Unavailable

4

BOLT, WASHER BASED

90105-08107-00

Unavailable

5

NUT(55X)

90179-08491-00

$8.49

6

BOLT, ENGINE MOUNTING

90105-10056-00

Unavailable

7

BOLT, WASHER BASED (2H7)

90105-10105-00

$12.49

8

NUT(4KG)

90179-10658-00

$9.49

9

BOLT, FLANGE

90105-12047-00

Unavailable

10

NUT(3EF)

90179-12657-00

$5.60

11

HELMET HANGER ASSEMBLY

2H7-21308-00-00

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

HANDLE, STANDING

(2H7-21165-00-00)

Unavailable

15

BOLT, HEXAGON

97013-08016-00

$1.01

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

HOOK

(2H7-2139V-00-00)

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

BOLT, WING

90122-06007-00

Unavailable

21

COVER

2H7-2139W-00-00

Unavailable

22

DAMPER

(2H7-2139X-00-00)

Unavailable

23

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable
