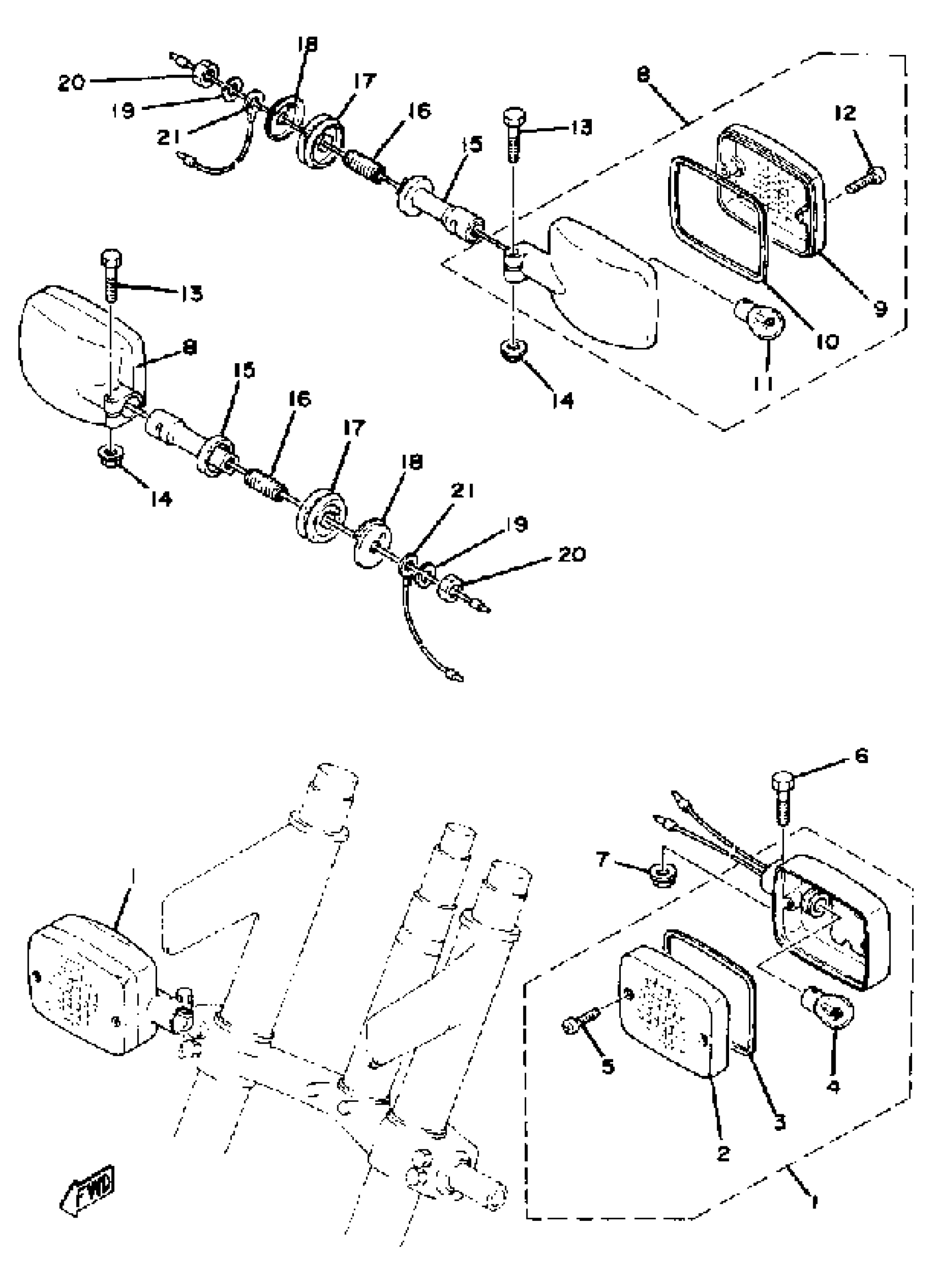

Yamaha XS1100E (XS1100) 1978 FLASHER LIGHT Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

2H7-83310-70-00

Unavailable

2

. LENS, FLASHER

2H7-83312-00-00

Unavailable

3

. GASKET, FLSHR LENS

2H7-83313-00-00

Unavailable

4

. SCREW, PAN HEAD

98580-04020-00

Unavailable

5

. SCREW, PAN HEAD

98580-04020-00

Unavailable

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

NUT, FLANGE(7NB)

95780-06500-00

$2.60

8

R FLSHR LITE ASSEMBLY

2H7-83330-70-00

Unavailable

9

. LENS, FLASHER

2H7-83312-00-00

Unavailable

10

. GASKET, FLSHR LENS

2H7-83313-00-00

Unavailable

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

. SCREW, PAN HEAD

98580-04020-00

Unavailable

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

NUT, FLANGE(7NB)

95780-06500-00

$2.60

15

STAY, FLASHER 1

2H7-83318-00-00

Unavailable

16

BLT, FLSHR STY FTNG

2H7-83325-00-00

Unavailable

17

DAMPER, FLASHER

1E6-83321-00-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-10172-00

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

NUT, HEXAGON

90170-10227-00

Unavailable

21

WIRE, EARTH LEAD 2

3FU-83364-00-00

Unavailable
