FINAL DRIVE GEAR-DRIVE SHAFT

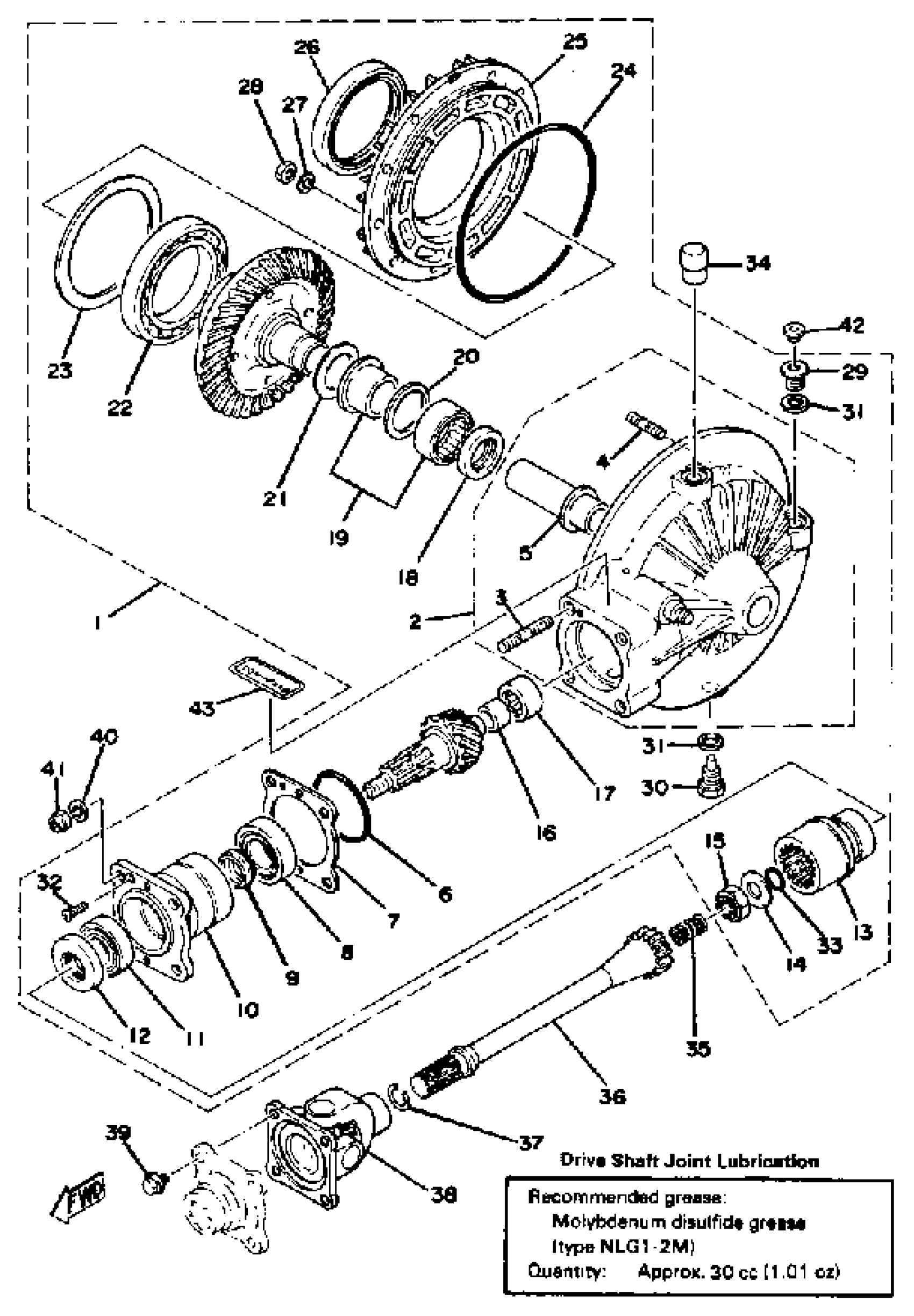

Yamaha XS1100E (XS1100) 1978 FINAL DRIVE GEAR-DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASSEMBLY
(2H7-46101-N0-00)
Unavailable
2
HOUSING, DR SHAFT
(2H7-46150-00-00)
Unavailable
3
BOLT, STUD
(90116-10248-00)
Unavailable
4
.. BOLT, STUD
90116-08247-00
Unavailable
5
.. COLLAR, GUIDE
1J7-46153-Y0-00
Unavailable
7
. SHIM (035T)
1J7-46127-Y0-30
Unavailable
7
SHIM,DRIVE PISTON
1J7-46127-Y0-40
Unavailable
7
SHIM,DRIVE PISTON
1J7-46127-Y0-40
Unavailable
7
. SHIM (050T)
1J7-46127-Y0-50
Unavailable
8
. BEARING, TAPRD #32
93332-00027-00
Unavailable
10
. HOUSING, BEARING
2H7-46124-01-00
Unavailable
12
. OIL SEAL
93101-38086-00
Unavailable
13
. COUPLING, GEAR
2H7-46123-00-00
Unavailable
14
. WASHER, PLATE
90201-14664-00
Unavailable
15
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
16
RACE, INNER
2H7-46122-00-00
Unavailable
17
BEARING ASSY
2H7-46102-00-00
Unavailable
18
OIL SEAL (30X42X7-1J7)
93101-30084-00
Unavailable
19
. BEARING ASSEMBLY
1J7-46106-N0-00
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-18
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-19
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-20
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-21
Unavailable
21
SHIM, THRUST
(1J7-46119-Y0-10)
Unavailable
21
SHIM, THRUST
(1J7-46119-Y0-20)
Unavailable
22
BRG,R-B 16014C2 110MM 433G KY
93316-01403-00
Unavailable
23
SHIM, RING GEAR (0.30T)
1J7-46117-Y0-30
Unavailable
23
. SHIM, RING GEAR (035T)
1J7-46117-Y0-35
Unavailable
23
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
Unavailable
23
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
Unavailable
24
O-RING (1J7)
93211-44348-00
Unavailable
25
HOUSING, BEARING
(2H7-46152-00-00)
Unavailable
26
OIL SEAL (4H7)
93102-70167-00
Unavailable
27
WASHER(6TA)
92907-08700-00
Unavailable
28
NUT(6L2)
95333-08600-00
Unavailable
29
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
30
PLUG, STRAIGHT SCREW
90340-14004-00
Unavailable
31
GASKET
214-11198-01-00
Unavailable
32
. SCREW, FLAT HEAD (98701-05018-00)
98703-05018-00
Unavailable
33
O-RING (2H7)
93210-14359-00
Unavailable
34
BREATHER COMP.
2H7-17590-00-00
Unavailable
35
SPRING, COMPRESSION (2H7)
90501-16491-00
Unavailable
36
SHAFT, DRIVE
(2H7-46172-00-00)
Unavailable
37
CLIP
90468-12088-00
Unavailable
38
CROSS JOINT
2H7-46180-00-00
Unavailable
39
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
40
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
41
NUT, U
95614-10100-00
Unavailable
42
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
43
LABEL, OIL CAUTION
1J7-46181-11-00
Unavailable
