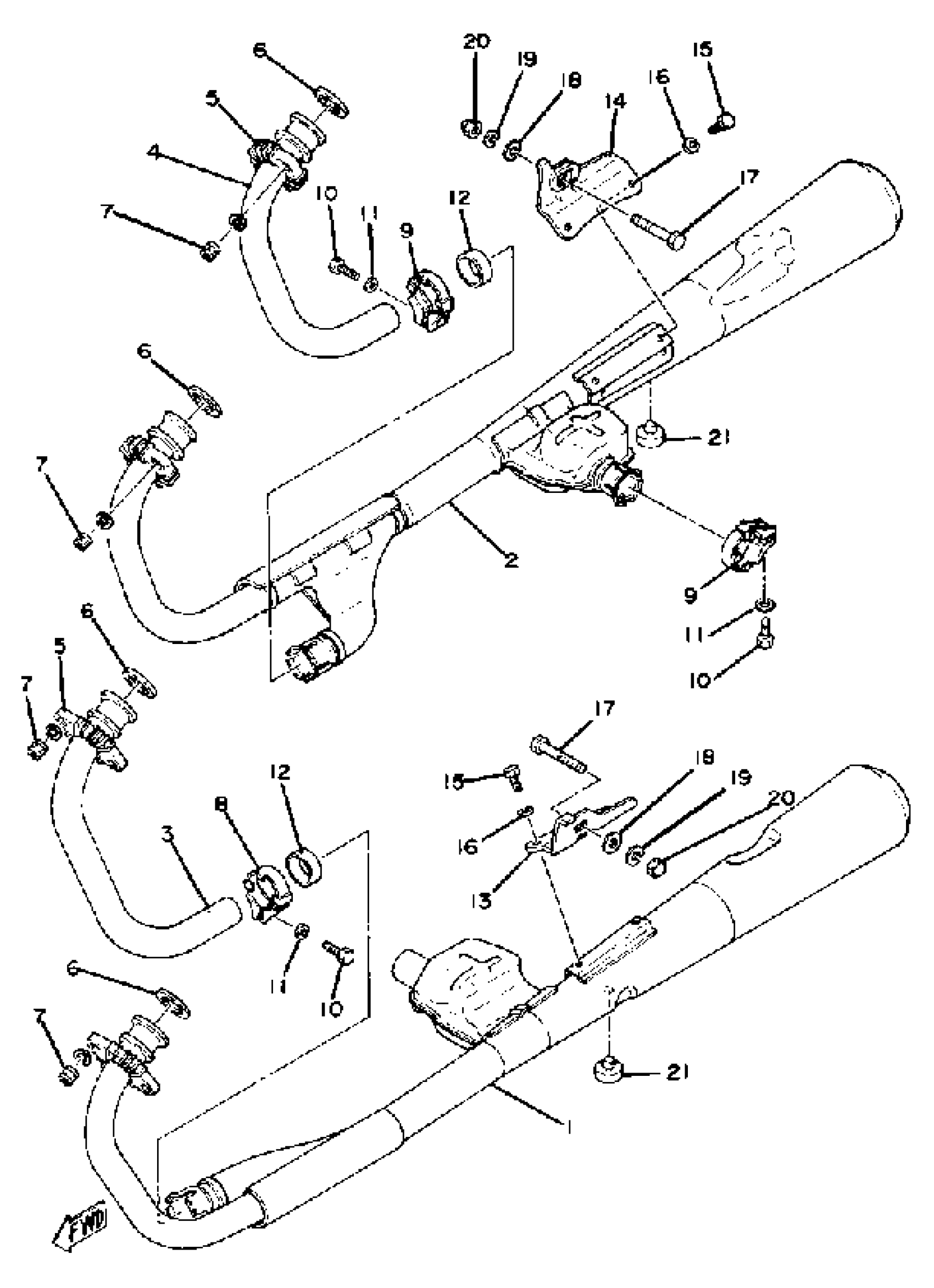

Yamaha XS1100E (XS1100) 1978 EXHAUST Diagram
#
Description
Price
1
. MUFFLER 1
2H7-W1471-80-00
Unavailable
1
MUFFLER 2H7 LH (2H7-14710-00)
99999-01051-00
Unavailable
2
. MUFFLER 1
2H7-W1471-80-00
Unavailable
2
MUFFLER 2H7 RH
(99999-01052-00)
Unavailable
3
PIPE, EXHAUST R
2H7-14621-02-00
Unavailable
3
PIPE, EXHAUST 2 2H7 (2H7-14621-00)
99999-01048-00
Unavailable
4
PIPE, EXHAUST 3
2H7-14631-02-00
Unavailable
4
PIPE, EXHAUST 3 2H7 (2H7-14631-00)
99999-01050-00
Unavailable
5
NUT, RING
2H7-14612-00-00
Unavailable
8
BAND, silence 4
26H-14797-00-00
Unavailable
9
BAND, silencer 4
26H-14796-00-00
Unavailable
10
BOLT (682)
97013-08025-00
Unavailable
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
GASKET, EXHAUST 4
3JJ-14653-00-00
Unavailable
13
STAY, MUFFLER 1
(2H7-14771-00-00)
Unavailable
14
STAY, MUFFLER 2
(2H7-14781-00-00)
Unavailable
15
BOLT, HEXAGON
97013-08016-00
Unavailable
16
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
17
BOLT (21V)
90101-10568-00
Unavailable
18
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
19
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
20
NUT, CAP (371)
90176-10009-00
Unavailable
21
STOPPER, MAIN STAND
371-27114-00-00
Unavailable
