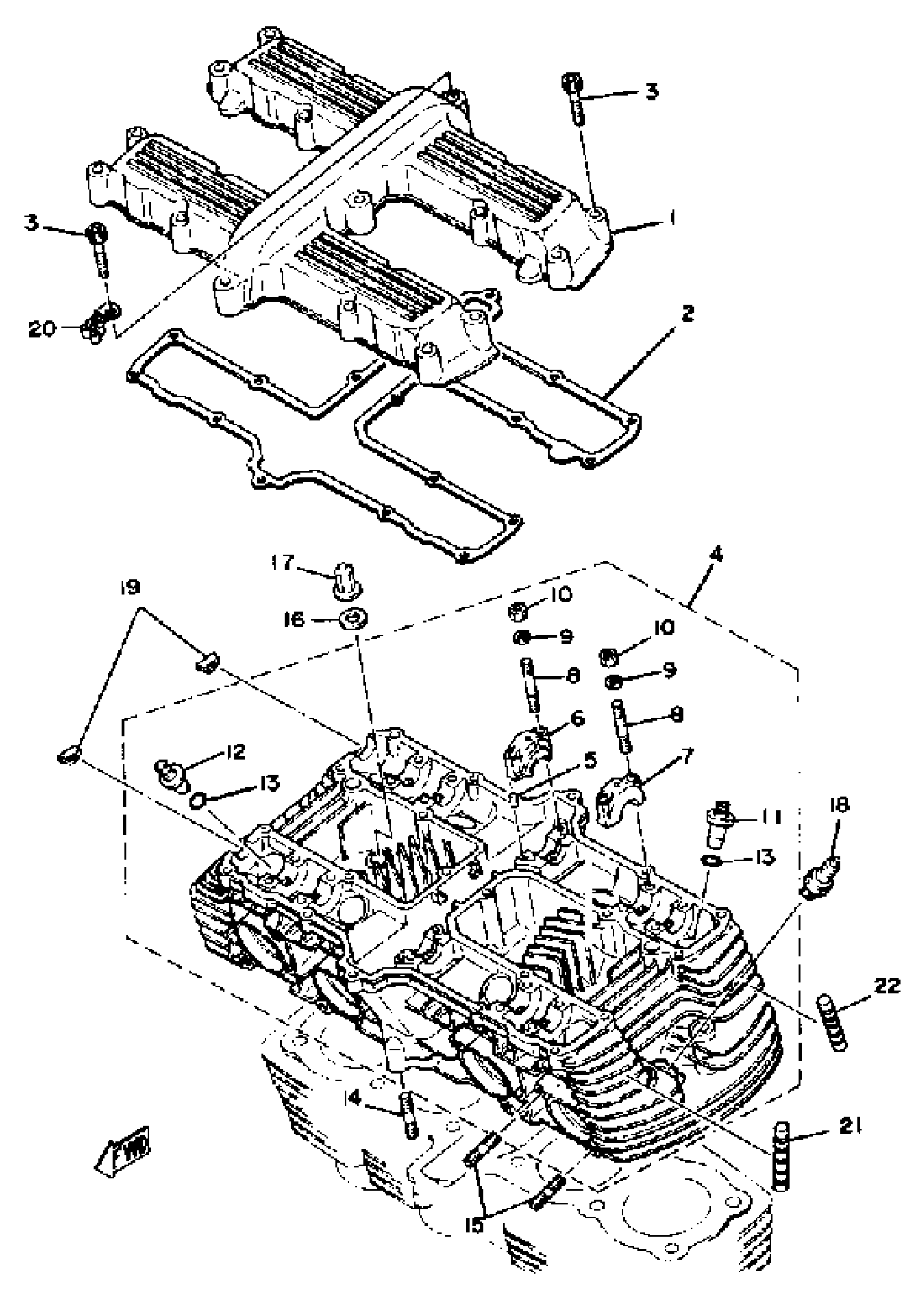

Yamaha XS1100E (XS1100) 1978 CYLINDER HEAD COVER-CYLINDER HEAD Diagram

#

Description
Price

1

COVER, CYLINDER.HEAD 1

2H7-11191-00-00

Unavailable

2

GASKET, CYLINDER HEAD COVER

2H7-11193-10-00

Unavailable

3

BOLT, SOCKET

91314-06035-00

$8.49

4

CYLINDER HEAD ASSEMBLY

(2H7-11110-00-00)

Unavailable

5

. PIN, DOWEL

93603-09004-00

Unavailable

6

. CAP, CAMSHAFT 1

1J7-12173-10-00

Unavailable

7

. CAP, CAMSHAFT 2

1J7-12183-10-00

Unavailable

8

GASKET KIT XS1100

(3H5-W0001-90-00)

Unavailable

8

BOLT, STUD (1J7)

90116-06228-00

$3.55

9

WASHER, PLATE (371)

90201-06431-00

$5.60

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

. GDE, INTK VLV 1 O/S

1J7-11133-10-00

Unavailable

12

. GDE, EXST VLV 1 O/S

1J7-11134-10-00

Unavailable

13

O-RING (1J7)

93210-11313-00

$8.49

14

BOLT, STUD

90116-08161-00

Unavailable

15

BOLT, STUD 3

95617-08625-00

Unavailable

16

WASHER PLATE 256111740000

90201-10131-00

Unavailable

17

NUT, CROWN(2GG)

90176-10075-00

Unavailable

18

GASKET KIT XS1100

(3H5-W0001-90-00)

Unavailable

18

BPR6ES NGK SPLUG 4PK

BPR-6ES00-00-00

Unavailable

19

PLUG

1J7-11138-00-00

Unavailable

20

CLAMP

90465-10129-00

Unavailable

21

ABSORBER 1

2H7-11161-00-00

Unavailable

22

ABSORBER 2

(2H7-11162-00-00)

Unavailable
