Description

Price

1

COVER, OIL PUMP

2H7-15416-02-00

Unavailable

2

GASKET,O/PMP CVR1

2H7-15456-10-00

Unavailable

3

BOLT,SOCKET HEAD

91314-06025-00

$8.49

4

COVER, CRANKCASE L

2H7-15411-00-00

Unavailable

5

GASKET, CRCS CVR 2

2H7-15461-10-00

Unavailable

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

BOLT,SOCKET HEAD

91314-06025-00

$8.49

8

COVER, GENERATOR

2H7-15415-00-00

Unavailable

9

GASKET 1

2H7-15455-10-00

Unavailable

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

BOLT, SOCKET

91314-06035-00

$8.49

12

BOLT,SOCKET HEAD

91314-06025-00

$8.49

13

COVER, CRANKCASE 3

2H7-15431-00-00

Unavailable

14

GASKET, CRANKCASE COVER (R.H)

2H7-15451-10-00

$30.99

15

PIN, DOWEL(3XW)

91808-16023-00

$8.49

16

BOLT, SOCKET

91314-06035-00

$8.49

17

BOLT,SOCKET HEAD

91314-06025-00

$8.49

18

COVER, CAP

2H7-15417-00-00

Unavailable

19

SCREW, OVAL HEAD

98603-06018-00

Unavailable

20

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

21

PLUG, OIL

2H7-15363-00-00

Unavailable

22

O-RING(1KT)

93210-27778-00

Unavailable

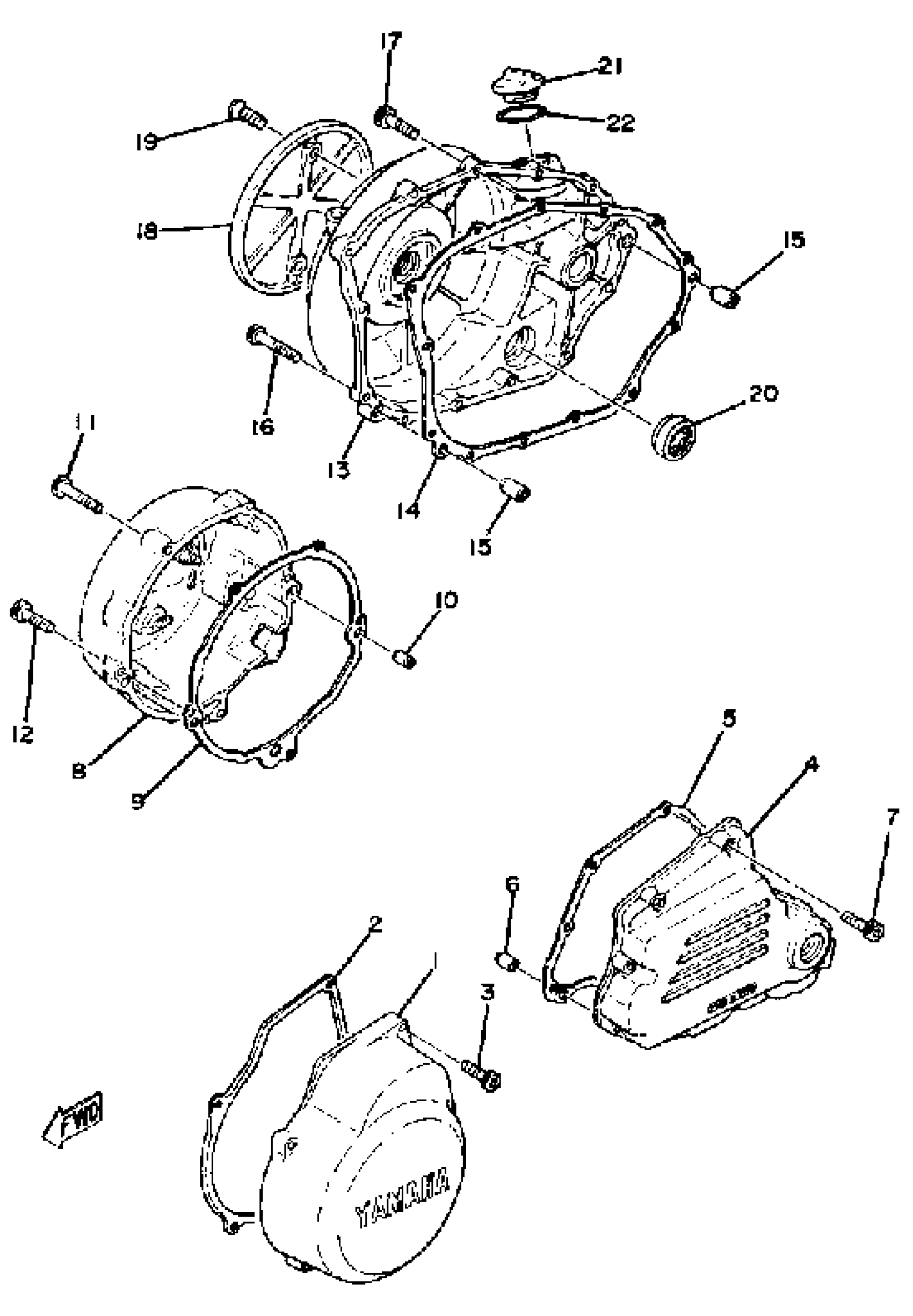

Yamaha XS1100E (XS1100) 1978 CRANKCASE COVER Diagram

COVER, OIL PUMP

GASKET,O/PMP CVR1

BOLT,SOCKET HEAD

COVER, CRANKCASE L

GASKET, CRCS CVR 2

PIN, DOWEL(3XW)

BOLT,SOCKET HEAD

COVER, GENERATOR

GASKET 1

PIN, DOWEL(3XW)

BOLT, SOCKET

BOLT,SOCKET HEAD

COVER, CRANKCASE 3

GASKET, CRANKCASE COVER (R.H)

PIN, DOWEL(3XW)

BOLT, SOCKET

BOLT,SOCKET HEAD

COVER, CAP

SCREW, OVAL HEAD

GAUGE, LEVEL

PLUG, OIL

O-RING(1KT)
